Backlit LCD Display Din Rail Single Phase Electronic kWh meter with Pulse Output

  • Backlit LCD Display Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Backlit LCD Display Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Backlit LCD Display Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Backlit LCD Display Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Backlit LCD Display Din Rail Single Phase Electronic kWh meter with Pulse Output
  • Backlit LCD Display Din Rail Single Phase Electronic kWh meter with Pulse Output

SDM120-DB

Backlit LCD Display Din Rail Single Phase Electronic kWh meter with Pulse Output

  • Active Energy Measured
  • LCD display with backlit
  • Pulse Output
  • Max. 45A Direct Load
  • 1 Module 18mm Width
  • 1P2W

SDM120-A / D / DB

SINGLE PHASE TWO WIRE KWH METER

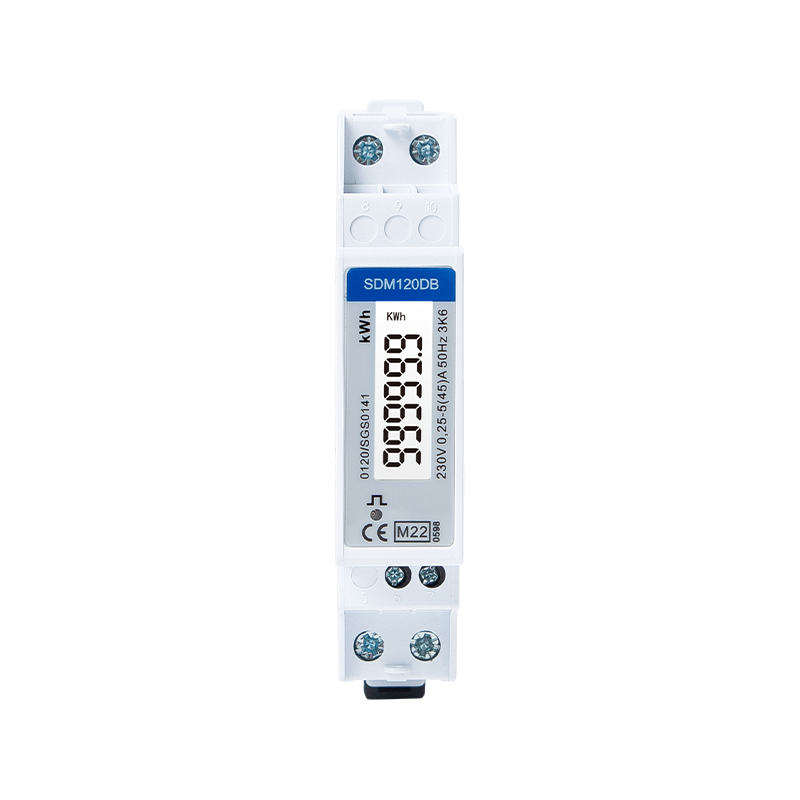

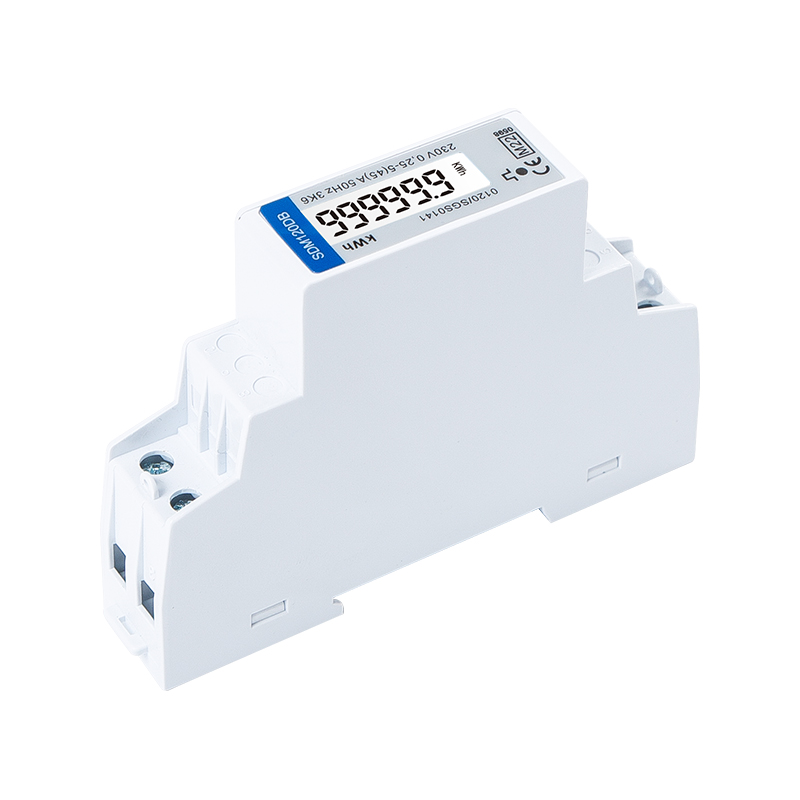

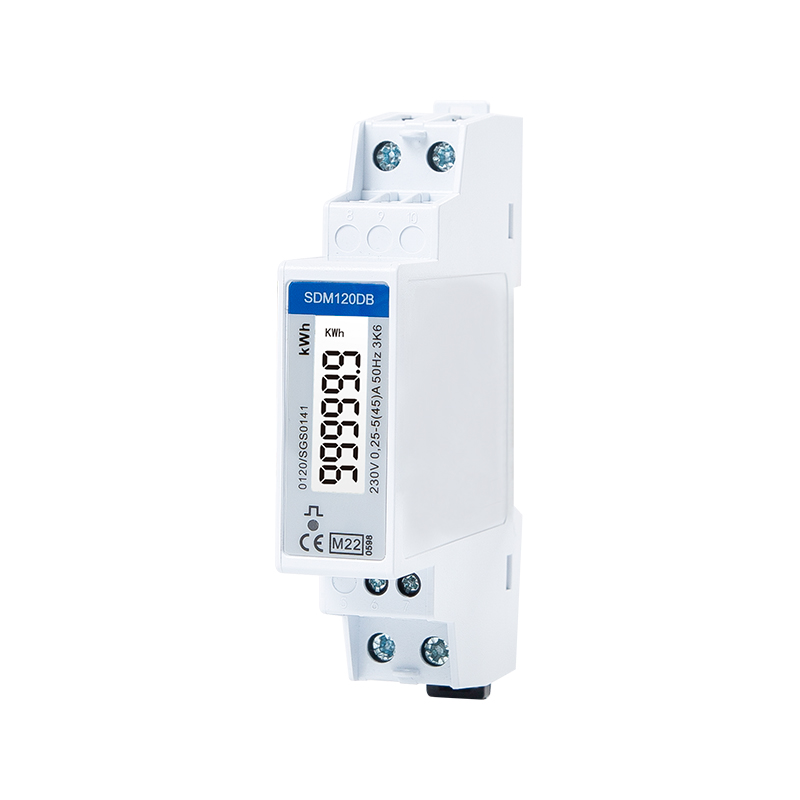

The SDM120-DB is a Din Rail Single Phase Electronic kWh meter with Pulse Output and Backlit LCD Display. It is a 1-(1 module 18mm width) kWh meter with Max.45A direct input. It also provides an uni-directional (anti-reverse) measurement version, which is widthly used in solar generation energy measurement.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Energy

IEC62053-21 Class 1/0.5
EN50470-3:2022 Class B/C



Input & Output

Input

Current

Rated Current (Ib)

5A

Max Current (Imax.)

45A

Min Current (Imin.)

0.15A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V

Operation Voltage

80% ~120% of Un

Output

SDM120-A/D/DB

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

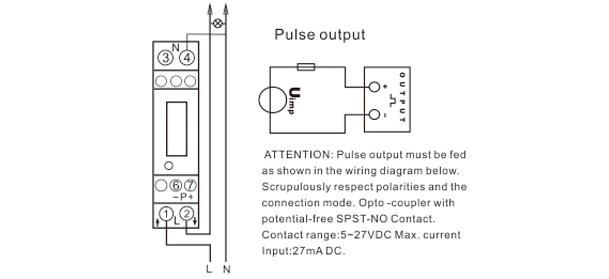

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
