SDM320E

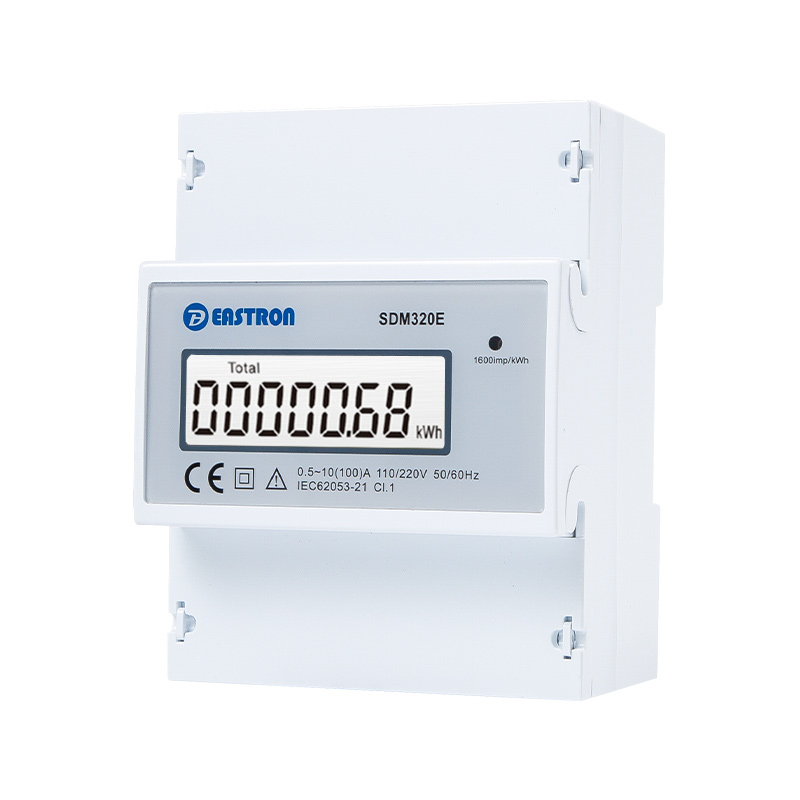

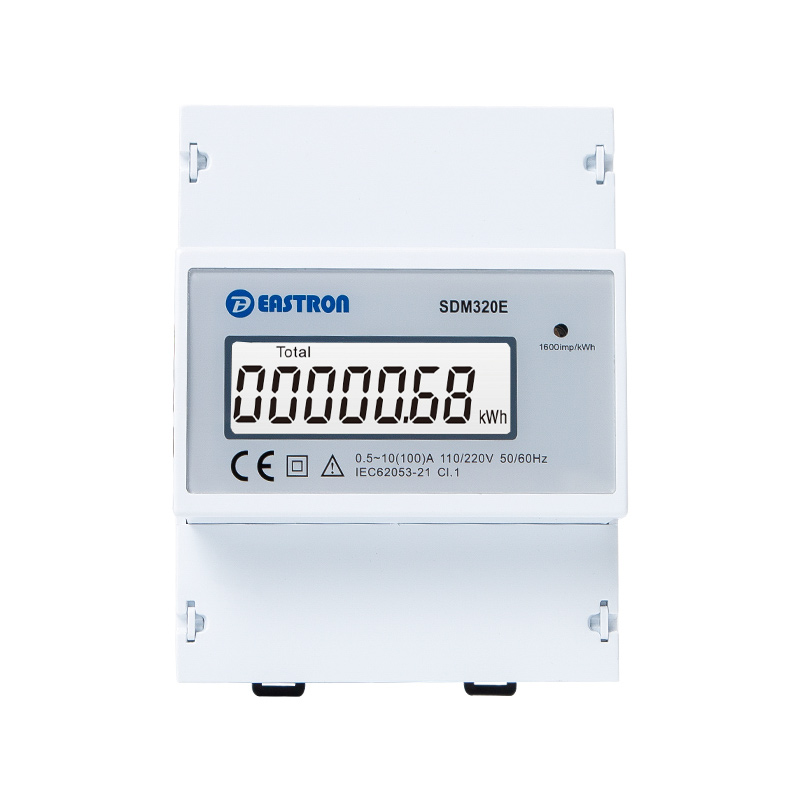

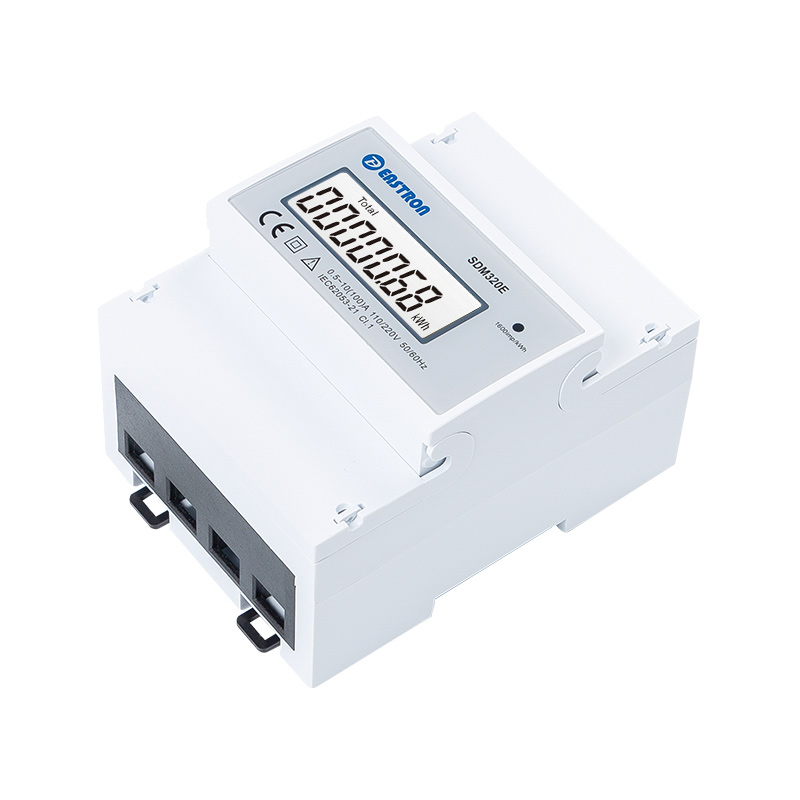

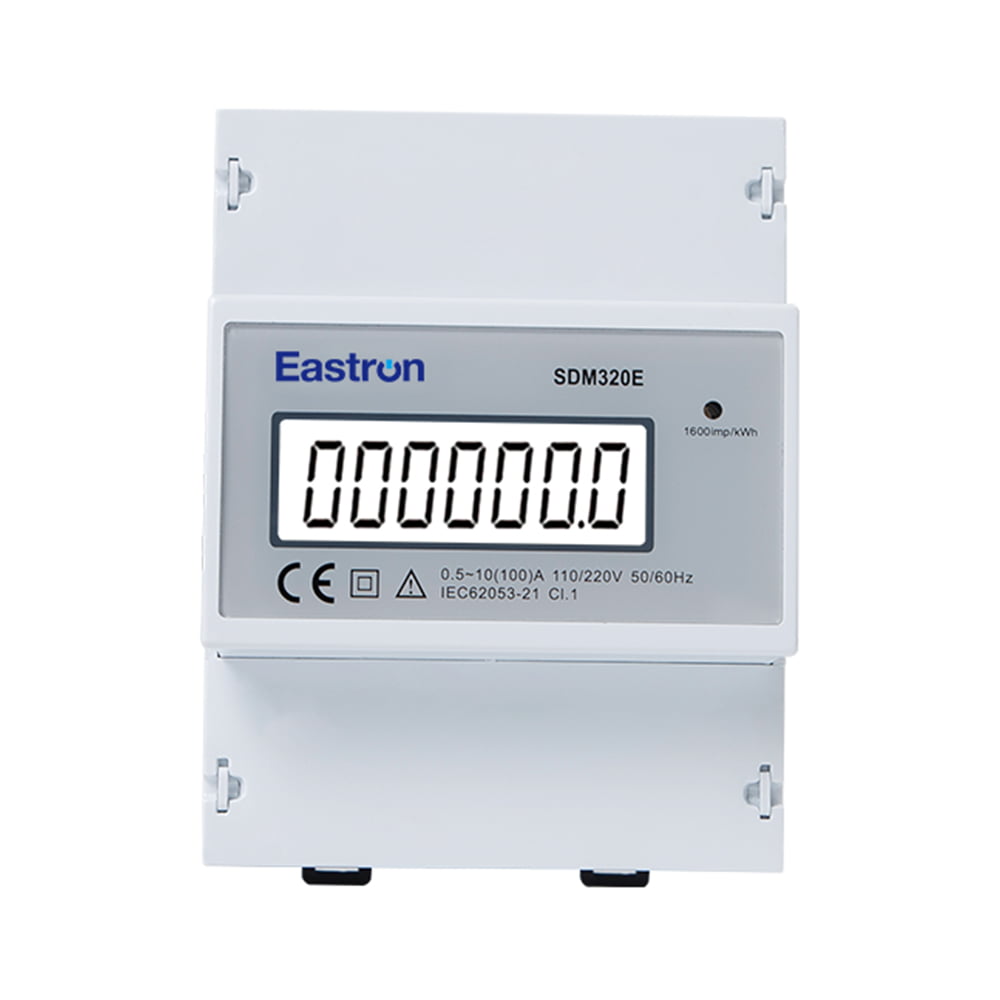

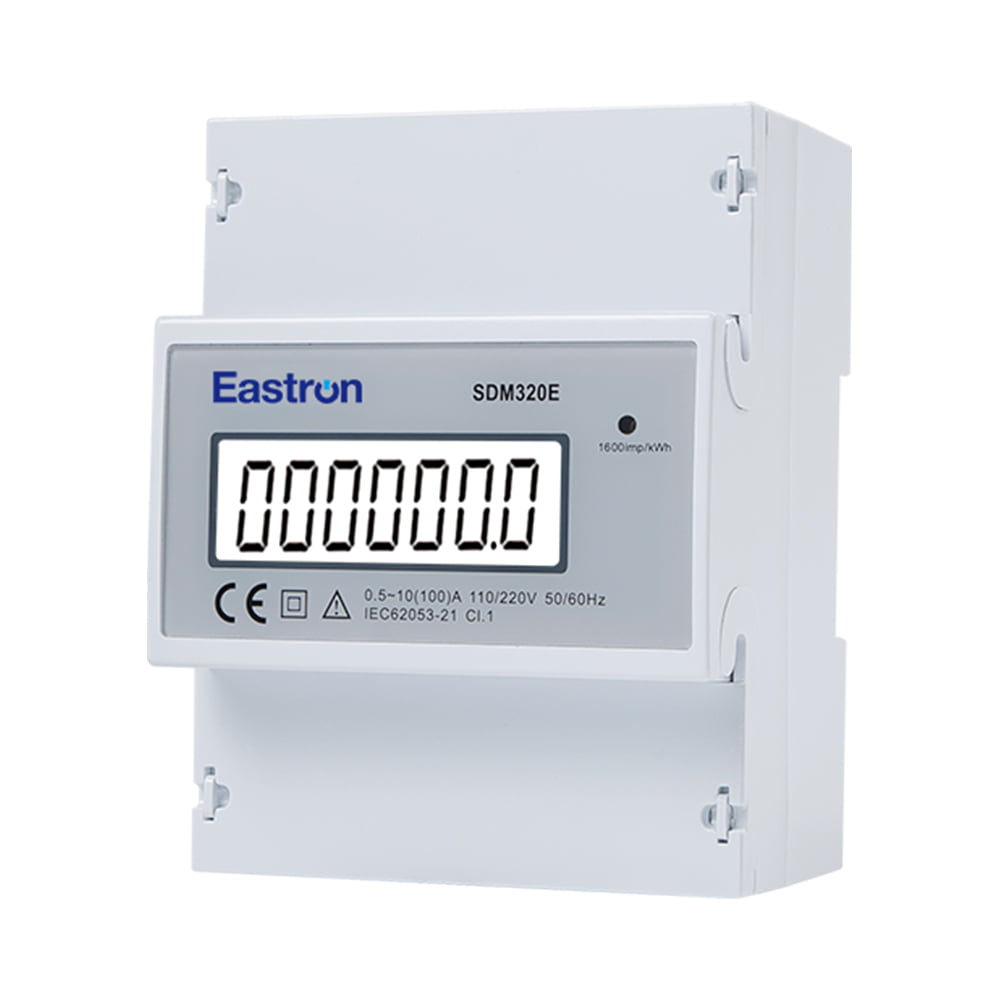

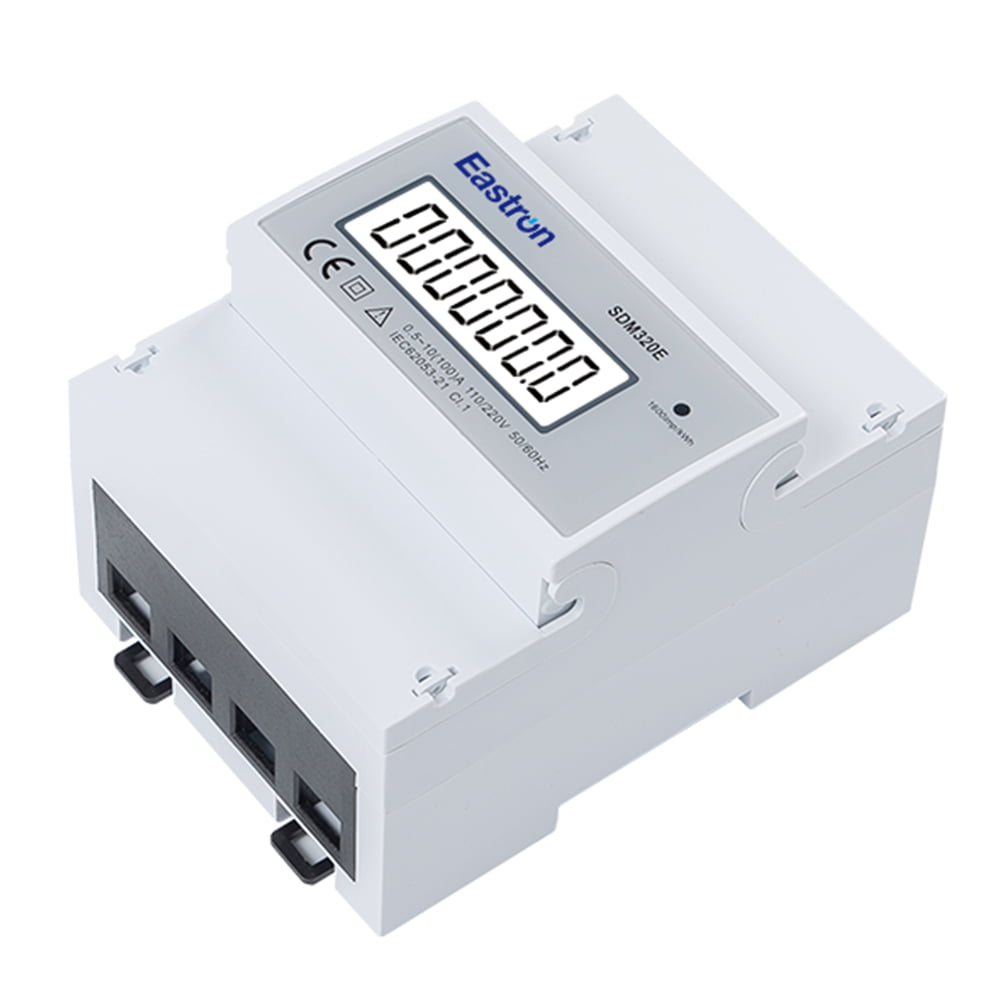

2P+N Din Rail Single Phase Electronic kWh meter with Pulse Output

  • Max. 100A Direct Load
  • 110V/230V voltage input
  • 1P3W network
  • 4 Module Width
Contact Us Inquiry PDF Download

400-996-9296

[email protected]

SDM320E is 2P+N rail single phase electronic kWh meter with pulse output. It is a 4-size meter which measures active energy (kWh) and support 110/230V voltage input.
Its good performance and wiring method (2 Line +Neutral)  made it a good and economical choice for the energy measurement solutions in American market.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (2P+N)

Measurement Accuracy

Energy

IEC 62053-21 Class 1.0



Input & Output

Input

Current



Rated Current (Ib)

10A

Max Current (Imax.)

100A

Min Current (Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

120/220V

Output

SDM320E

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

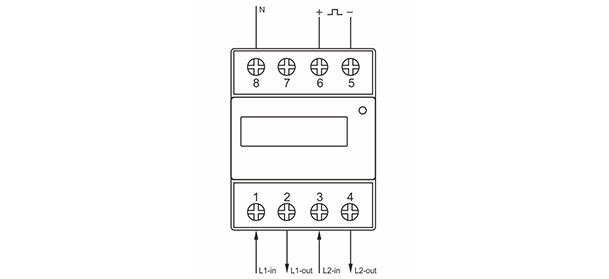

Wiring diagram

Wiring and Dimension [mm:]

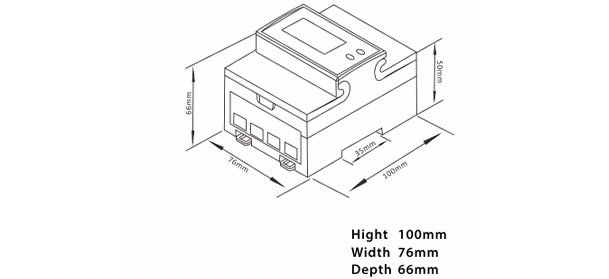

Dimensions
