ESCT-RC Series

Flexible Rogowski Coli Current Sensor

High Linearity from 1A to 100kA.
Wide dynamic range
Very useful with large size or awkward shaped conductors or in places with limited access
Not damaged by large overloads
Measurement uniformity at any position of the conductor inside the coil
Excellent degree of rejection to the external current conductor
Totally shielded

400-996-9296

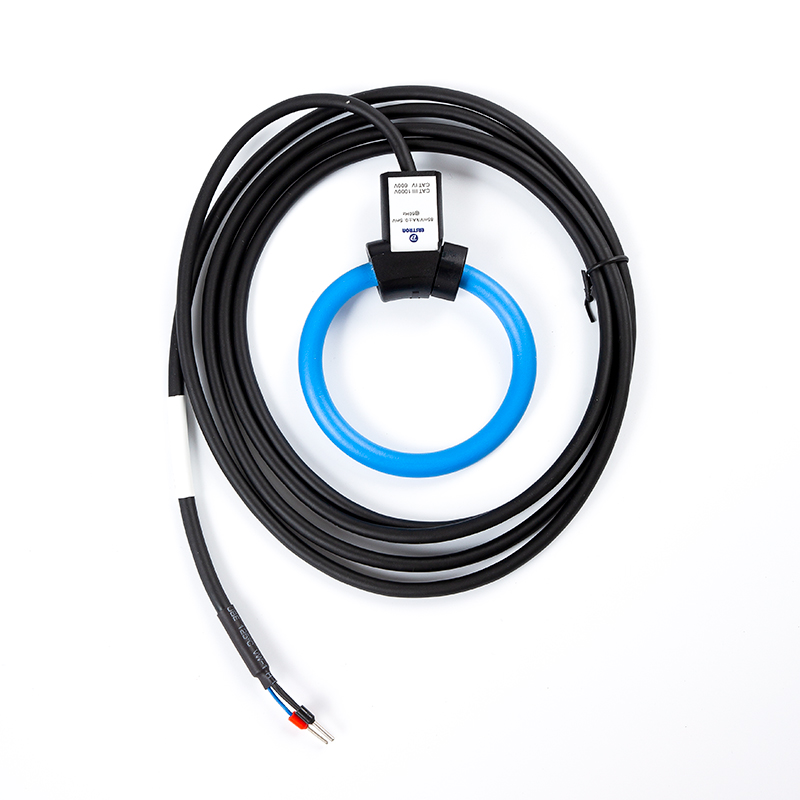

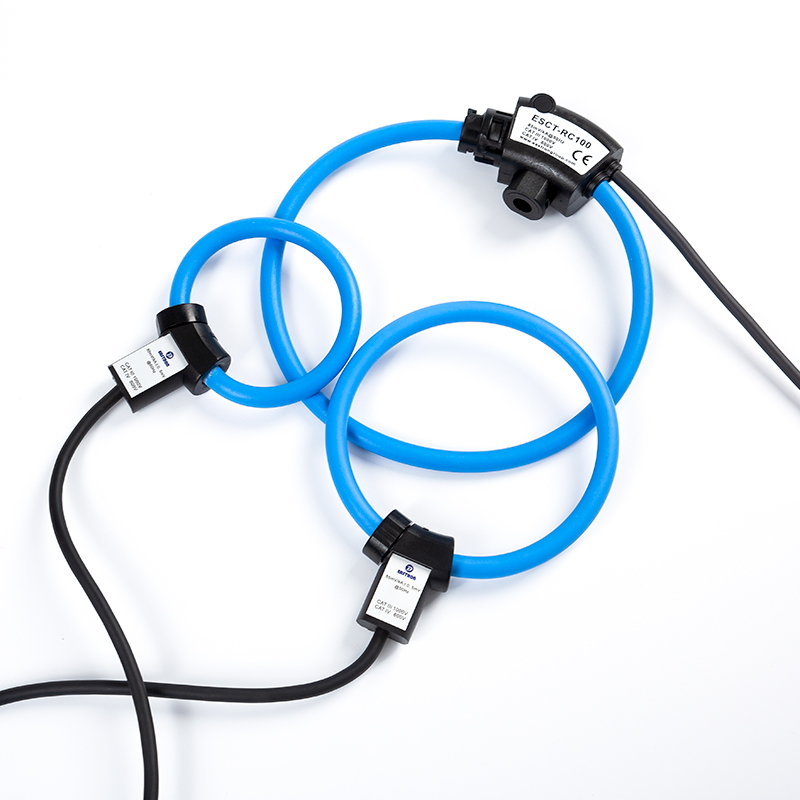

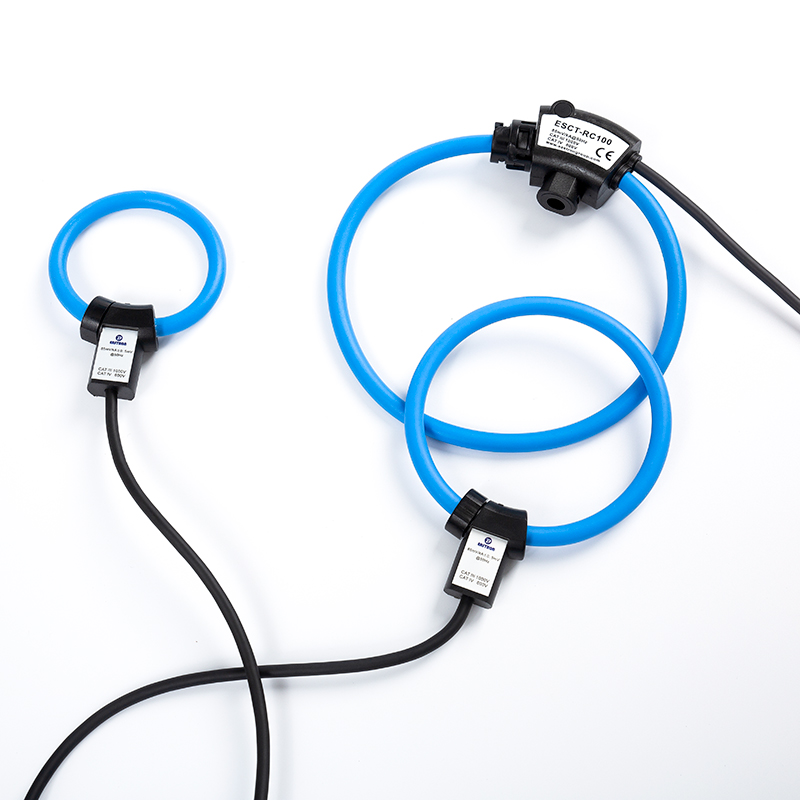

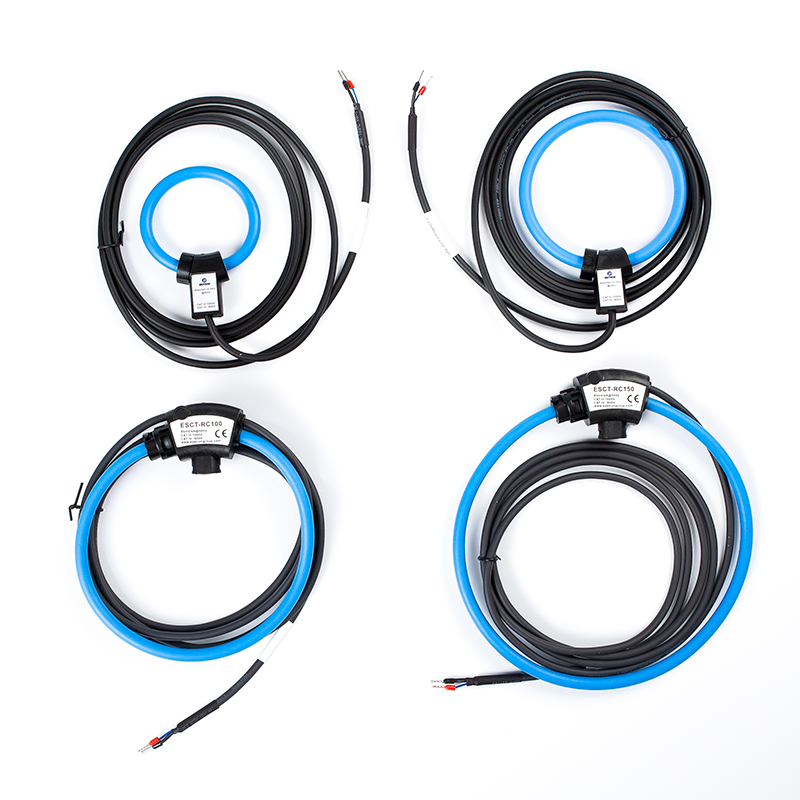

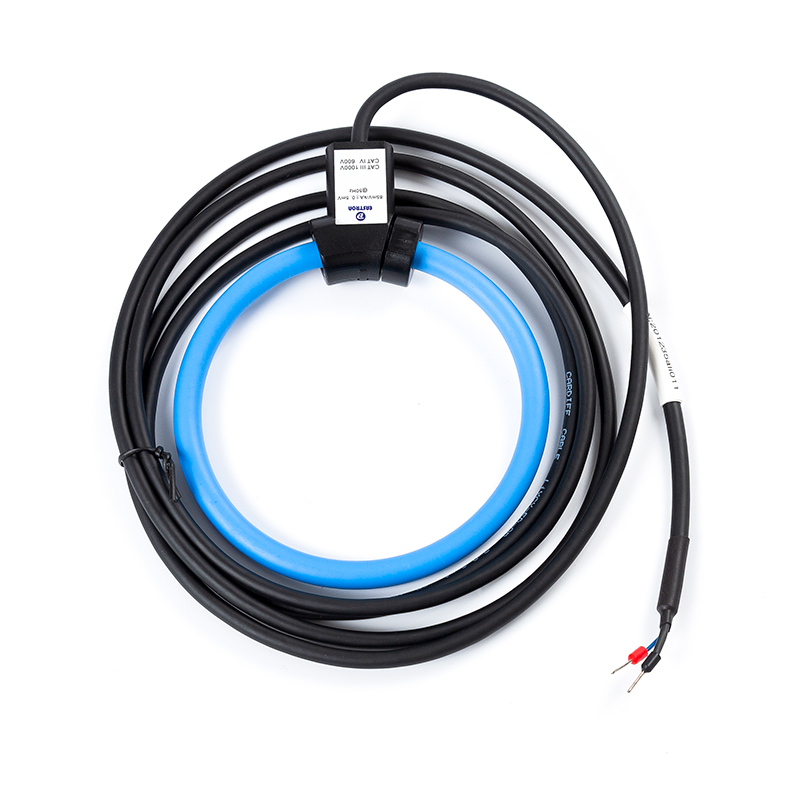

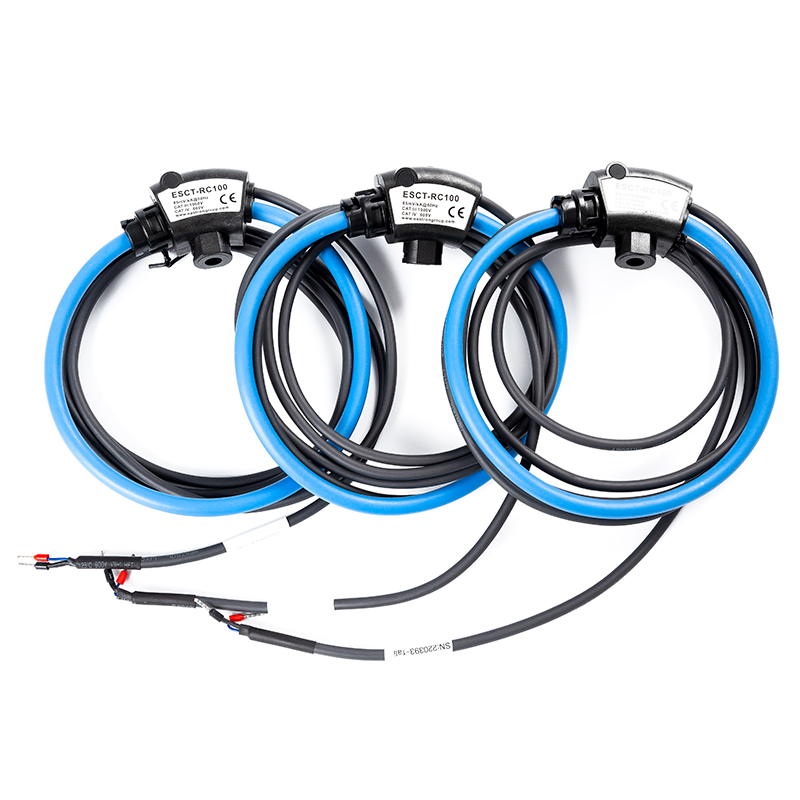

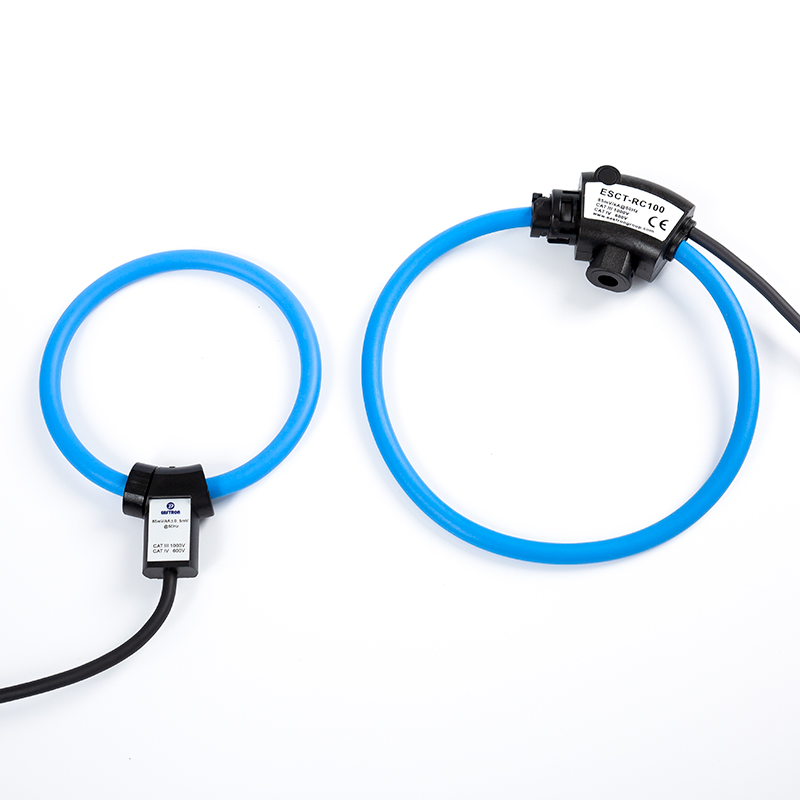

ESCT-RC Series are flexible current transducers based on Rogowski principle, particularly suitable for measurement in combination with portable devices. ESCT-RC coils are available in different sizes and can be supplied according to customer's design, therefore they can be used in all those applications in which traditional transducers (Current Sensors) are not fitting due to its size and/or weight.

ESCT-RC Series provide with a shield against the influence of external magnetic fields, therefore it grants a stable measurement from low currents to hundreds of kA.

Model	Rated Current	Rated Output	Type
ESCT-RC16	100A	50mV/kA	C
ESCT-RC24	300A	50mV/kA	C
ESCT-RC36	600A	50mV/kA	C
ESCT-RC45	500A	85mV/kA	D
ESCT-RC60	500A	85mV/kA	A

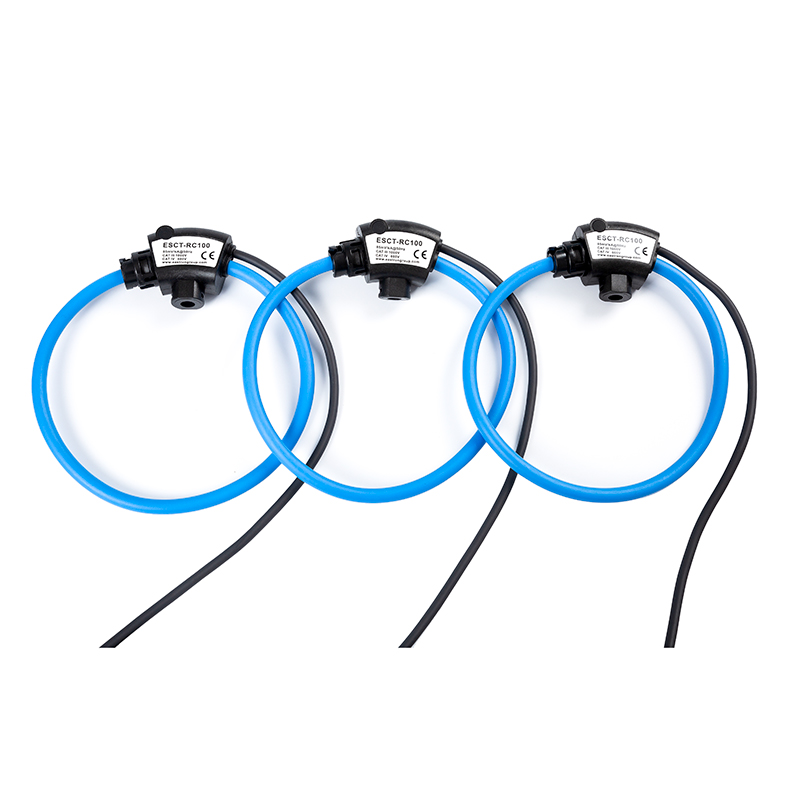

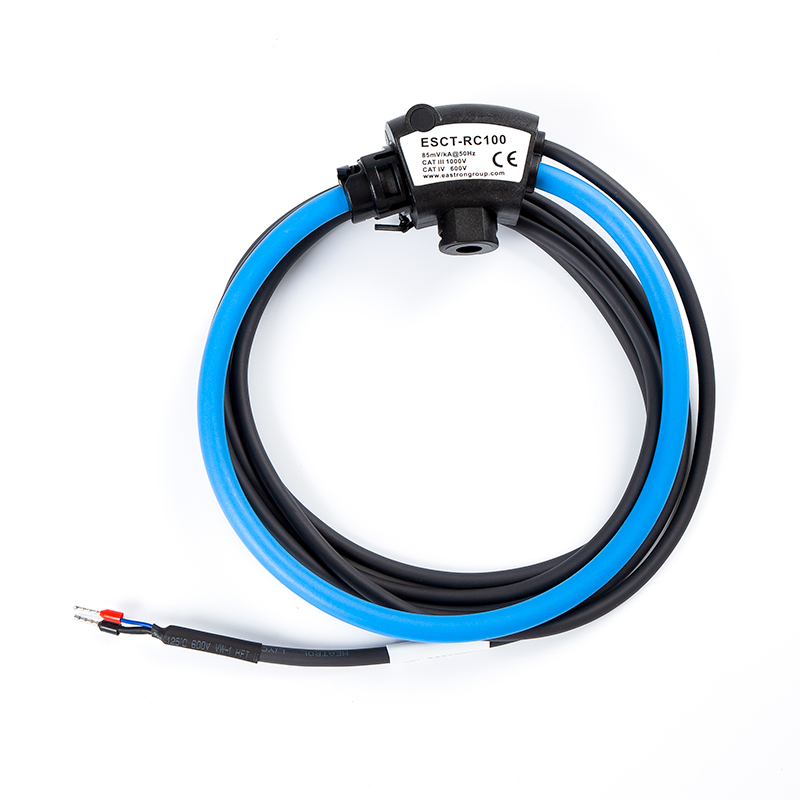

ESCT-RC100	1000A	85mV/kA	B
ESCT-RC105	1500A	85mV/kA	A

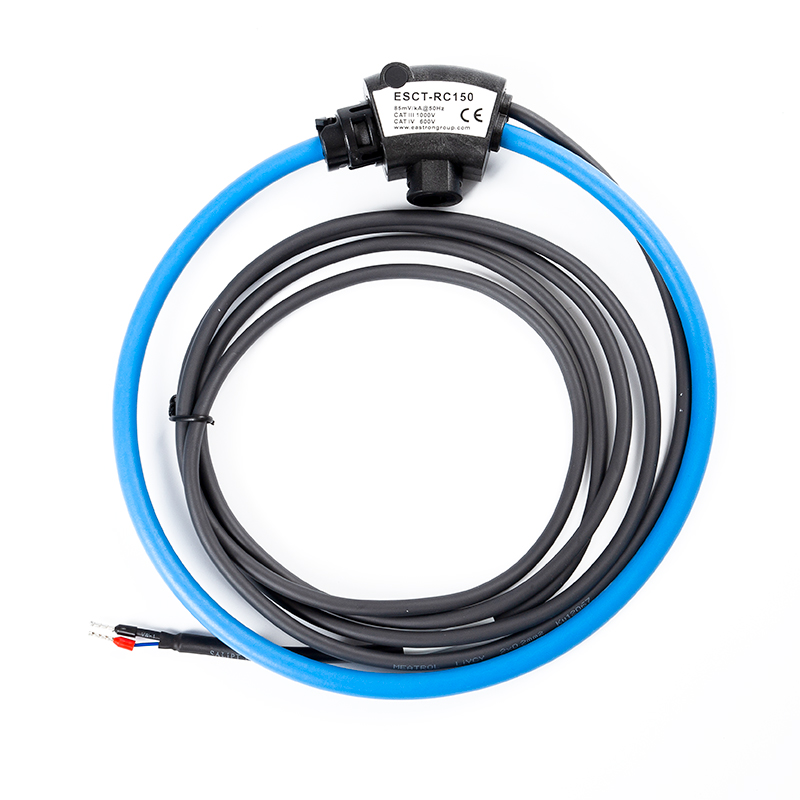

ESCT-RC150	3000A	85mV/kA	B
ESCT-RC200	6000A	85mV/kA	B
ESCT-RC240	10000A	85mV/kA	A
