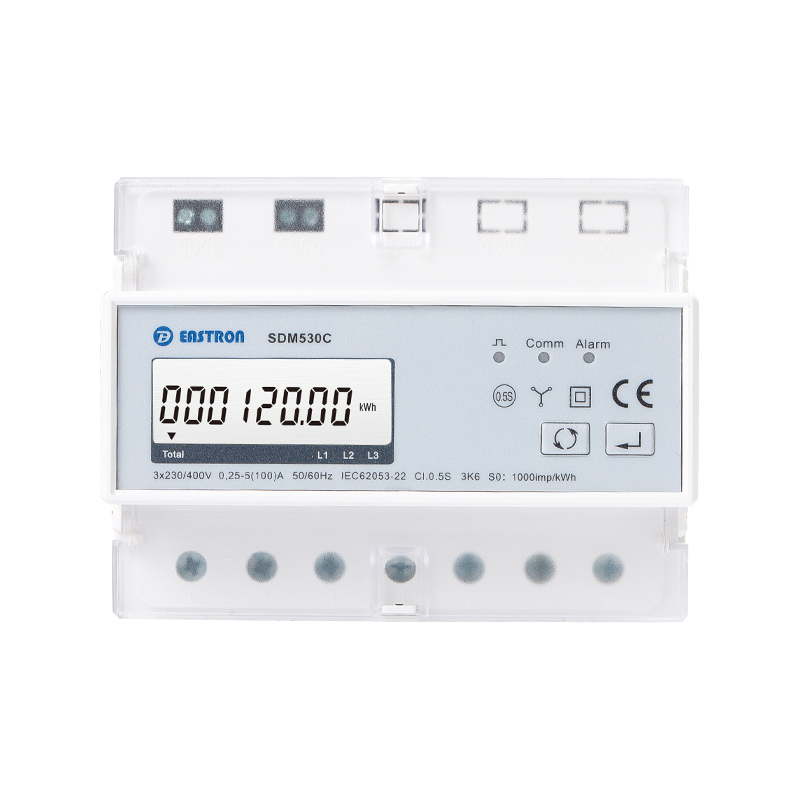

SDM530C

Three Phase Din Rail Multi-function Energy Meter for AMR/AMI

  • Built-in Relay for Remote Control
  • Multi-parameter measurement
  • 26 Alarm values
  • Class 0.5s High Auucracy
  • Output for Energy Pulse Emission
  • RS485 Modbus Communication
  • Multi-tariff version available

SDM530C is a three phase din rail remote control multi-function energy meter. It measures multi-parameters like current, voltage, power, frequency, import and export energy, etc. An RS485 Modbus communication is provided for remote setting and reading.

The meter also equipped with a built-in relay. The user can turn on/off the power remotely through Modbus communication. And when there is alarm like over-current or voltage, etc. The realy will also open automatically. The relay of each phase can be controlled together or separately.

The model SDM530C is widely used in some applications which requires remote power control, for example, the post-pay systems.

Electrical Characteristics

Type of Measurement

RMS on three phase AC system (3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5s

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

Rated Current

5A

Max Current

100A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V

Operational Voltage

80%~120% of Un

SDM530C/Y

Pulse Output + RS485 Modbus



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Baud Rate

1200bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

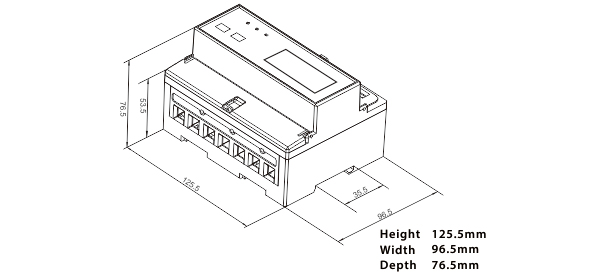

Dimensions
