DCM6-200

PTB/Eichrecht Approved Smart DC Energy Meter for German Mess EV Regulation

Voltage up to 1000V
Max. current 200A
Charging Data recording
Charging Duration Monitoring
Signed and Encrypted Charging Data
Line loss energy measurement
PTB / Eichrecht Approved

400-996-9296

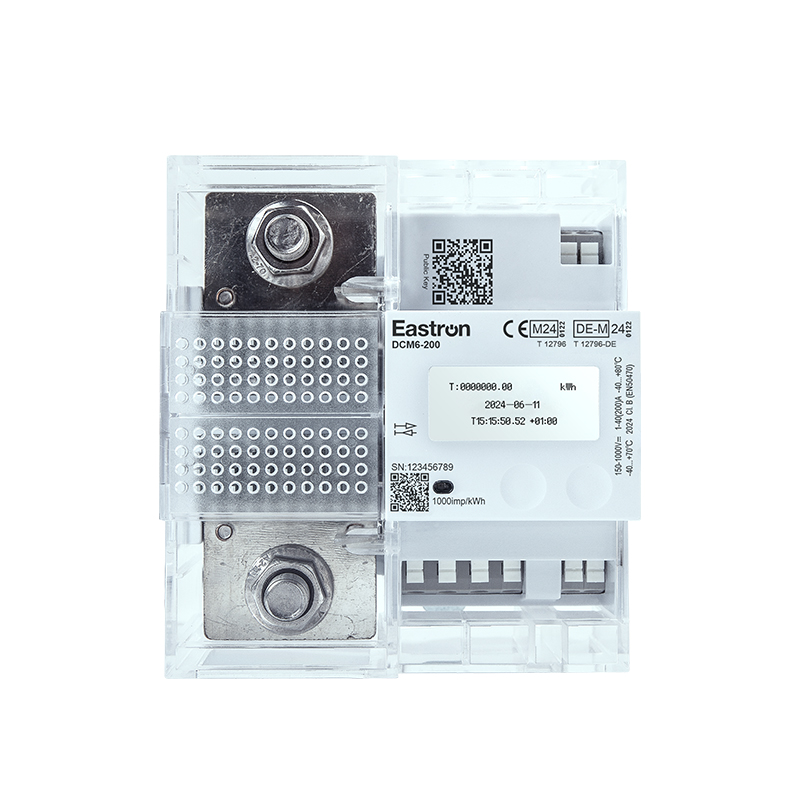

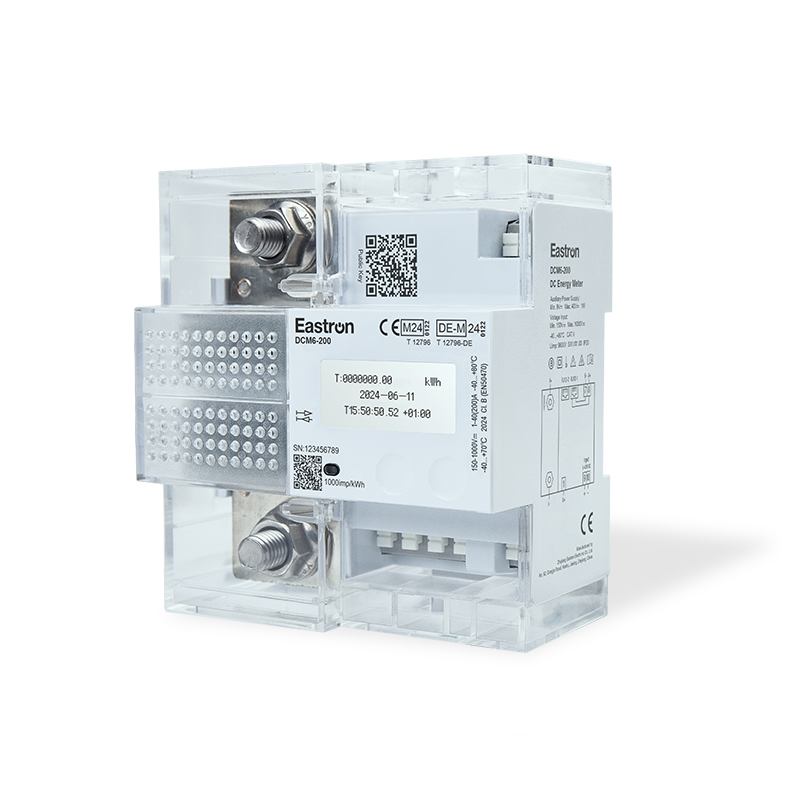

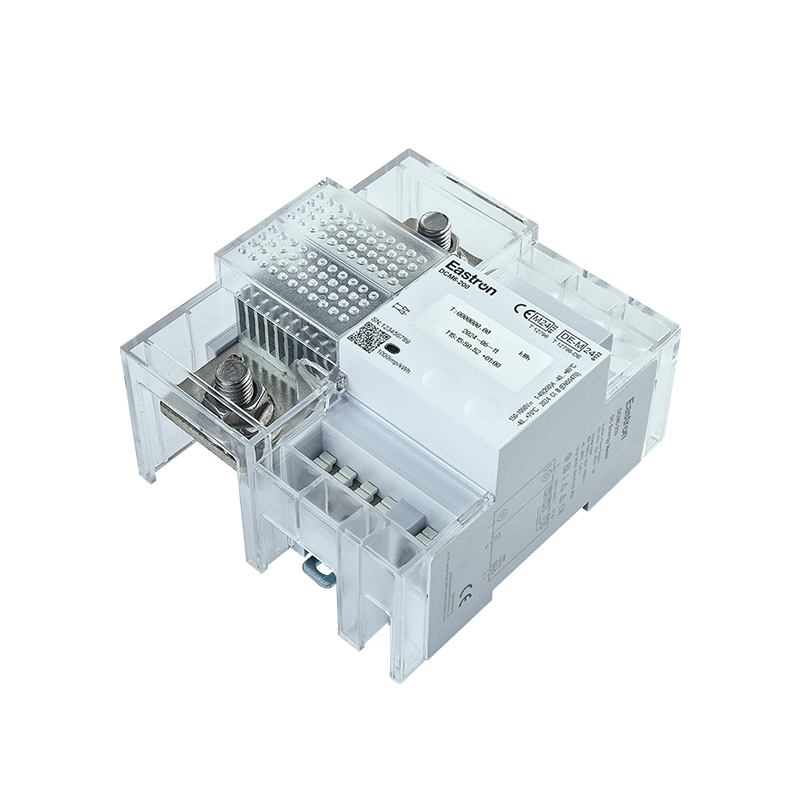

DCM6-200 belongs to the DCM6 Series. It is a PTB(Eichrecht) and MID approved DC energy meter designed for measurement within an EV Charger station. The meter support Max. 200A current load. It has a dedicated micro-controller for encryption function in order to comply with Eichrecht, the German Mess-EV regulation. Furthermore, all charging processes are stored within the internal data storage of the DC meter.

Another model in DCM6 Series is DCM6-650, which support Max. 650A current load.

Voltage
Umax	1000V DC
Umin	150V DC
Auxiliary power supply voltage	9-40V DC

Current
Ist (Starting current)	0.08A
Imin(Minimum current)	1A
Itr (Current)	4A
Iref (Normal current)	40A
Imax(Maximum current)	200A

Accuracy
Class	1

Display
LCD	Dot Matrix
Life Cycle	>12 Years

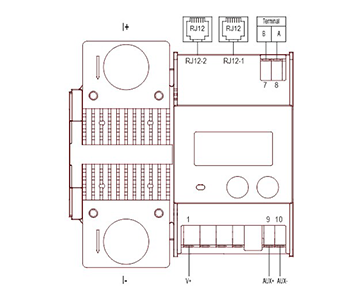

Serial Output
Type	2xRS485 (RTU)
Ports	2 xRJ12+1 plug-in terminal

RS485 interface
4800~115200bps(19200bps default) 8N1(Settable)
