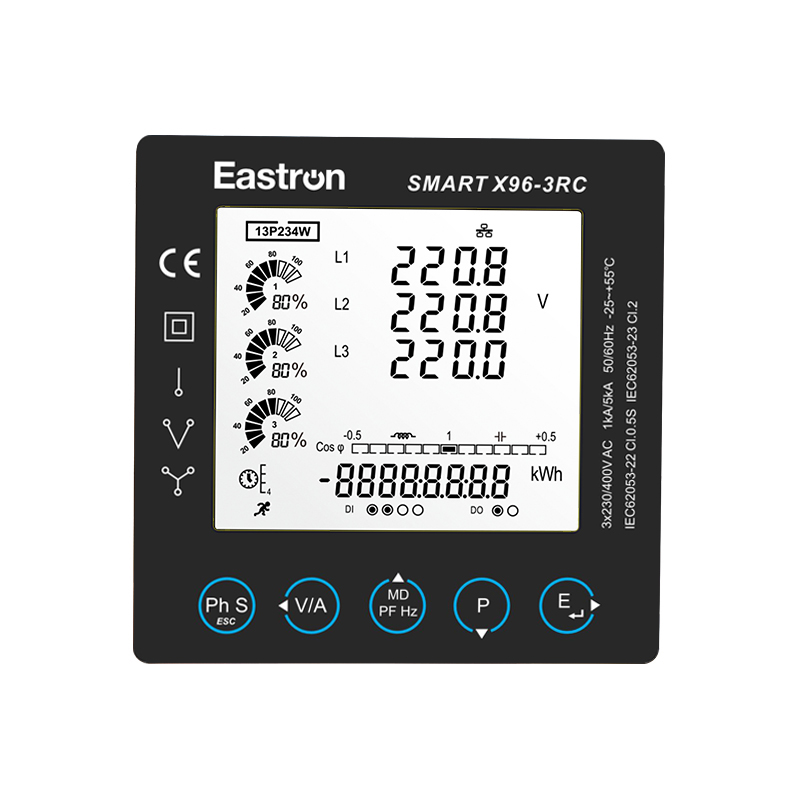

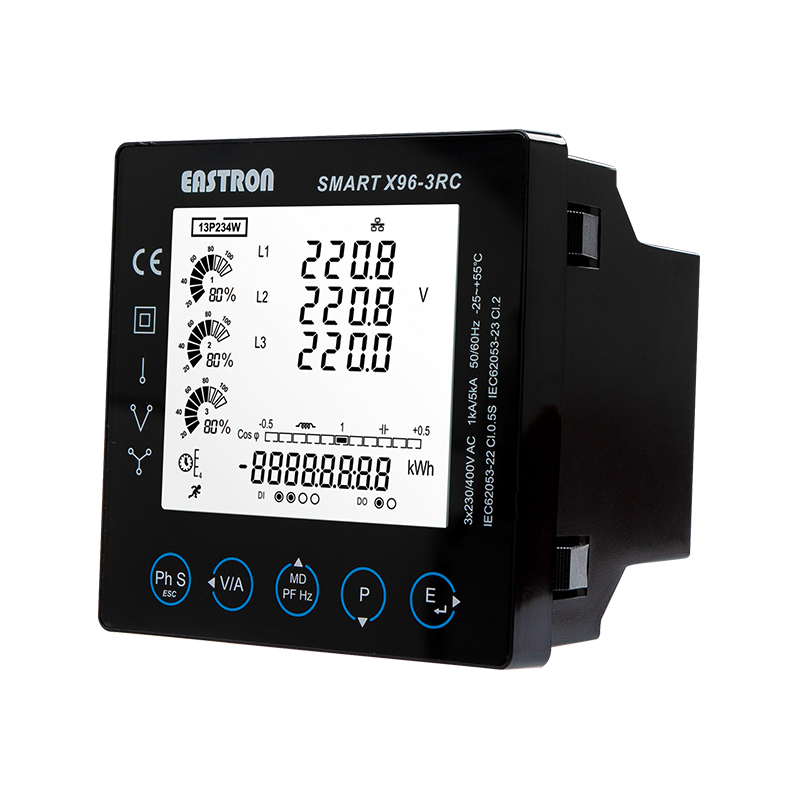

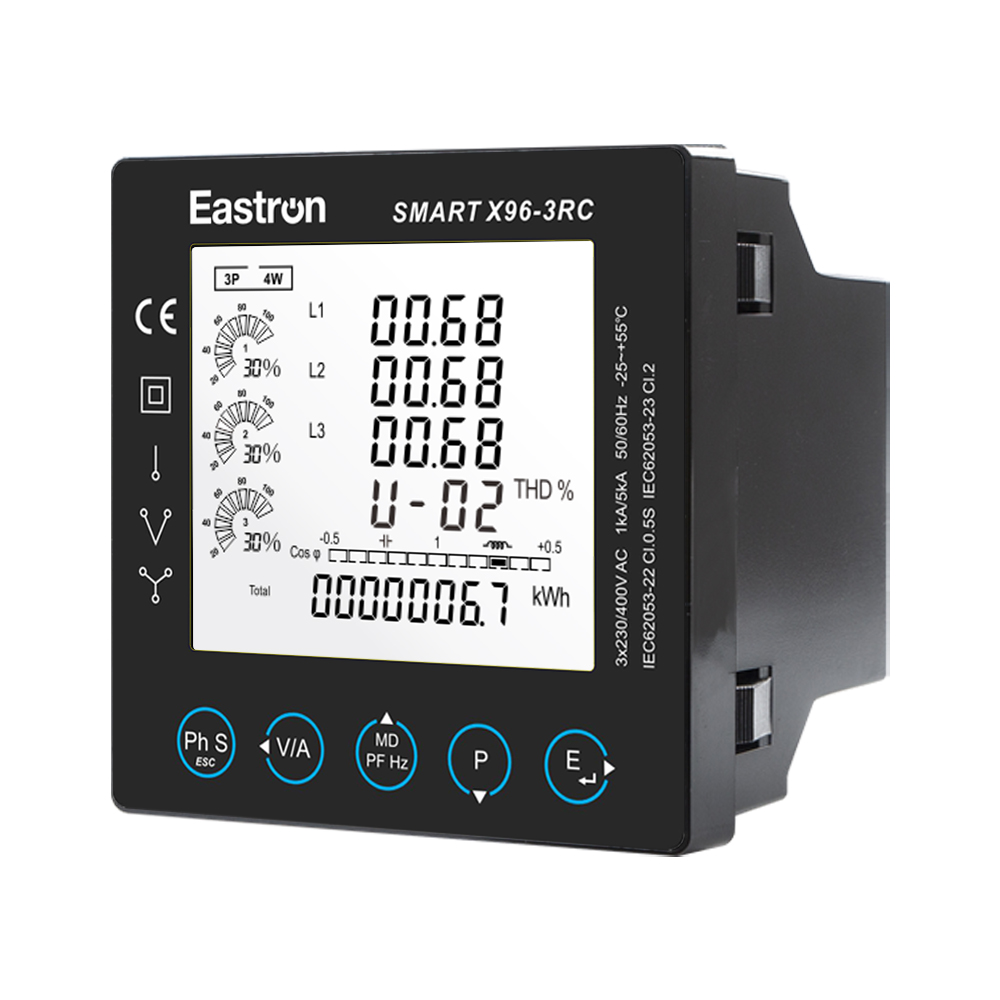

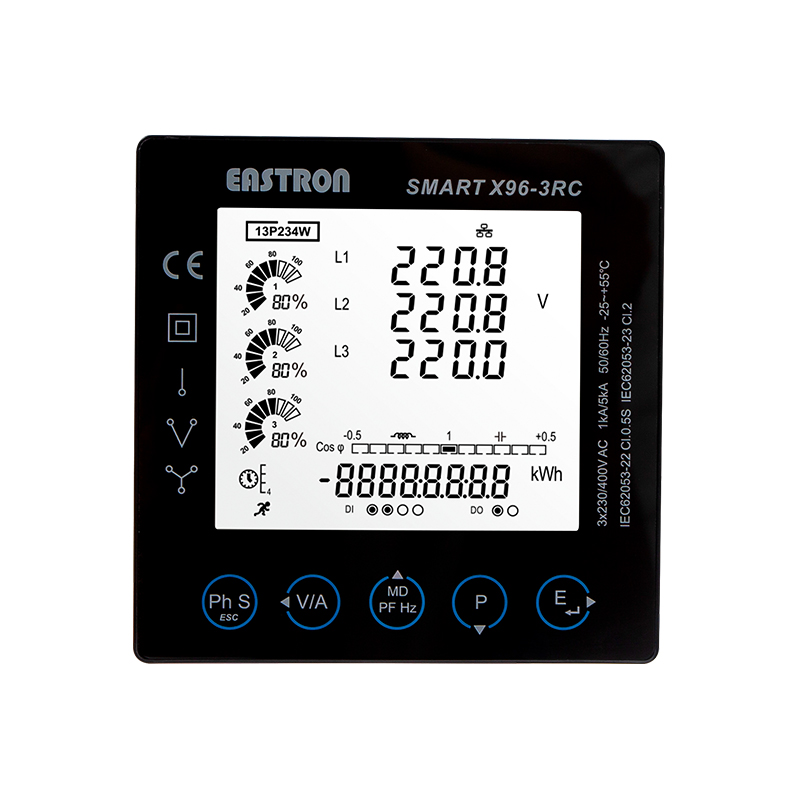

Smart X96-3RC

Rogowski Coils Connected Three Phase Multi-function Panel meters for Electricity Distribution

  • RJ12 type 100mA CT connection
  • Self-Power Supply
  • Multi-parameters measurement
  • Multi-tariffs (RTC) available
  • Up to 63rd IHD
  • RS485 Modbus RTU and Pulse outputs
  • High Accuracy of Class 0.5s
  • Bar graph for power indication
  • Backlit LCD display for full viewing angles
  • Push-in installation and plug-in connection
Eastron Smart X96-3RC is an Rogowski Coils Connected Three Phase Multi-function Panel meters for Electricity Distribution. It measures and displays the characteristics of 1p2w, 3p4w and 3p3w suppliers, including voltage, frequency, current, power, active and reactive energy, imported or exported, harmonic, power factor, Max. demand, etc.

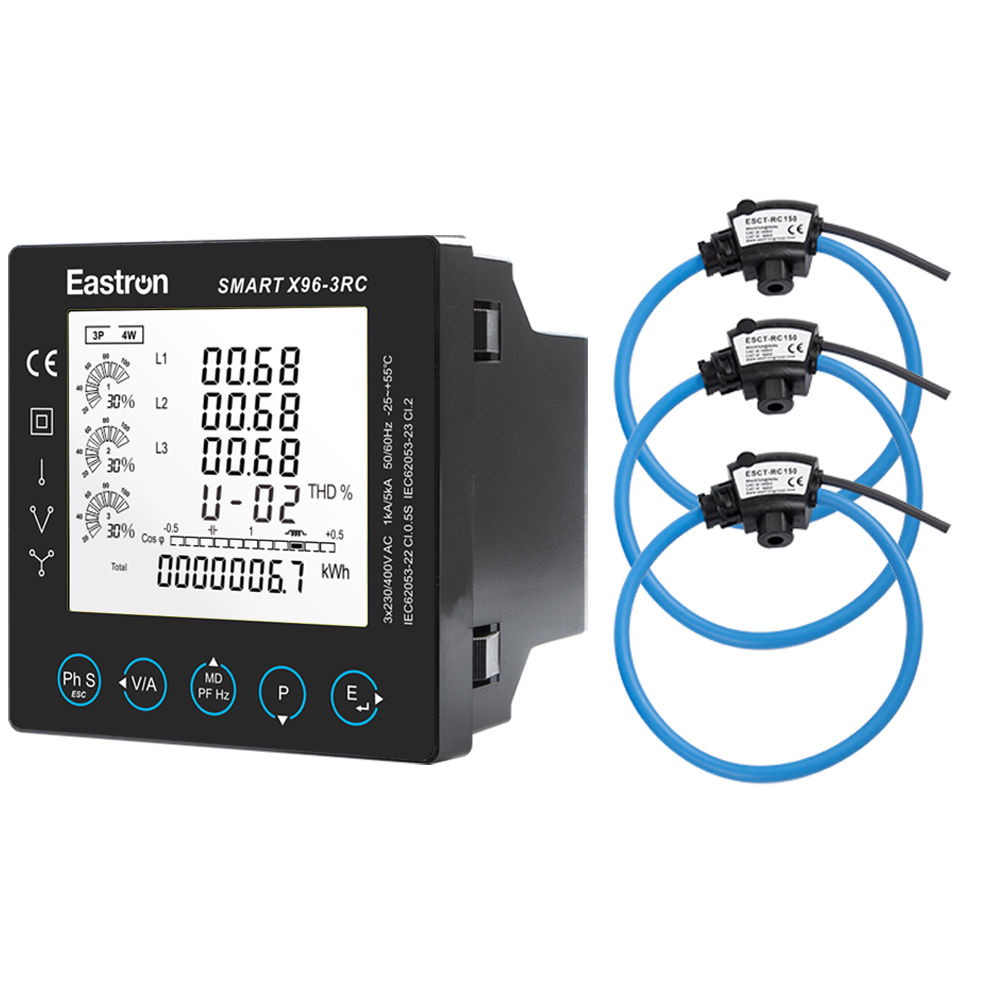

The Smart X96-3RC power meter can be configured to work with a wide range of Rogowski coils directly, no need external integrator. RS485 Modbus RTU is provided for remote monitoring and setting.
Its perfect performance, good look, high accuracy of Class 0.5s, all made it a good choice for Electricity Distribution solutions.

Electrical characteristics

Type of measurement

RMS on three phase AC system (3P+N)

Measurement accuracy

Active power

1.0% of range maximum

Reactive power

1.0% of range maximum

Apparent power

1.0% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

1.0% of range maximum to IEC 62053-24

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current

Rated Current

85mV/kA

Max Current

1Ka/ 5kA

Voltage

Aux.Power supply

230V L-N AC or 120V~380V DC

Measured Voltage

50V ~ 600V (3P4W)

50V ~480V (3P3W)

Communication

RS485 port

Modbus RTU (RS485)

Type

2-wire half duplex

Baud rate

2400,4800, 9600, 19200, 38400 bps

Address

1 to 247

Pariy

None (default), Even, Odd

Stop Bit

1 or 2



Mechanical Characteristics

Weight

420g

IP Degree of Protection (IEC 60529)

IP51 front display

Dimensions (WxHxD)

96x96X92mm

Panel cut-out

Vertical

Material of meter case

Self-extinguishing UL 94 V-0

Terminals

Shrouded screw-clamp.



Environmental Characteristics

Operating Temperature

-25 to 55°C

Storage Temperature

-40 to  70°C

Humidity Rating

<95% RH at 50 °C (non-condensing)

Pollution Degree

2

Altitude

2000m



Wiring and Dimension [mm:]

Installation and Dimension [mm:]

Installation

Installation and Dimension [mm:]

Dimensions
