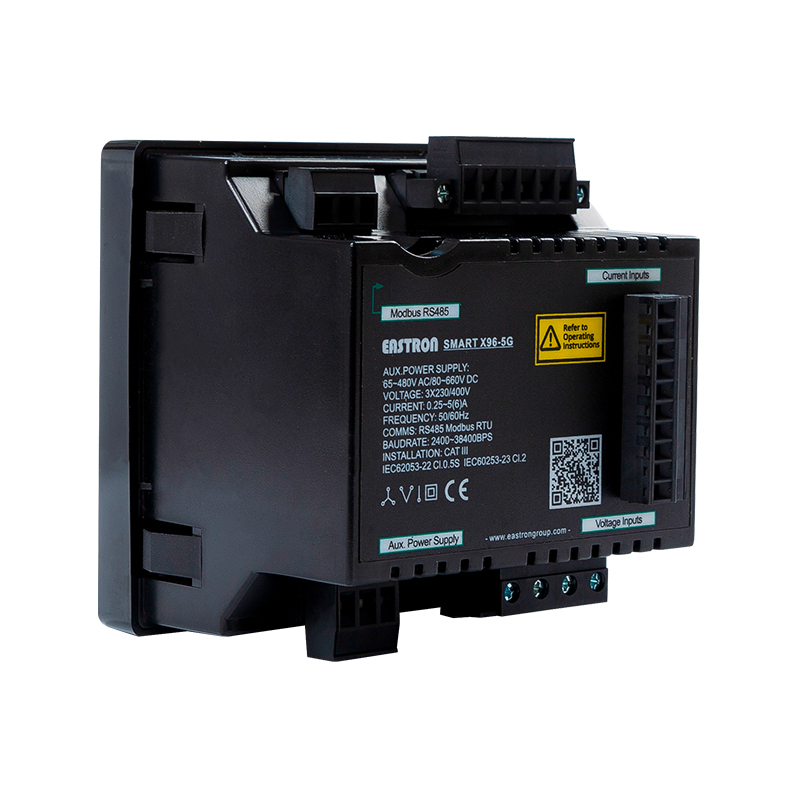

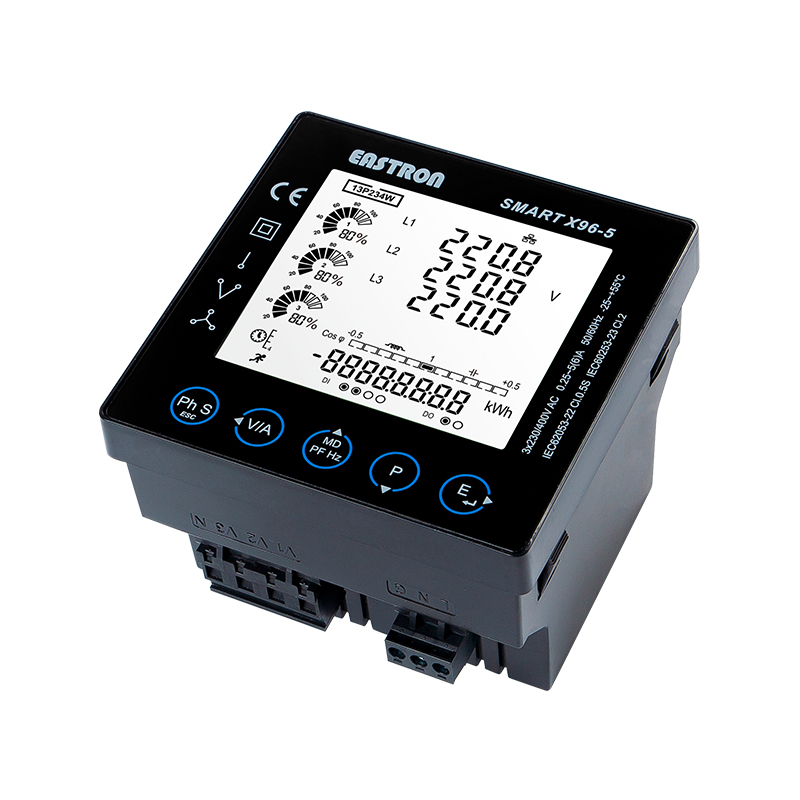

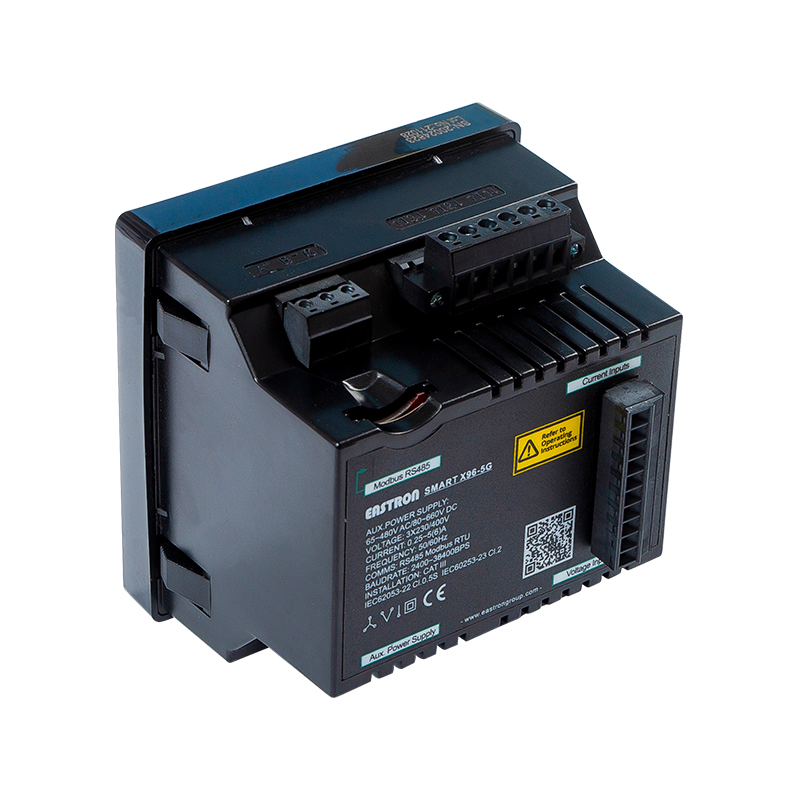

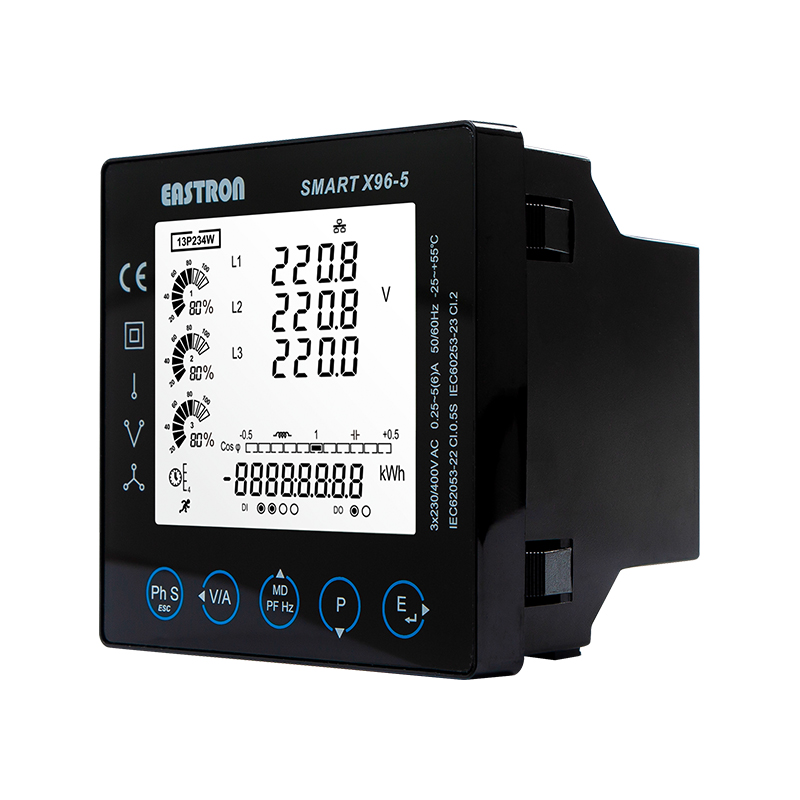

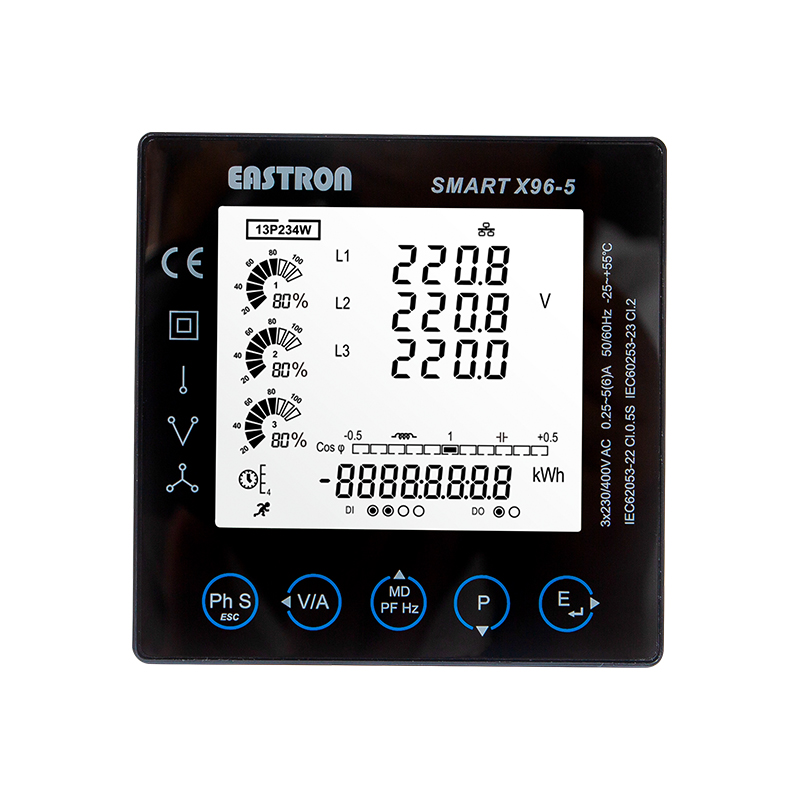

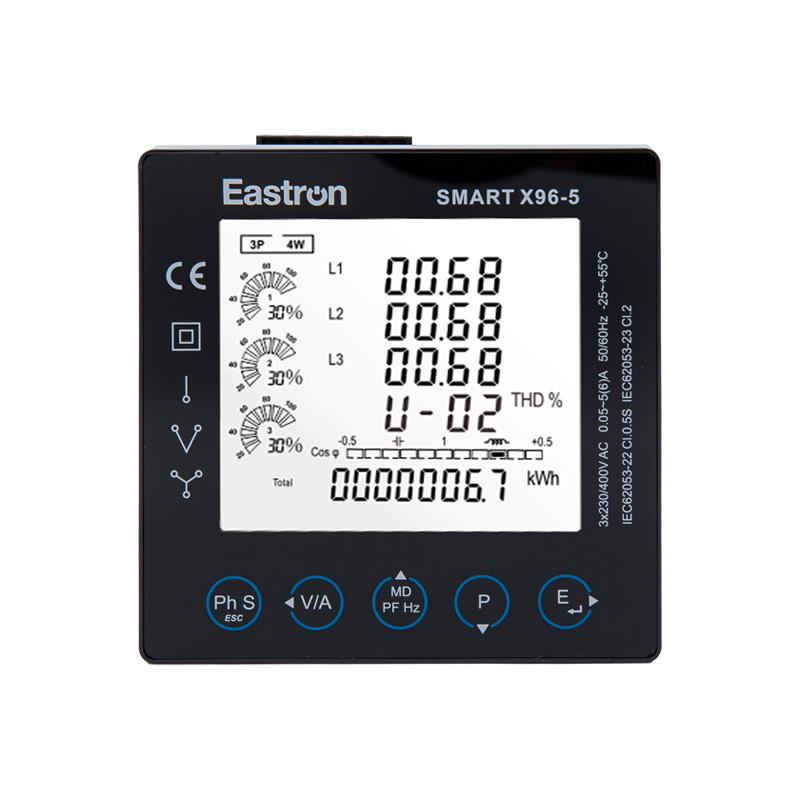

4DI 2DO Three Phase Panel Mounted Multi-function Panel Meter for Electricity Distribution

  • Multi-parameters measurement
  • Up to 63rd IHD
  • RS485 Modbus RTU
  • Multi-tariffs (RTC) available
  • Digital Input and Output
  • High Accuracy of Class 0.5s
  • Bar graph for power indication
  • Backlit LCD display for full viewing angles
  • Push-in installation and plug-in connection
  • SOE recording available

Smart X96 F~J Series

SMART ENERGY ANALYZER FOR SINGLE AND THREE PHASE SYSTEMS

Eastron Smart X96-5G is a 4DI 2DO three phase panel mounted multi-function panel meter for Electricity Distribution. It measures and displays the characteristics of 1p2w, 3p4w and 3p3w suppliers, including voltage, frequency, current, power, active and reactive energy, imported or exported, harmonic, power factor, Max. demand, etc. The harmonic could be measured up to 63rd. Multi-tariffs function is optional.

The Smart X96-5G power meter can be configured to work with a wide range of CTs and PTs, giving the unit a wide range of operation. RS485 Modbus RTU is provided for remote monitoring and setting. Digital inputs and outputs are provided for external signal counting and external device control. 30 types' parameters can be set for alarm. 20 SOE recording with time information.

Its perfect performance, good look, high accuracy of Class 0.5s, all made it a good choice for Electricity Distribution solutions.

Electrical characteristics

Type of measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement accuracy

Active power

1.0% of range maximum

Reactive power

1.0% of range maximum

Apparent power

1.0% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

1.0% of range maximum to IEC 62053-24

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



THD

2% to 63rd harmonic



Input & Output

Input

Current

Rated Current

5A

Max Current

9999A

Min Current

0.25A

Starting Current

20mA

Voltage

Aux.Power supply

230V L-N AC or 120V~380V DC

Measured Voltage

50V ~ 600V (3P4W)

50V ~480V (3P3W)

Communication

RS485 port

Modbus RTU (RS485)

Type

2-wire half duplex

Baud rate

2400,4800, 9600, 19200, 38400 bps

Address

1 to 247

Pariy

None (default), Even, Odd

Stop Bit

1 or 2



Mechanical Characteristics

Weight

420g

IP Degree of Protection (IEC 60529)

IP51 front display

Dimensions (WxHxD)

96x96X92mm

Panel cut-out

Vertical

Material of meter case

Self-extinguishing UL 94 V-0

Terminals

Shrouded screw-clamp.



Environmental Characteristics

Operating Temperature

-25 to 55°C

Storage Temperature

-40 to  70°C

Humidity Rating

<95% RH at 50 °C (non-condensing)

Pollution Degree

2

Altitude

2000m

Wiring and Dimension [mm:]

Installation and Dimension [mm:]

Installation

Installation and Dimension [mm:]

Dimensions
