Smart X835

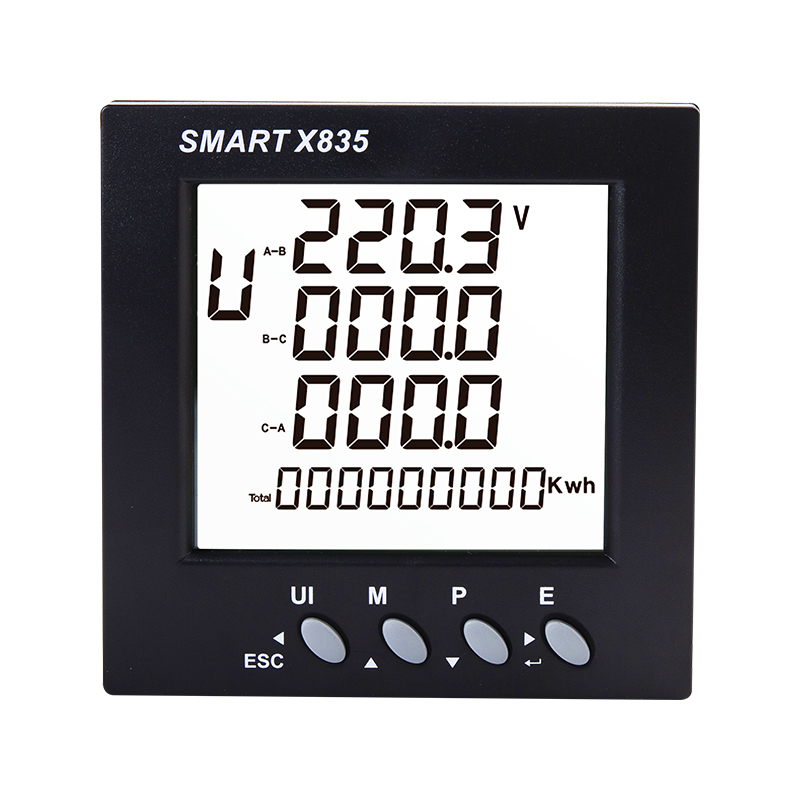

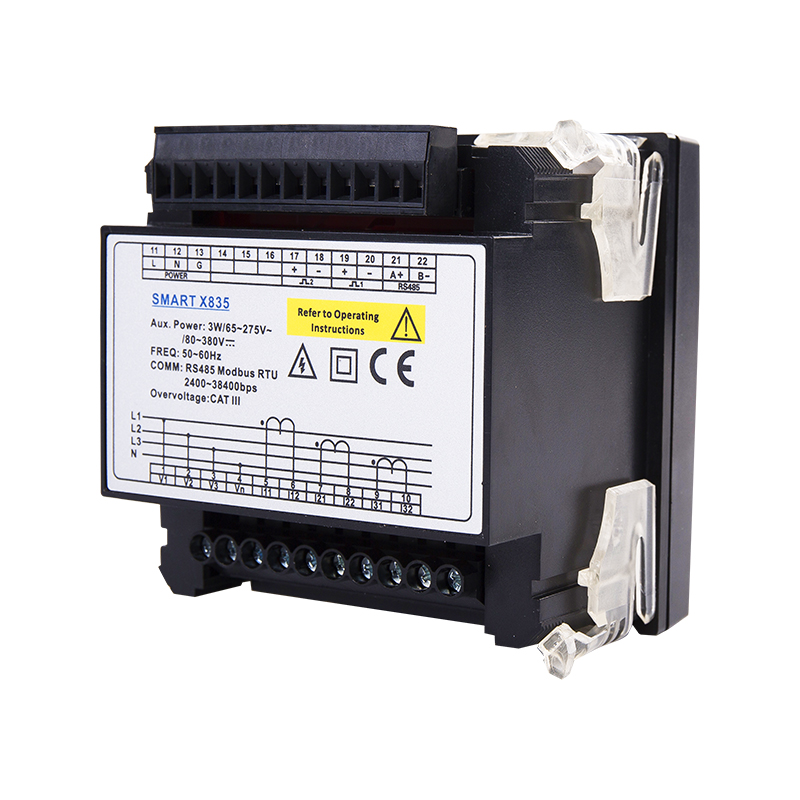

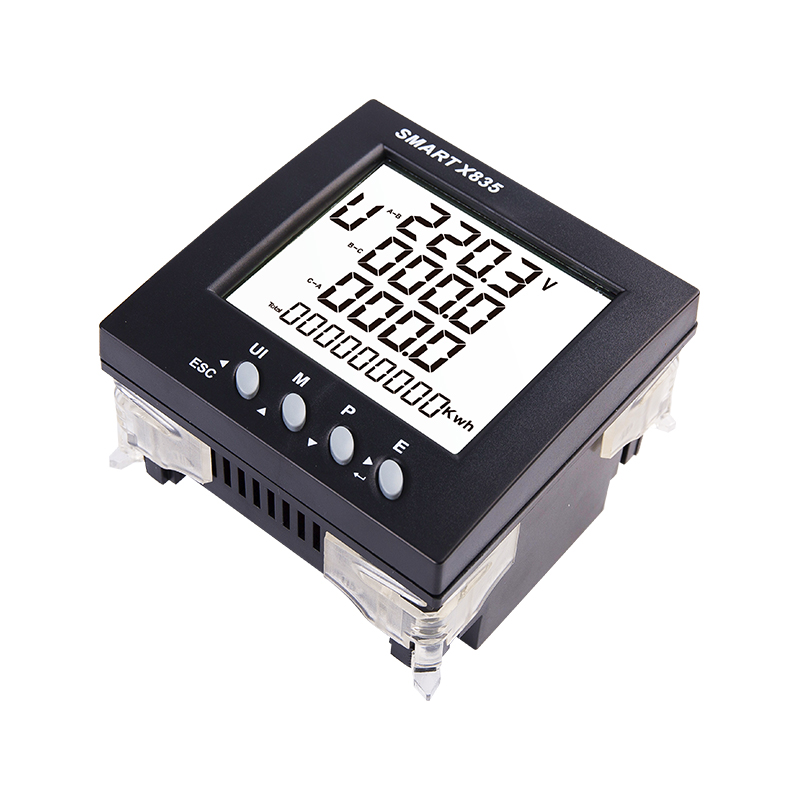

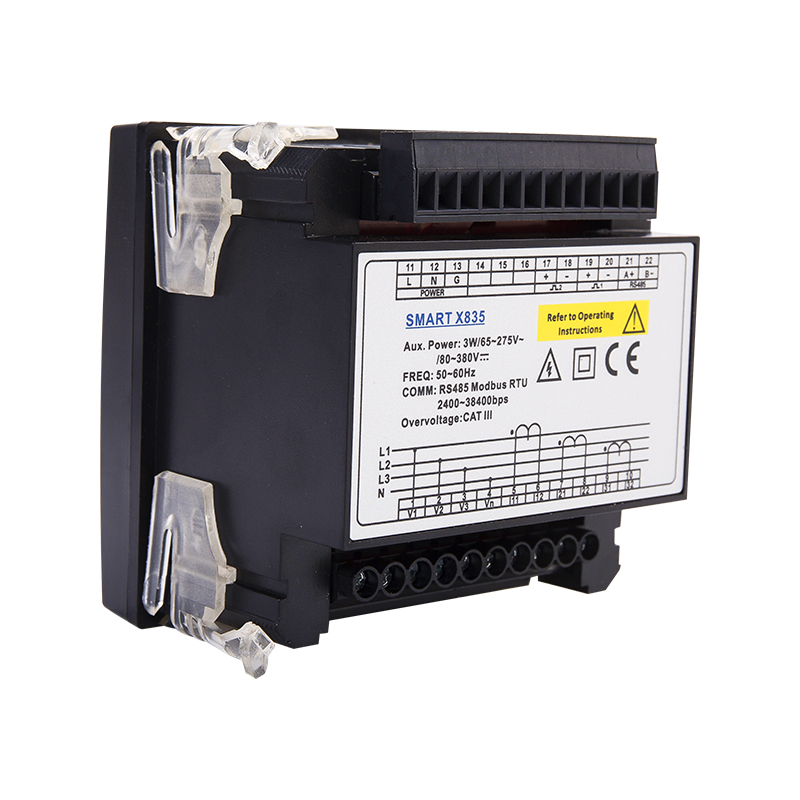

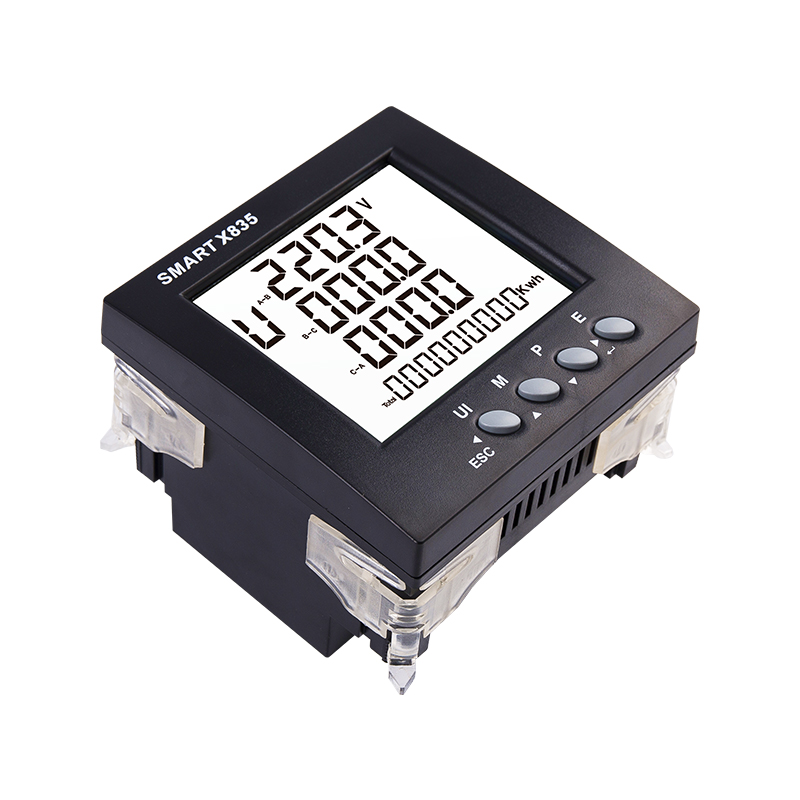

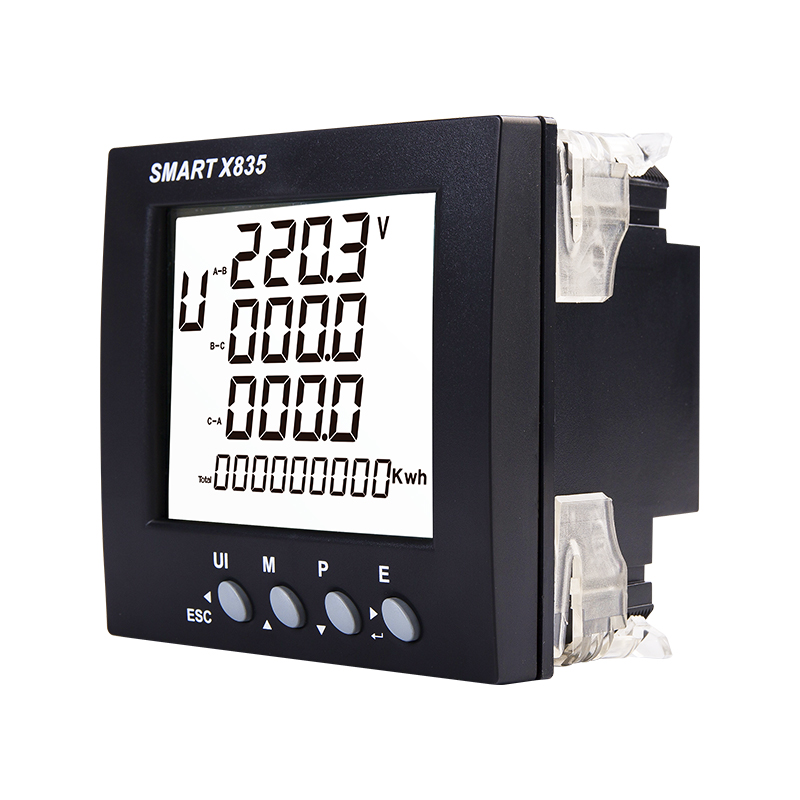

RS485 Modbus Panel Type 96x96 Multi-function Power Analyzer

  • Crest factor & Key factor
  • Multi-parameters measured
  • RS485 Modbus RTU and Pulse Outputs
  • CT and PT connected
  • Multi-tariffs available
Eastron Smart X835 is a5A input RS485 Modbus panel type 96x96 multi-function power analyzer. The meter measures and displays characteristic of 1p3w, 3p4w and 3p3w supplirs, including voltage, current, frequency, power, active and reactive energy, harmonics, etc.
The meter support AC or DC auxiliary power supply. It requires voltage and current inputs to power the product. The requisite current input is obtained via Current Sensors.
The Smart X835 can be configured to work with a wide range of CTs, giving the unit a wide range of operation. Built-in interfaces provide pulse and RS485 Modbus RTU outputs.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Active Power

1.0% of range maximum

Reactive Power

1.0% of range maximum

Apparent Power

1.0% of range maximum

Active Energy

IEC 62053-21 Class 1

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)

THD

2% to 63rd harmonic



Input & Output

Input-Current

CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.25A

Starting Current

20mA

Output

Contact Rating Current

2-27mA at 27V DC

Contact Rating Voltage

5-27V DC

Pulse Width

60 / 100 / 200 ms

Pulse Output 1

0.01 / 0.1 / 1 / 10 / 100 kWh/kVArh

Pulsed Output 2

3200IMP/kWh



RS485 Modbus Communication

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

2400bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

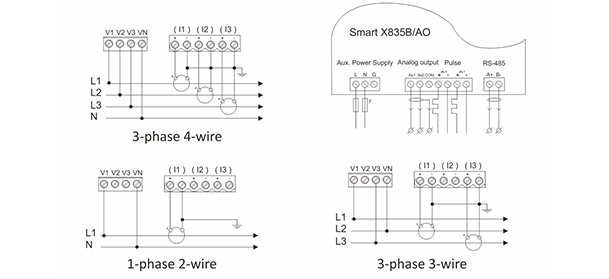

Wiring diagram

Wiring and Dimension [mm:]

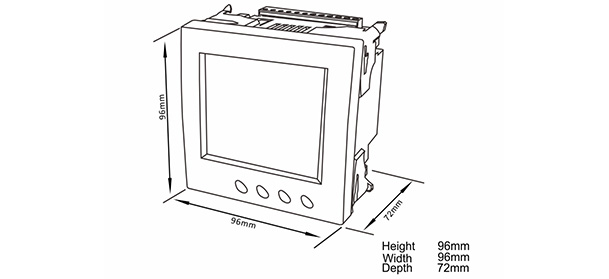

Dimensions
