Smart X96-5I

DI/DO Ethernet Modbus TCP 96x96 Panel Mounted Multi-function Power Analyzer

  • Multi-parameters measurement
  • Up to 63rd THD and IHD
  • RS485 Modbus RTU and Ethernet Modbus TCP/IP
  • Multi-tariffs (RTC) available
  • Digital Input and Output
  • High Accuracy of Class 0.5s
  • Bar graph for power indication
  • Backlit LCD display for full viewing angles
  • Push-in installation and plug-in connection
  • SOE recording

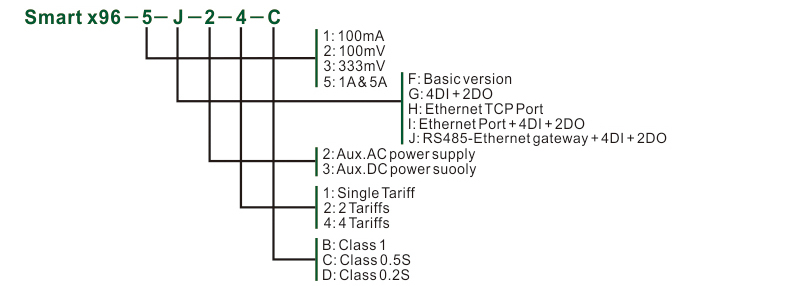

Smart X96 F~J Series

SMART ENERGY ANALYZER FOR SINGLE AND THREE PHASE SYSTEMS

Eastron Smart X96-5I Series is a DI/DO Ethernet Modbus TCP 96x96 Panel Mounted Multi-function Power Analyzer. This series meters measure and display the characteristics of 1p2w, 3p4w and 3p3w suppliers, including voltage, frequency, current, power, active and reactive energy, imported or exported, harmonic, power factor, Max. demand, etc.

The Smart X96 can be condigured to work with a wide range of CTs and PTs, giving the unit a wide range of operation. RS485 Modbus RTU and Ethernet TCP/IP are available for remote reading and setting. Digital input and outputs are provided for external signal counting and external device control. 30 types' parameters can be set for alarm.

The meter is widely used not only in the electricity transmission and power distribution system, but also in the power consumption measurement and analysis in LV/MV intelligent power grid.

Electrical characteristics

Type of measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement accuracy

Active power

1.0% of range maximum

Reactive power

1.0% of range maximum

Apparent power

1.0% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

Reactive Energy

1.0% of range maximum to IEC 62053-24

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



THD

2% to 63rd harmonic



Input & Output

Input

Current

Rated Current

5A

Max Current

9999A

Min Current

0.25A

Starting Current

20mA

Voltage

Aux.Power supply

230V L-N AC or 120V~380V DC

Measured Voltage

50V ~ 600V (3P4W)

50V ~480V (3P3W)

Communication

RS485 port

Modbus RTU (RS485)

Type

2-wire half duplex

Baud rate

2400,4800, 9600, 19200, 38400 bps

Address

1 to 247

Pariy

None (default), Even, Odd

Stop Bit

1 or 2



Mechanical Characteristics

Weight

420g

IP Degree of Protection (IEC 60529)

IP51 front display

Dimensions (WxHxD)

96x96X92mm

Panel cut-out

Vertical

Material of meter case

Self-extinguishing UL 94 V-0

Terminals

Shrouded screw-clamp.



Environmental Characteristics

Operating Temperature

-25 to 55°C

Storage Temperature

-40 to  70°C

Humidity Rating

<95% RH at 50 °C (non-condensing)

Pollution Degree

2

Altitude

2000m

Wiring and Dimension [mm:]

Installation and Dimension [mm:]

Installation

Installation and Dimension [mm:]

Dimensions
