ESCS-C1-E5

Residual Current Operated Protective Sensor for EV Charger

  • DC 6mA Current Alarm
  • Mounted on PCB Board
  • 30mA AC/6mA DC Trip Indication
  • High-frequency response up to 2kHz

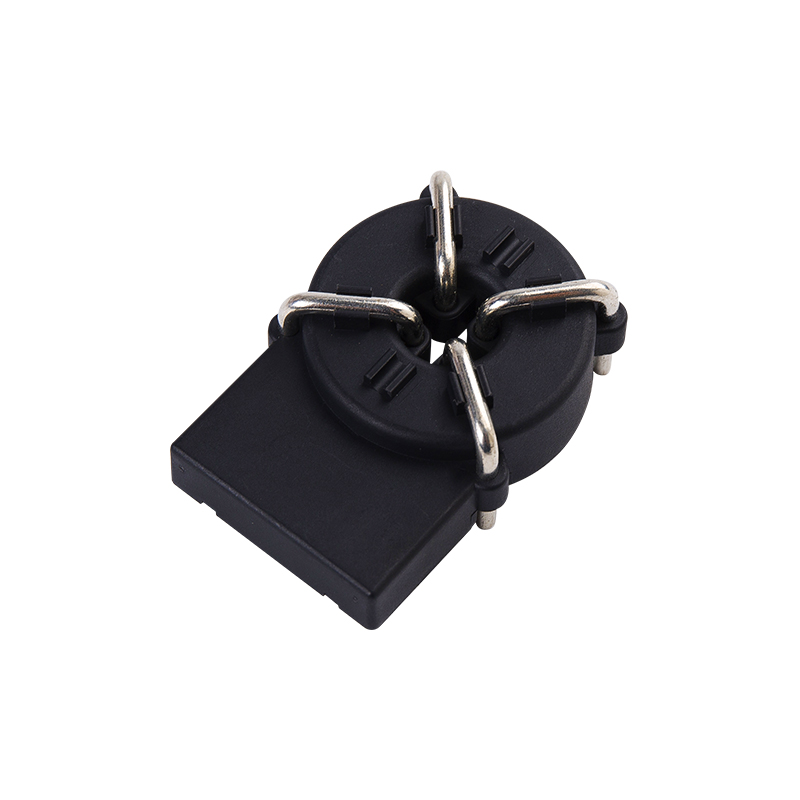

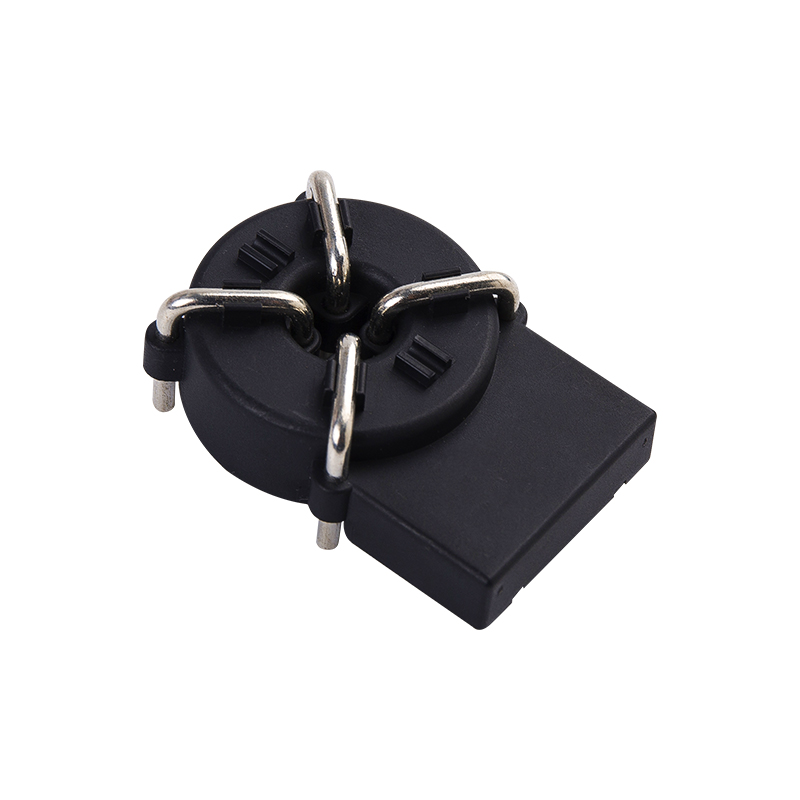

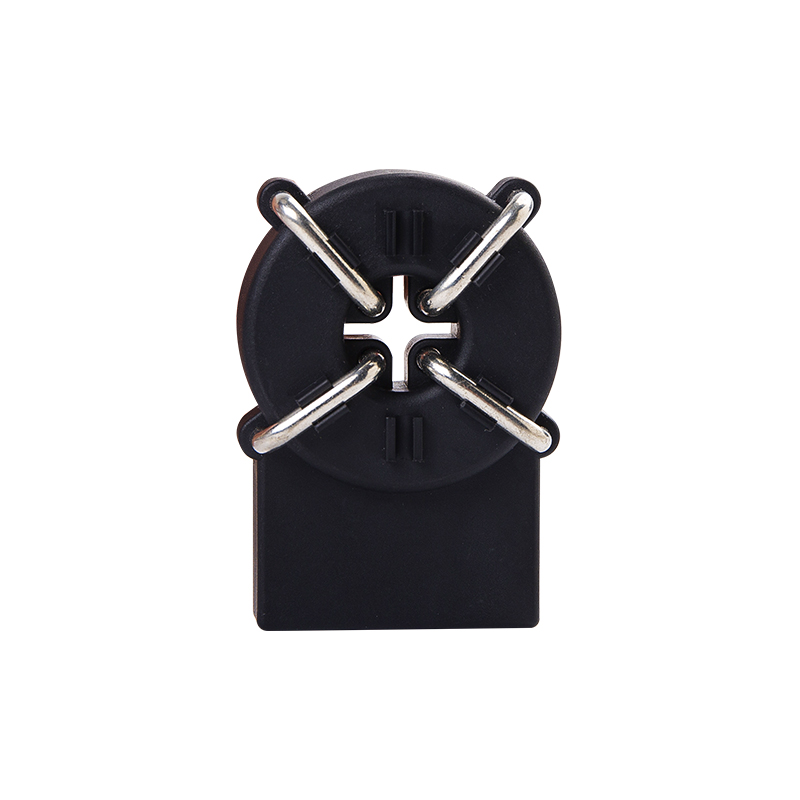

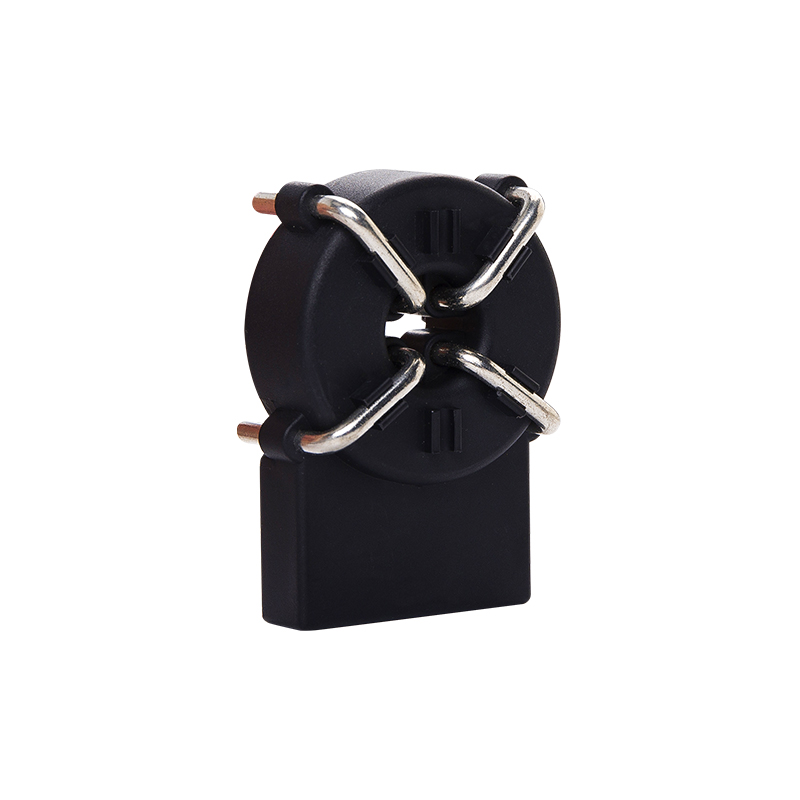

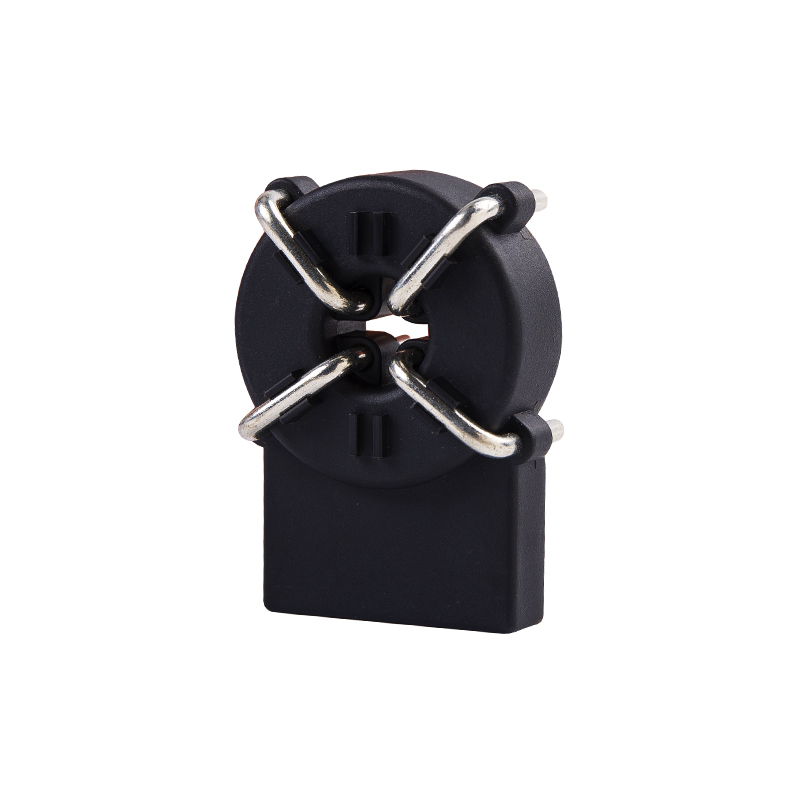

ESCS-C1 is residual current operated protective sensor for EV charger.

It's to avoid hazardous situations in cases where the vehicle battery (DC) is connected to the home power supply (AC). Generally, AC/DC sensitive residual current sensors can be used where direct current and alternating current circuits are directly connected and therefore AC/DC leakage currents can occur.

It's applicable for IEC 62752-2018 residual current requirements, IEC 62955-2018 residual current requirements for RDC-PD and GB/T 28046.3-2011 4.1.2.4. Its components designed full-fill RoHS/REACH.

Product Features:

●Type-A+6Ma/DC 6mA residual current module for EV charging pile protection

●Mounted on PCB board

●Dual digital open-drain output, 30mA AC/6mA DC trip indication

●3-phase primary conductors on module (typ. 32A, max. 40A)

●PWM output for DC residual current value indication (0~30mA)

●Error output for system fault indication

●High-frequency response up to 2kHz (ESCS-C1-E3)*

International Standards:

●IEC 62955-2018 residual current requirements for RDC-PD/RDC-MD

●GB/T 22794 basic residual current requirements, adapting to DC 6mA test requirements

Order code

Current Input

Digital Input

Digital Input

Standard

ESCS-C1-E3

DC 6mA/ AC 30mA

0V/5V

IEC62955 RDC-PD

ESCS-C1-E5

DC 6mA

0V/5V

IEC62955-2018

ESCS-C2-E3

DC56mA/AC 30mA

0V/5V

IEC62955 RDC-PD

Wiring and Dimension [mm:]
