Three Phase Wi-Fi Multi-function Energy Meter for IOT Solutions

  • Three Phase Wi-Fi Multi-function Energy Meter for IOT Solutions
  • Three Phase Wi-Fi Multi-function Energy Meter for IOT Solutions
  • Three Phase Wi-Fi Multi-function Energy Meter for IOT Solutions
  • Three Phase Wi-Fi Multi-function Energy Meter for IOT Solutions
  • Three Phase Wi-Fi Multi-function Energy Meter for IOT Solutions
  • Three Phase Wi-Fi Multi-function Energy Meter for IOT Solutions

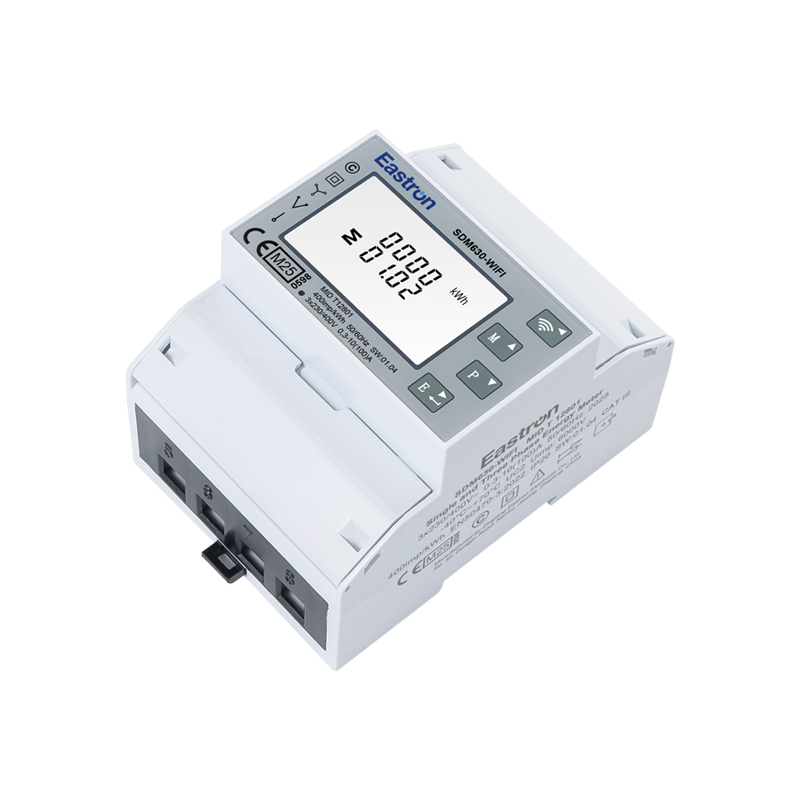

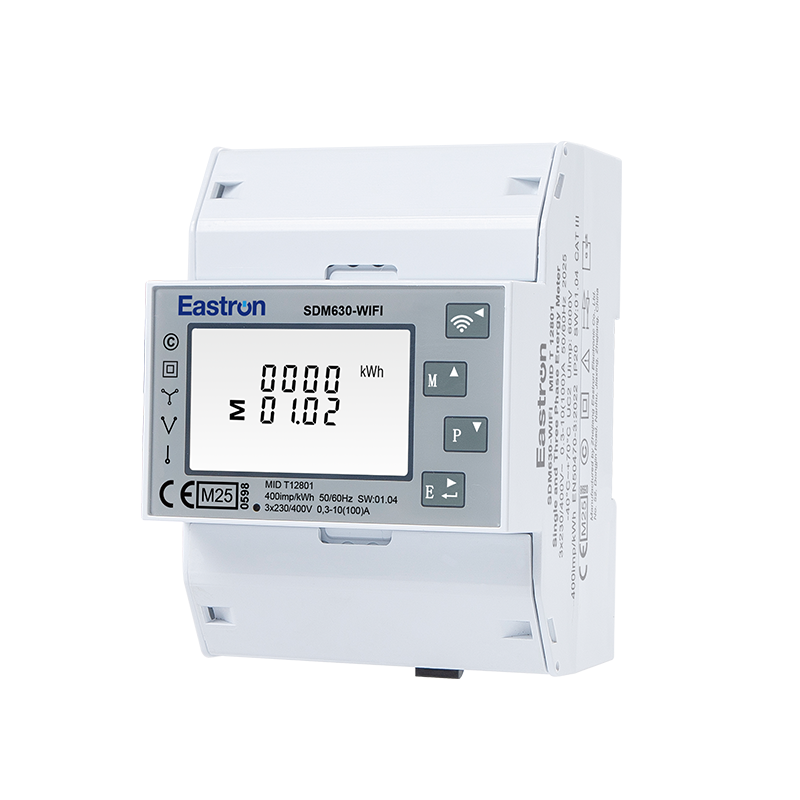

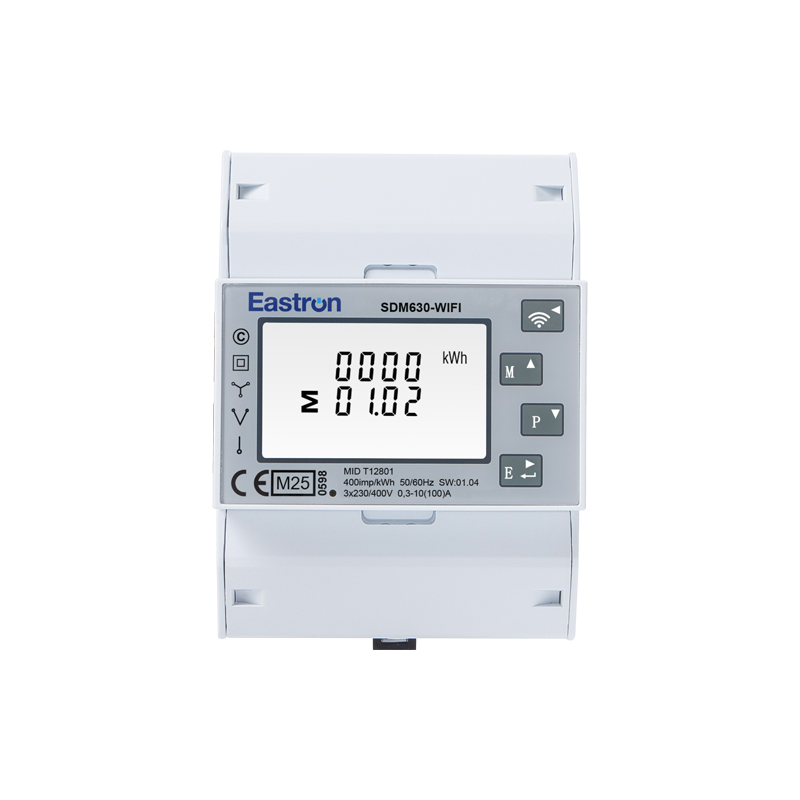

SDM630-WIFI

Three Phase Wi-Fi Multi-function Energy Meter for IOT Solutions

  • Max. 100A direct load
  • Work with 3P4W/3P3W/1P2W
  • Multi-measurement: kWh, kVArh, kW, kVAr, kVA, PF, Hz, V, A, dmd, THD etc
  • Bi-directional measurement
  • Configurable pulsed output (Import / Export kWh)
  • Remote reading from platform
  • WIFI signal strength
  • Flexible system integration
  • MID Certified

SDM630-WIFI measures and displays the characteristics of single phase two wires(1p2w), three phase three wires(3p3w), three phase four wires (3p4w) supplies, including kWh, kVArh, kW, kVAr, kVA, PF, Frequency, Voltage, Current, dmd, THD etc. It support Max.100A direct connection, saving the cost to install external CTs. Maximum demand current can be measured over preset periods of up to 60 minutes.

The meter support WIFI communication, Parameters can be up loaded to the platform to realize the one stop centralized management.

It has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Voltage

±0.5%

Current

±0.5%

Frequency

±0.2%

Power Factor

±1%

Active Power

±1%

Reactive Power

±1%

Apparent Power

±1%

Active Energy

Class 1/0.5 IEC 62053-21

Class B/C EN50470-3:2022

Reactive Energy

Class 2 IEC62053-23



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

100A

Min Current(Imin.)

0.3A

Starting Current

40mA

Voltage

Rated Voltage (Un)

3*230/400V AC

Voltage Range

100 - 277V AC (L-N)

100 to 480V AC (L-L)

Output

2 Pulse Outputs + Wi-Fi





Communications

Wi-Fi Support

2.4Ghz b / g / n

Wi-Fi Data Freq.

Every second

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

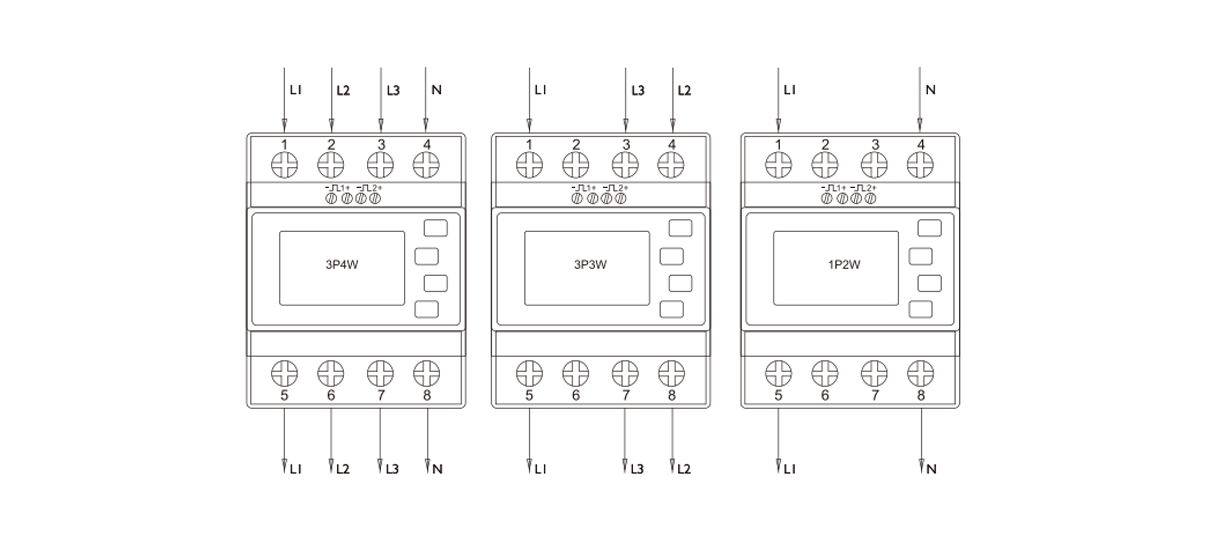

Wiring diagram

Wiring and Dimension [mm:]

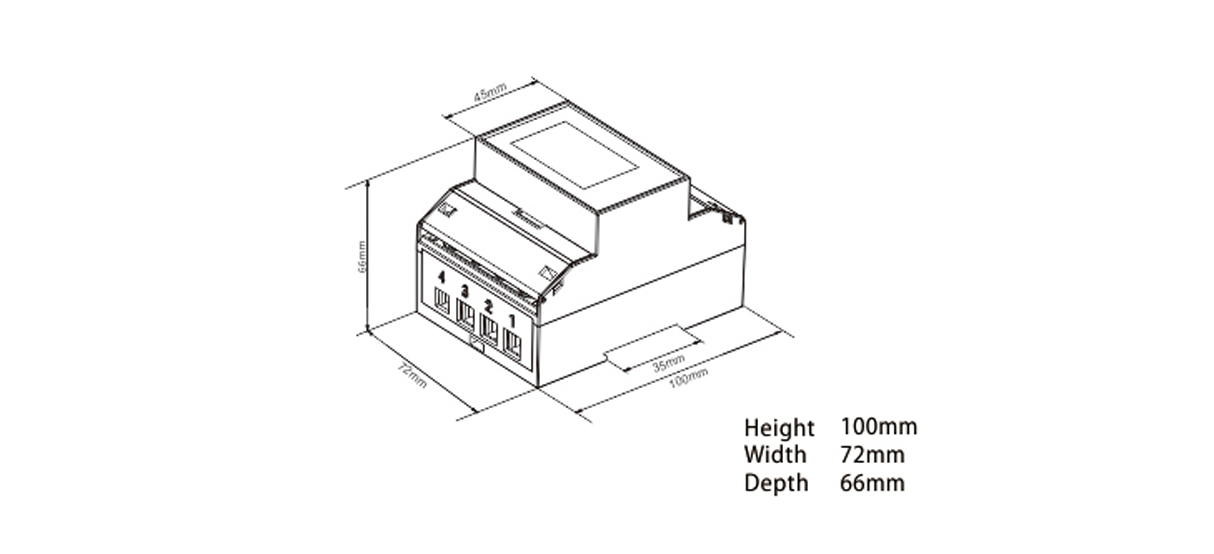

Dimensions
