Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P+N) |
|
|
Measurement Accuracy |
Voltage |
±0.5% |
|
Current |
±0.5% |
|
|
Frequency |
±0.2% |
|
|
Power Factor |
0.01 |
|
|
Active Power |
±1% |
|
|
Reactive Power |
±1% |
|
|
Apparent Power |
±1% |
|
|
Active Energy |
Class 0.5 IEC62053-22 Class C EN50470-3:2022 |
|
|
Reactive Energy |
Class 2 IEC62053-23 |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
10A |
|
Max Current(Imax.) |
100A |
||
|
Min Current(Imin.) |
0.15A |
||
|
Voltage |
Rated Voltage (Un) |
230V |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM230-Wifi |
2 Pulse Outputs +WIFI |
|

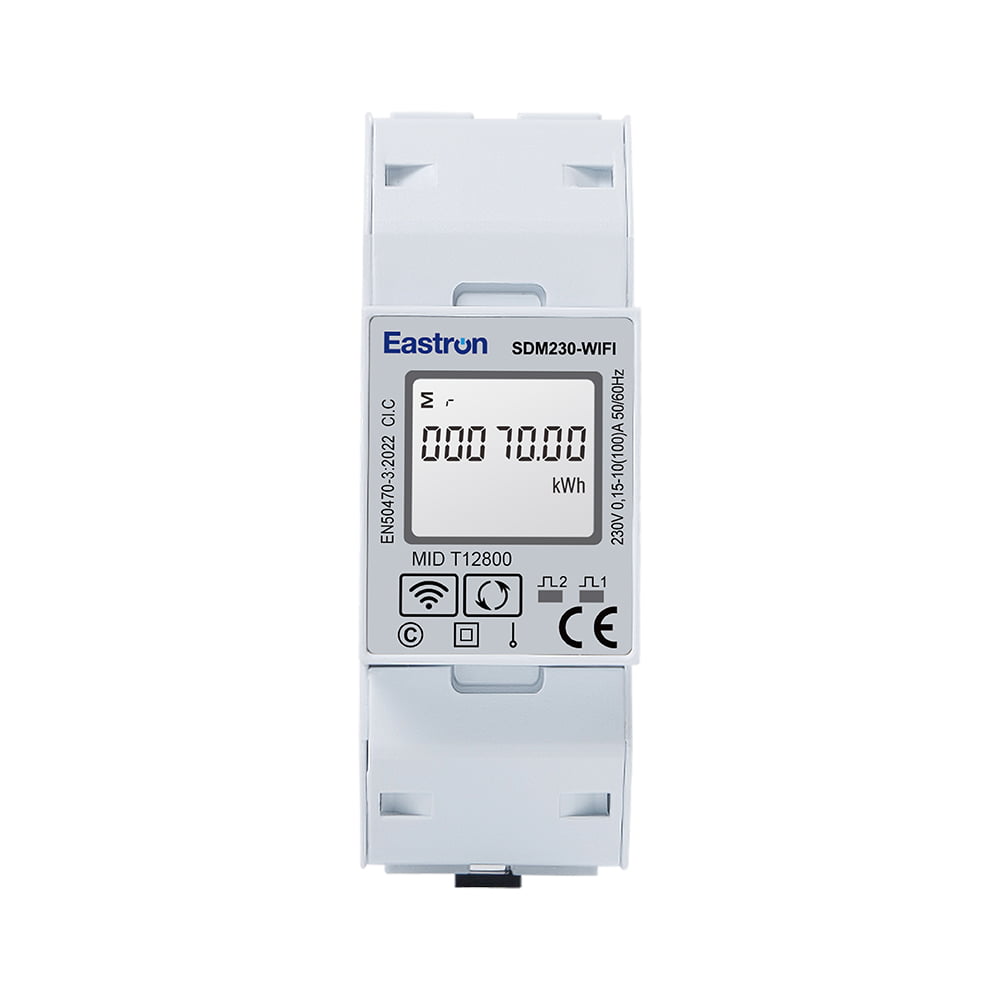

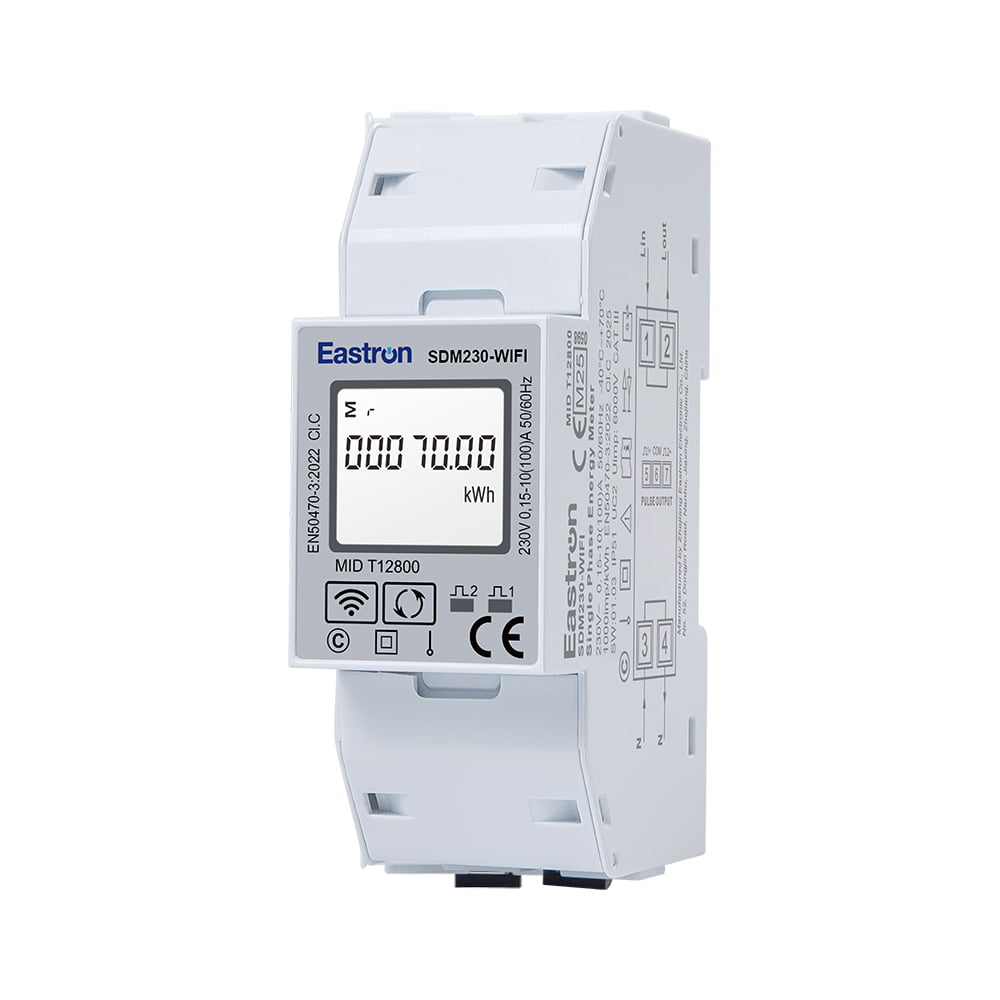

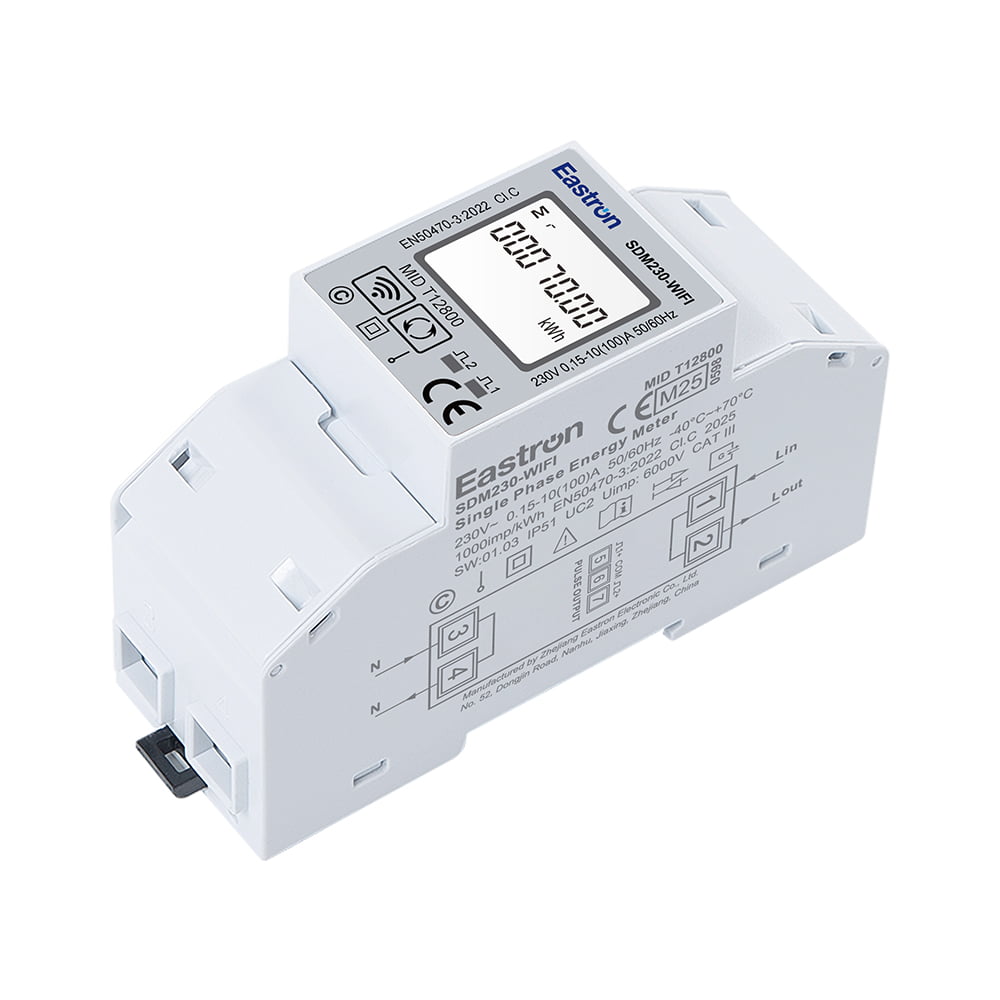

We develop and produce high performance electricity meters, power analyzers, current sensors, communication modules and management systems. MID Approved 100A Direct Connection Single Phase Din Rail Wifi Energy Meter for IOT Solutions Manufacturers and Factory
