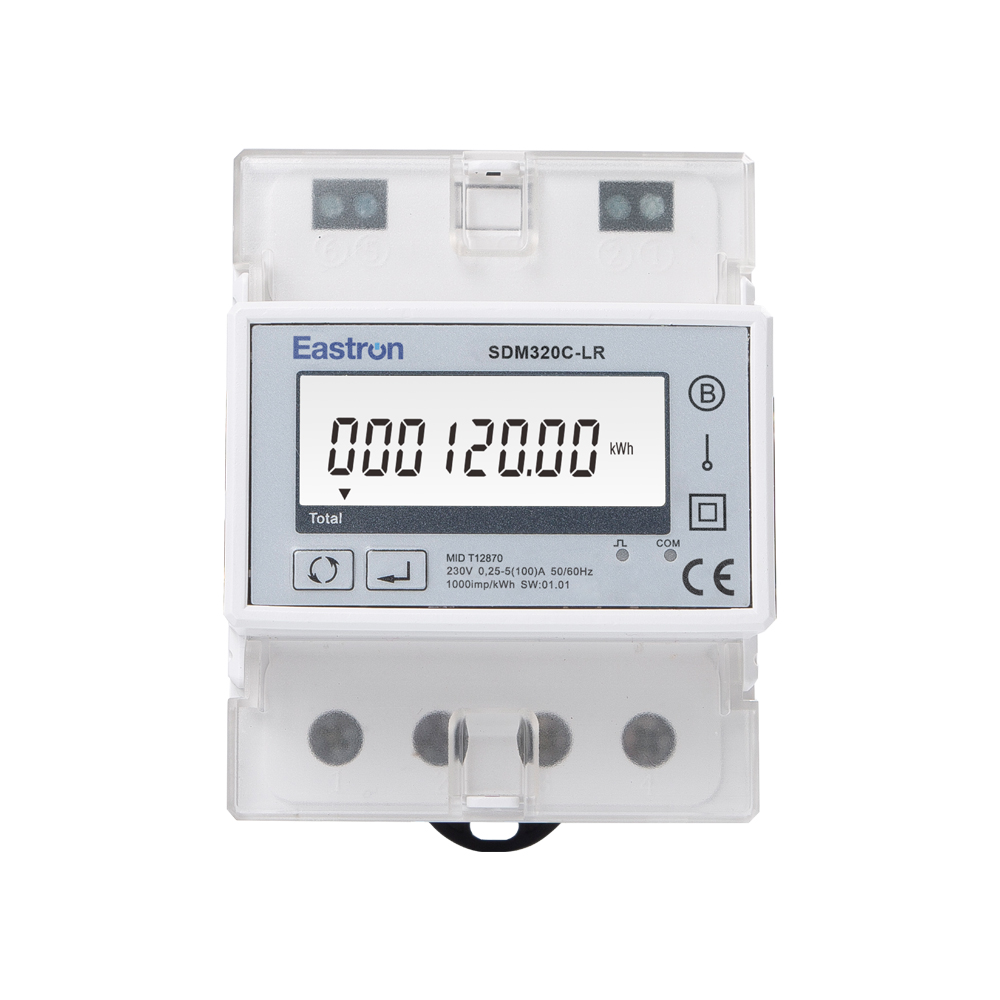

SDM320C-LR measures and displays the characteristics of single phase two wire (1p2w), including voltage, frequency, current, power, active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes.
The meter is Max. 100A direct connected and do not need to connect with external current transformers(CT).
LoRa communication is available on the meter for long distance wireless data transmission.
|
Electrical characteristics |
||
|
Type of measurement |
RMS including on single phase AC system |
|
|
Measurement accuracy |
Power |
±1% |
|
Active Energy |
Class 1 IEC 62053-21 Class B EN50470-3: 2022 |
|
|
Reactive Energy |
Class 2 IEC62053-23 |
|
|
Frequency |
±0.2% |
|
|
Current |
±0.5% |
|
|
Voltage |
±0.5% |
|
|
Power Factor |
±0.01 |
|
|
Input & Output |
|||
|
Input |
Current |
Rated Current |
5A |
|
Max Current |
100A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
20mA |
||
|
Voltage |
Rated Volatge (Un) |
230V |
|
|
Volatge Range |
100 - 277V AC( L-N) |
||
|
Output |
LoRaWAN + Digital Input |
||
|
LoRaWAN Communications |
|
|
Interface standard and protocol |
LoRaWAN Specification 1.0.2 |
|
Frequency |
EU868/AS923/AU915... |
|
LoRaWAN Class |
Class C |
|
Auto-upload |
Max. 19 parameters |
|
Auto-upload Interval |
OTAA or ABP |
