LoRa Point-to-Point Single Phase Din Rail Smart Energy Meter for IOT Solutions

View Products Contact Us

Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
Communicative access to AMR and SCADA systems
Bi-directional Measurement
RS485 Modbus RTU communication interface
LoRa Point-to-Point (P2P) wireless communication, no gateway required
Direct pairing with ES-LR1 receiver module

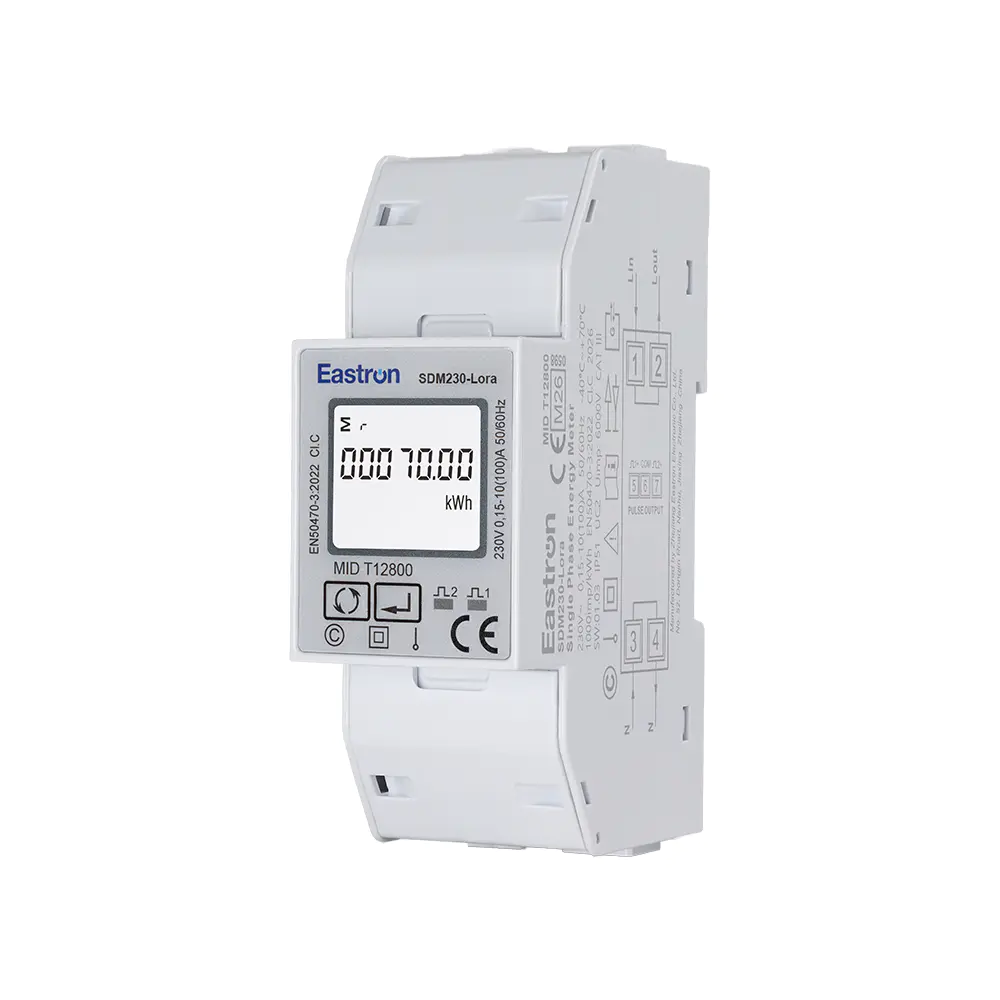

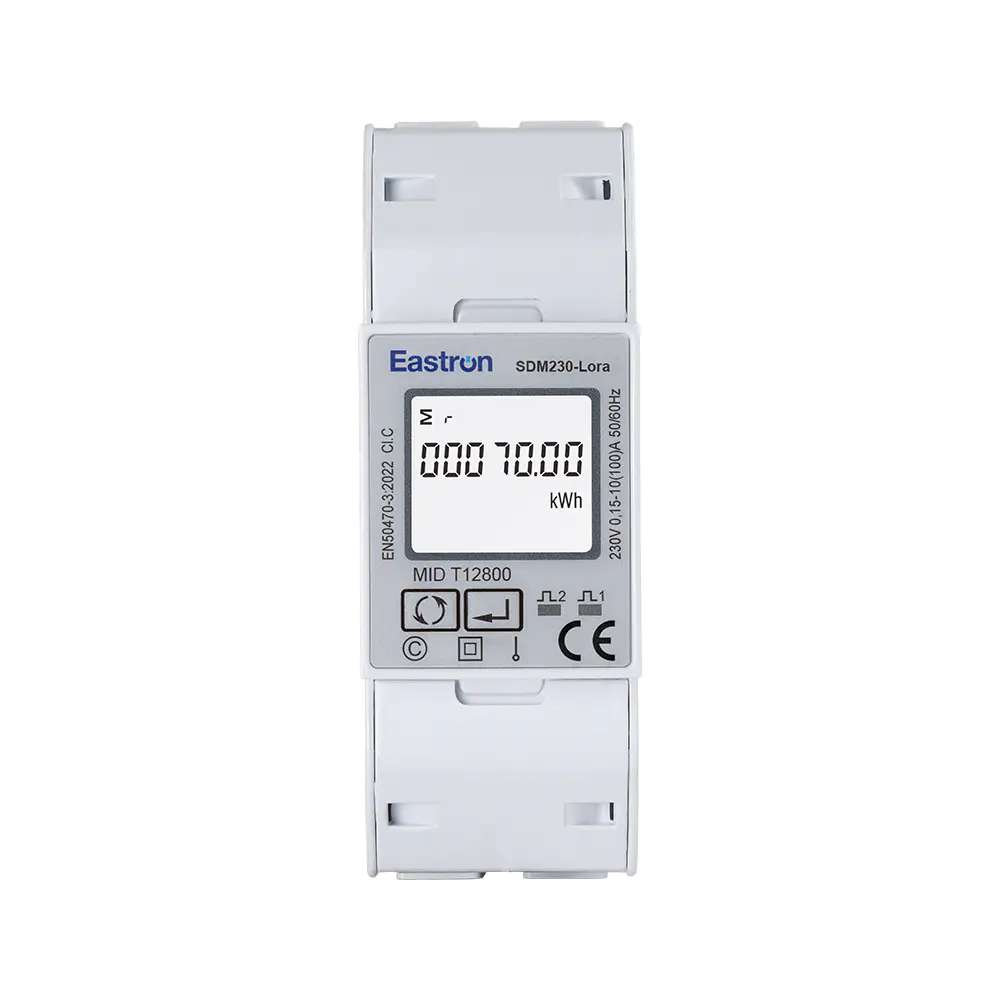

SDM230-Lora P2P is a smart single-phase energy meter that adopts Point-to-Point (P2P) LoRa wireless communication technology. The meter measures and displays the characteristics of single-phase two-wire (1P2W)

systems, including voltage, frequency, current, power, active energy, and reactive energy (imported or exported). Energy is measured in kWh and kvarh. Maximum demand current can be measured over preset periods of up to 60 minutes.

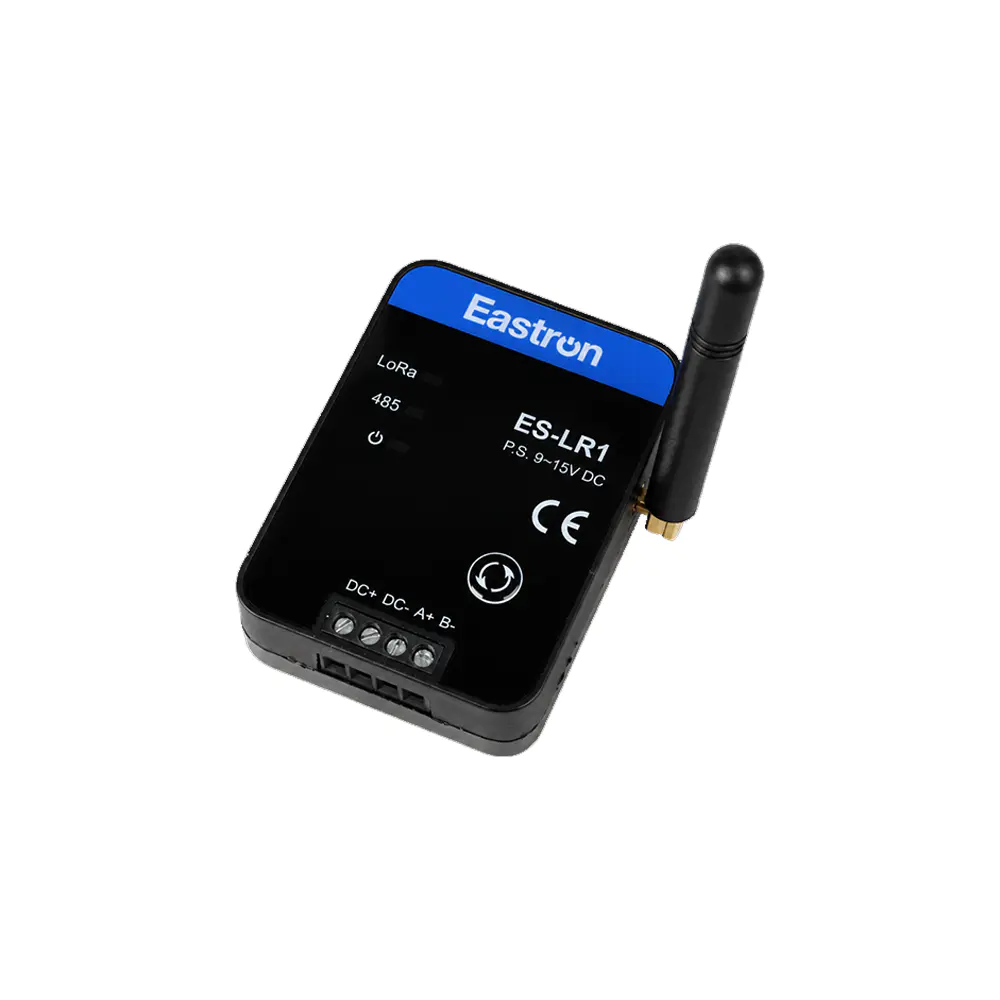

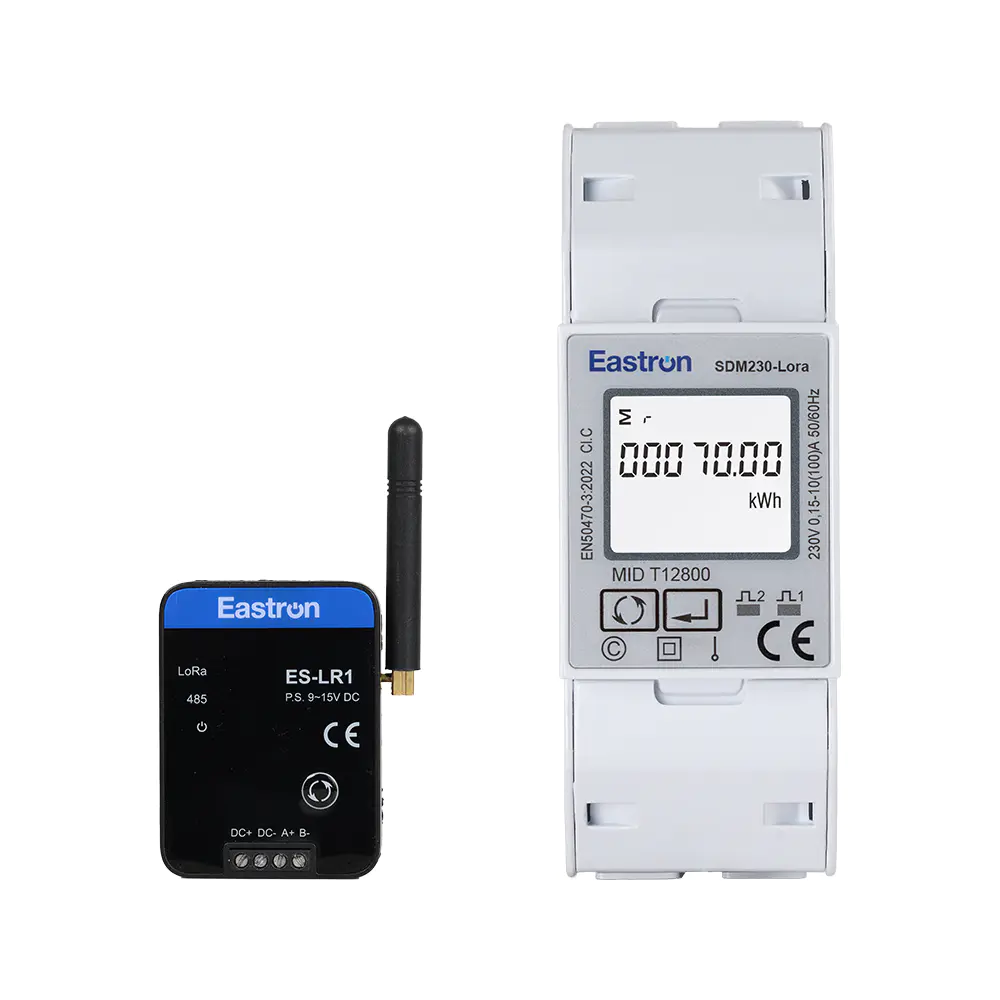

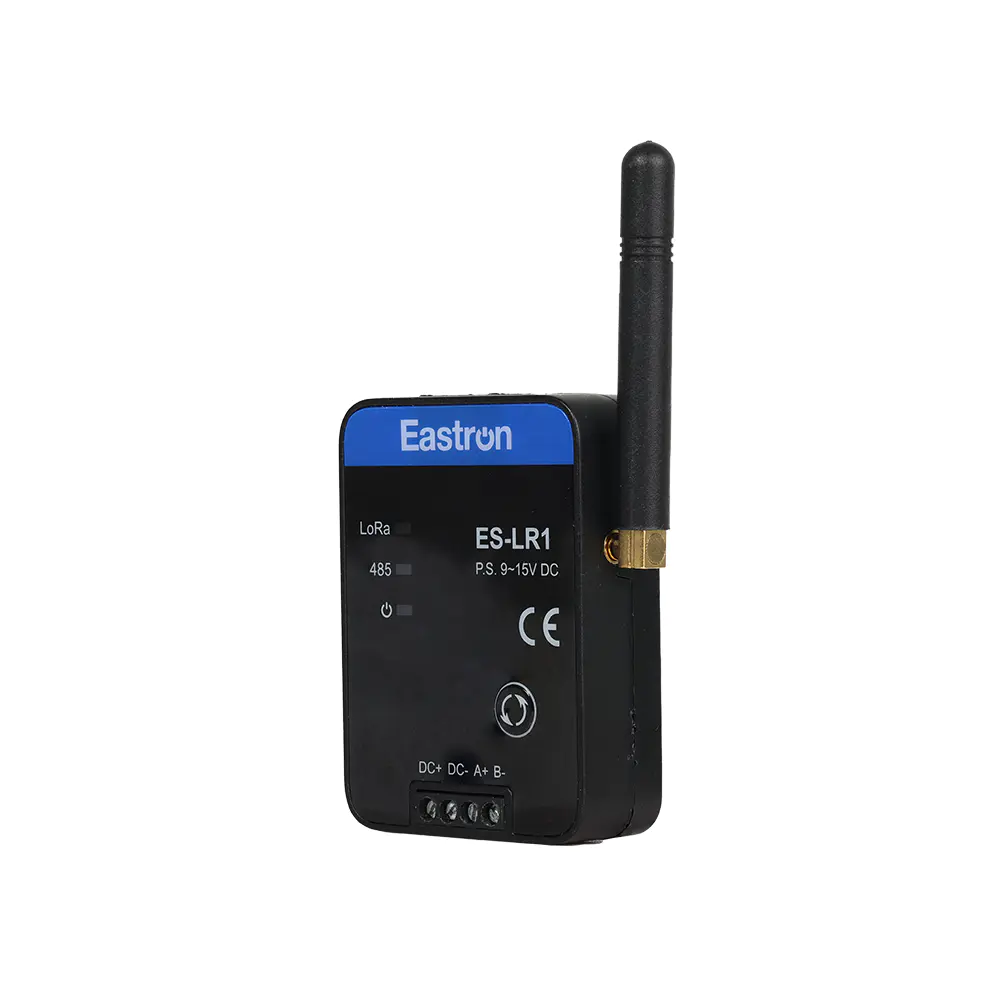

This product consists of two parts: the SDM230-Lora meter and the ES-LR1 receiver module. The meter supports direct connection up to 100A without external current transformers (CTs). Through LoRa point-to-point communication, the meter connects directly with the receiver module, enabling remote data collection without the need for gateways or network servers.

SDM230-Lora P2P is a single-phase multi-function energy meter suitable for scenarios such as residential complexes, commercial buildings, industrial facilities, and IoT-based energy management platforms.

Electrical Characteristics
Type of Measurement		RMS
Measurement Accuracy	Voltage	±0.5% / ±0.2%
	Current	±0.5% / ±0.2%
	Frequency	±0.1% / ±0.05%
	Power Factor	0.01 / ±0.005
	Active Power	±1% / ±0.5%
	Reactive Power	±2%
	Apparent Power	±1% / ±0.5%
	Active Energy	Class 1/0.5 IEC62053-21 Class B/C EN50470-3:2022
	Reactive Energy	Class 2 IEC62053-23

Input & Output
Input	Current	Rated Current (Ib/Iref)	10A
		Max Current(Imax.)	100A
		Min Current(Imin.)	0.15A
	Voltage	Rated Voltage (Un)	230V
		Voltage Range	100~277V AC (L-N)
Output	SDM230-Lora	2 Pulse Outputs +LoRa
	ES-LR1	RS485 Modbus RTU + LoRa

Communication
SDM230-Lora
Interface	LoRa
Protocol Standard	Four-Faith Private Protocol
Operating Mode	Transparent Mode
Operating Frequency Band	868MHz
Bandwidth	125KHz
Transmit Power	Max 22dBm
Air Data Rate	977bps (supports Spreading Factor SF10)

ES-LR1
Interface 1	RS485
Interface 1 Protocol	Modbus-RTU
Communication Address	253
Transmission Mode	Half Duplex
Data Type	Floating Point
Transmission Distance	1000m Maximum
Transmission Speed	2400/4800/9600(Default)/19200 bps
Parity	NONE(Default)/ODD/EVEN
Stop Bits	1/2
Response Time	<100 ms
Interface 2	LoRa
Protocol Standard	Four-Faith Private Protocol
Operating Mode	Transparent Mode
Operating Frequency Band	868MHz
Bandwidth	125KHz
Transmit Power	Max 22dBm
Air Data Rate	977bps (supports Spreading Factor SF10)
