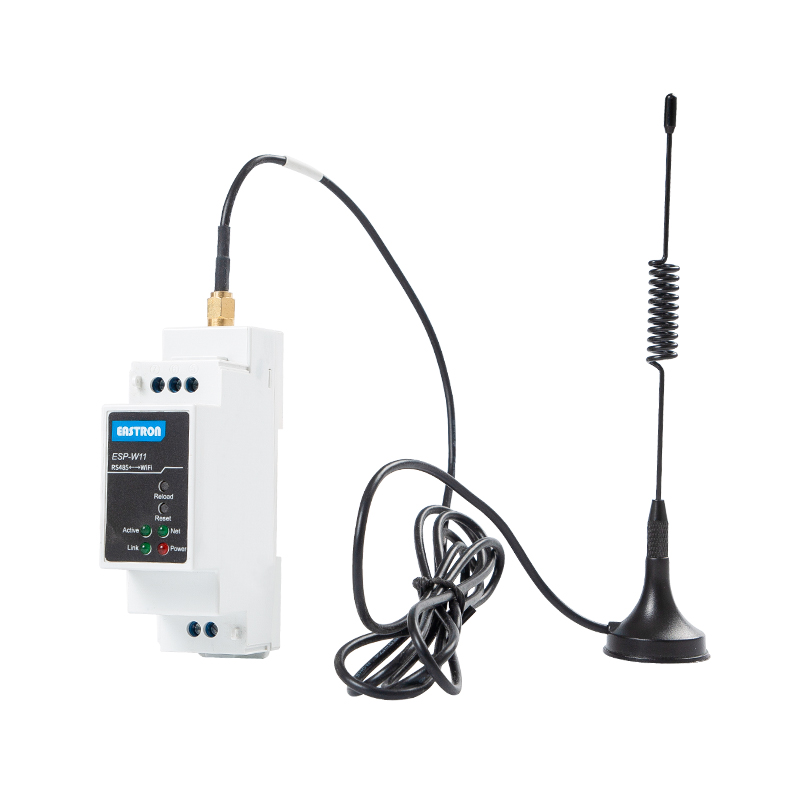

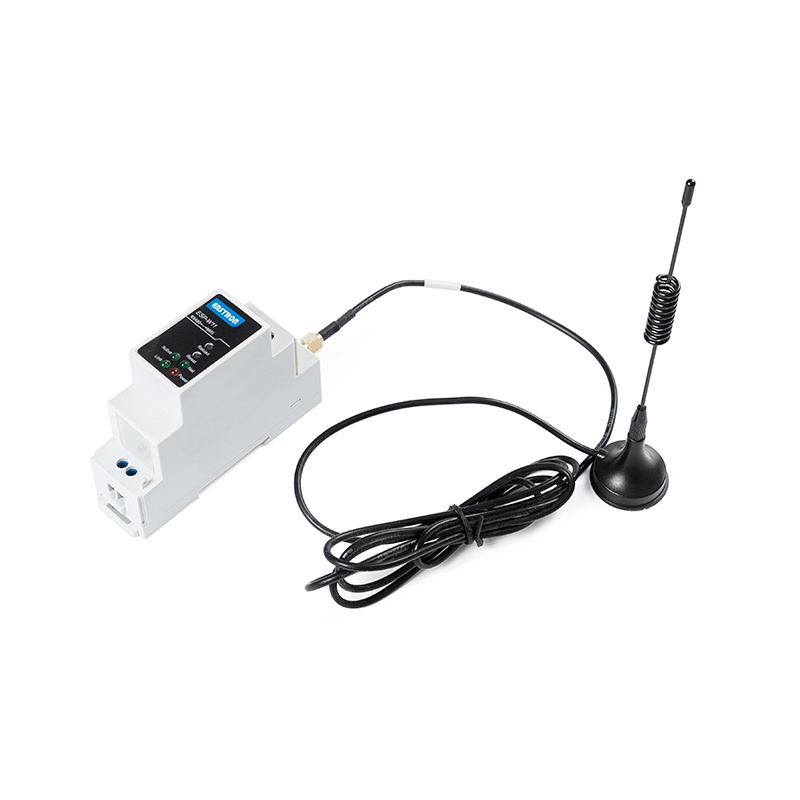

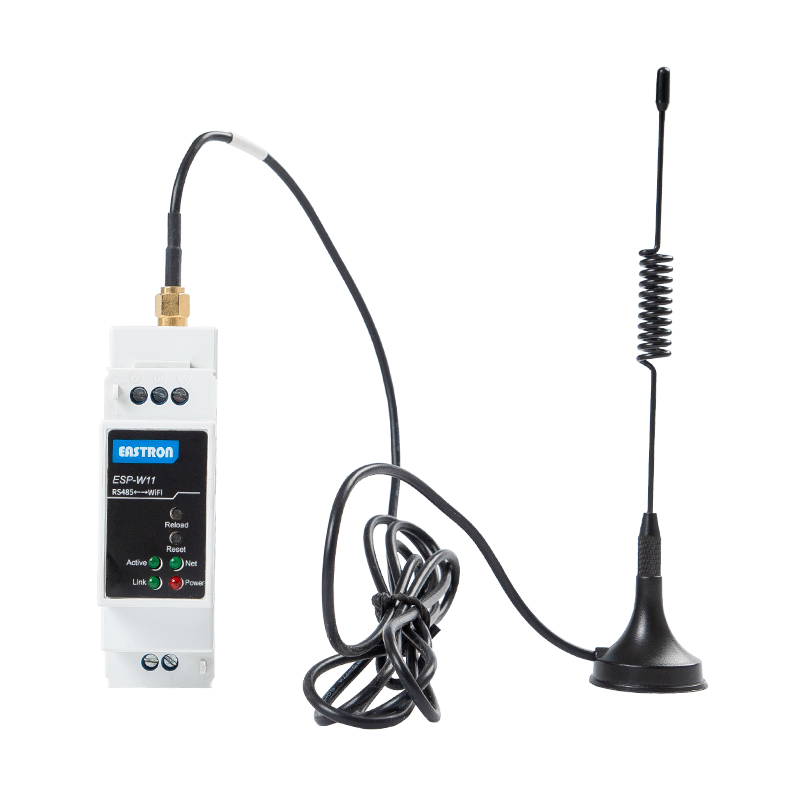

ESP-W11

Din Rail RS485 to WIFI Converter for IOT Solutions

  • Small Size, Din Rail Mounting
  • RS485 To WiFi Conversion
  • Webpage Easy Configuration or PC IOTService Tool
  • Support TCP/UDP/MQTT/HTTP/WebSocket Protocol
The ESP-W11 is a din rail RS485 to wifi converter for IOT solutions. It provides a RS485 interface to TCP/IP data transfer product.
The ESP-W11 integrate TCP/IP controller, memory, Wi-Fi transceiver, RS485 and integrates a fully developed TCP/IP network stack. ESP-W11 also includes an embedded web server used to configure device.
The ESP-W11 using highly integrated hardware and software platform, it has been optimized for all kinds of applications in the industrial control, smart grid, personal medical application and remote control that have lower data rates, and transmit or receive data on an infrequent basis.
Product parameters
Basic Frequency 160MHz
Flash 2MB
SDRAM 352KB
Operating System mbed
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, uPNP, NTP, Modbus TCP
Security Protocol TLS v1.2 AES 128Bit DES3
Network Mode STA/AP/STA+AP
Transmit Power 802.11b: +18dBm(Max.) 802.11g: +16dBm(Max.) 802.11n: +15dBm(Max.)
Receive Sensitivity 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Wi-Fi Security WEP64/WEP128/TKIP/ AES
Port Number 1 RS485
Data Bits 7,8
Stop Bit 1,2
Check Bit None,Even,Odd
Baud Rate TTL:600bps~230400bps
Flow Control No Flow control Software Xon/ Xoff flow control
Configuration Web or  IOTService PC Software
Size 102.03 x 64.95 x 27.50 mm
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH
Input Voltage Protoss-PW11-H:100~240VAC@50~60Hz Protoss-PW11-M:9~48VDC@1A
Working Current ~200mA
Power <700mW
Wi-Fi Standard 802.11 b/g/n
Work Temp. -40 ~ 85°C

Wiring and Dimension [mm:]
