SDM630-TCP

MID & UL Approved Ethernet Din Rail Three Phase Energy Meter for EV Charging Metering

Name: MID & UL Approved Ethernet Din Rail Three Phase Energy Meter for EV Charging Metering
Rating: 5 (99 reviews)

Max.100A Direct Load

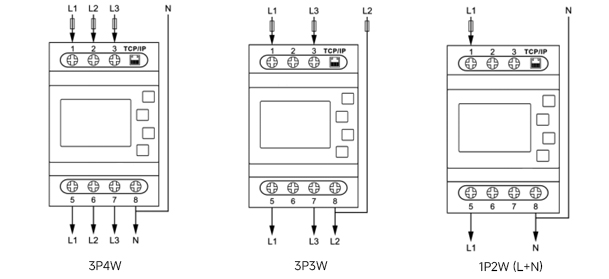

Work with 3P4W/3P3W/1P2W

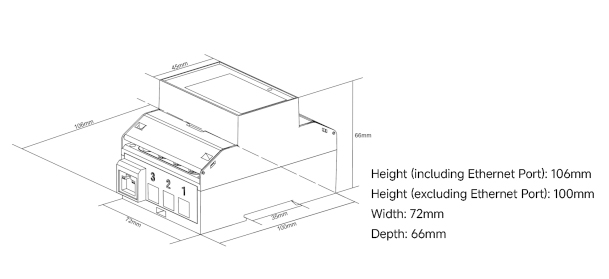

4 Module 72mm Wide
Multi-parameter Measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,
Bi-directional Measurement
Ethernet TCP Communication
MID & UL Certified

+86-400-996-9296

[email protected]

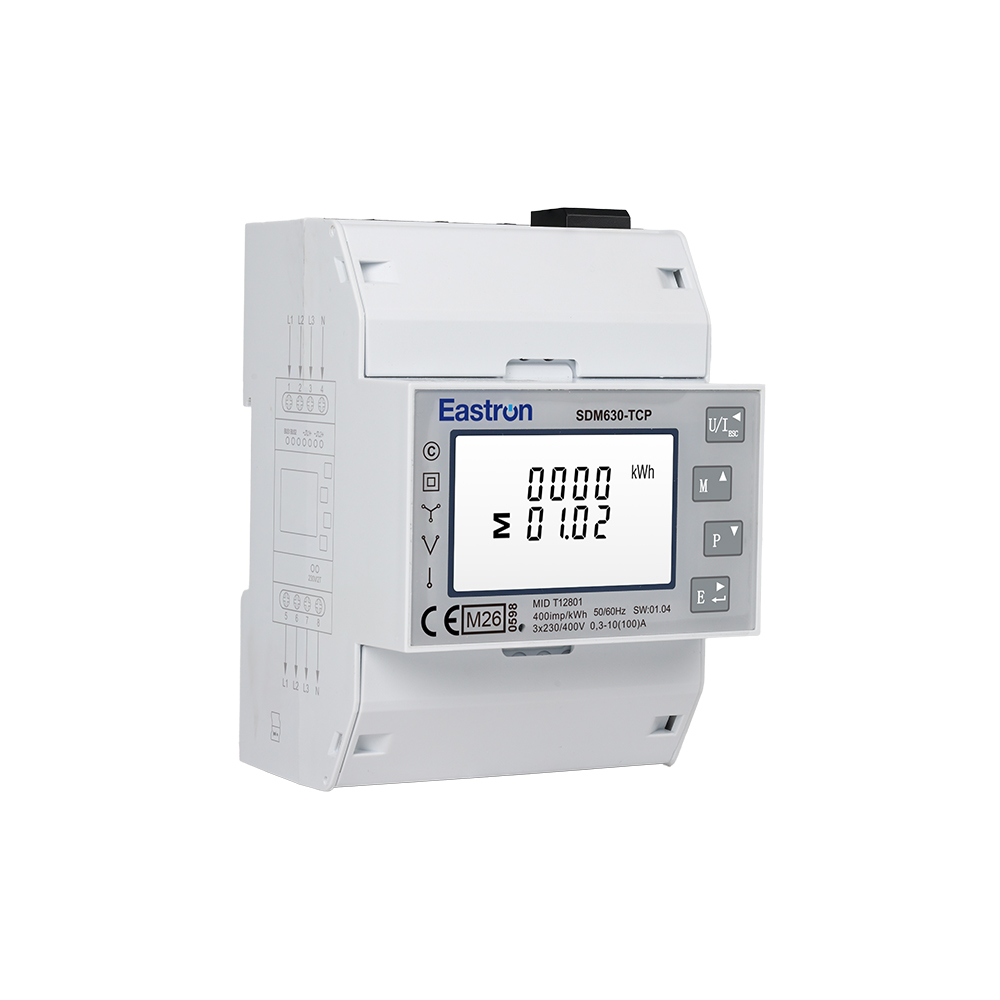

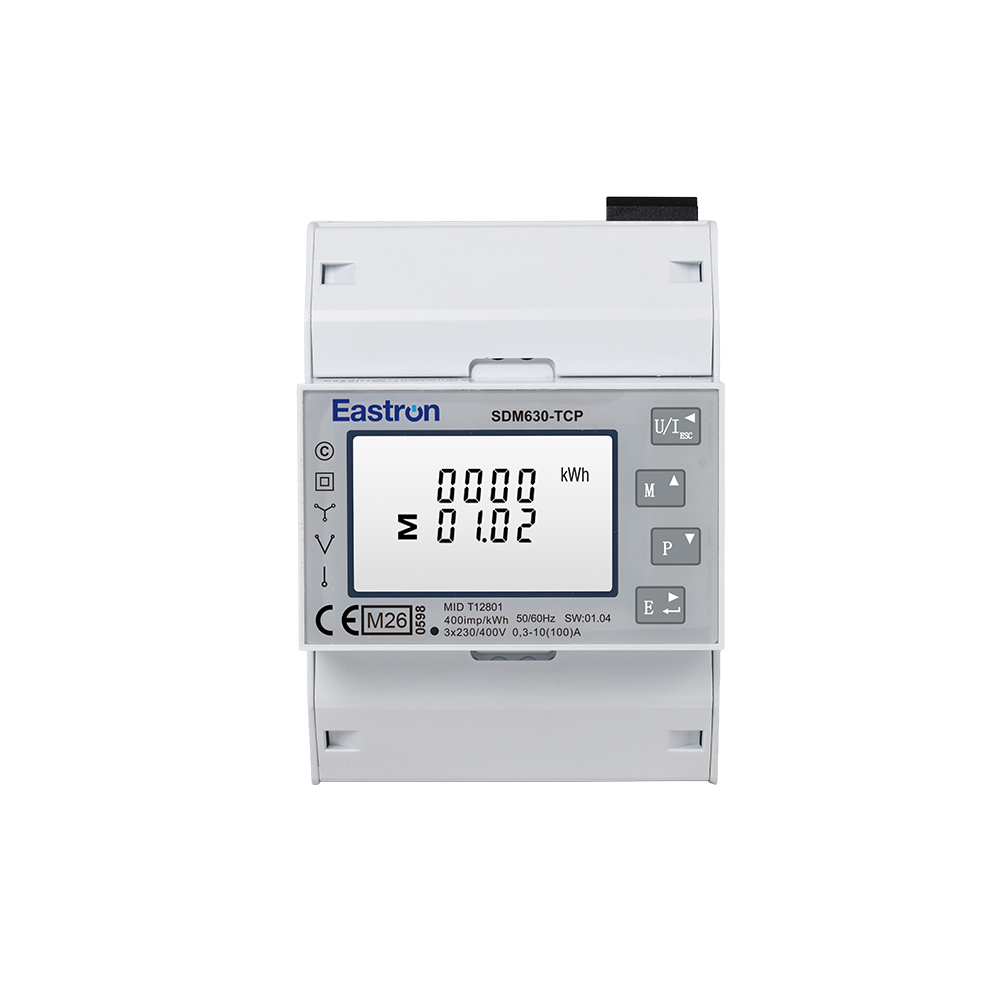

SDM630-TCP is a new multi-function energy meter designed by EASTRON. The meter can work with 1p2w, 3p3w, 3p4w electricity grid. It provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy etc. The meter supports Max.100A direct connection, saving the cost and avoiding the trouble to connect external CTs, giving the unit a cost-effective and easy operation.

The SDM630-TCP smart energy meter is equipped with a Ethernet communication port and MODBUS-TCP protocol is adopted for remote reading and programming. The meter has a big back-lighted LCD showing data and uses 4 touch keypads in front for data checking and programming.

Electrical Characteristics
Type of Measurement	RMS including harmonics on three phase AC system (3P, 3P+N)
Measurement Accuracy	Voltage	±0.5%
	Current	±0.5%
	Frequency	±0.2%
	Power Factor	±1%
	Active Power	±1%
	Reactive Power	±1%
	Apparent Power	±1%
	Active Energy	Class 1 or 0.5 IEC 62053-21 Class B or C EN50470-3:2022
	Reactive Energy	Class 2 IEC62053-23

Input & Output
Input	Current	Rated Current (Ib/Iref)	10A
		Max Current(Imax.)	100A
		Min Current(Imin.)	0.3A
		Starting Current	40mA
	Voltage	Rated Voltage (Un)	3*230/400VAC
	Voltage	Voltage Range	100 ~ 276V AC (L-N) 173 ~ 480V AC (L-L)
Output	Ethernet Modbus TCP

Ethernet Modbus TCP Communications
Communication Address	1~247
IP	192.168.1.200 (default)
Port	502
MASK	255.255.255.0
Gateway	192.168.1.1
DHCP	Off (default)
