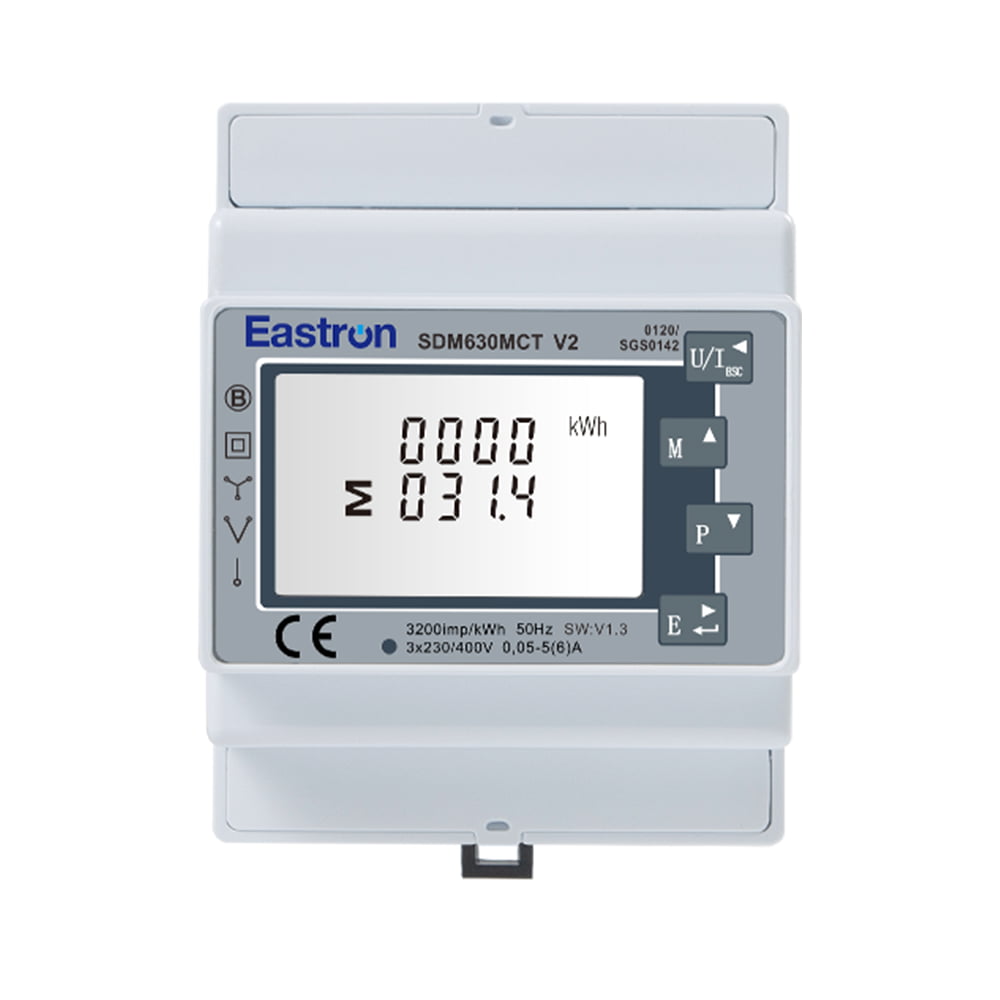

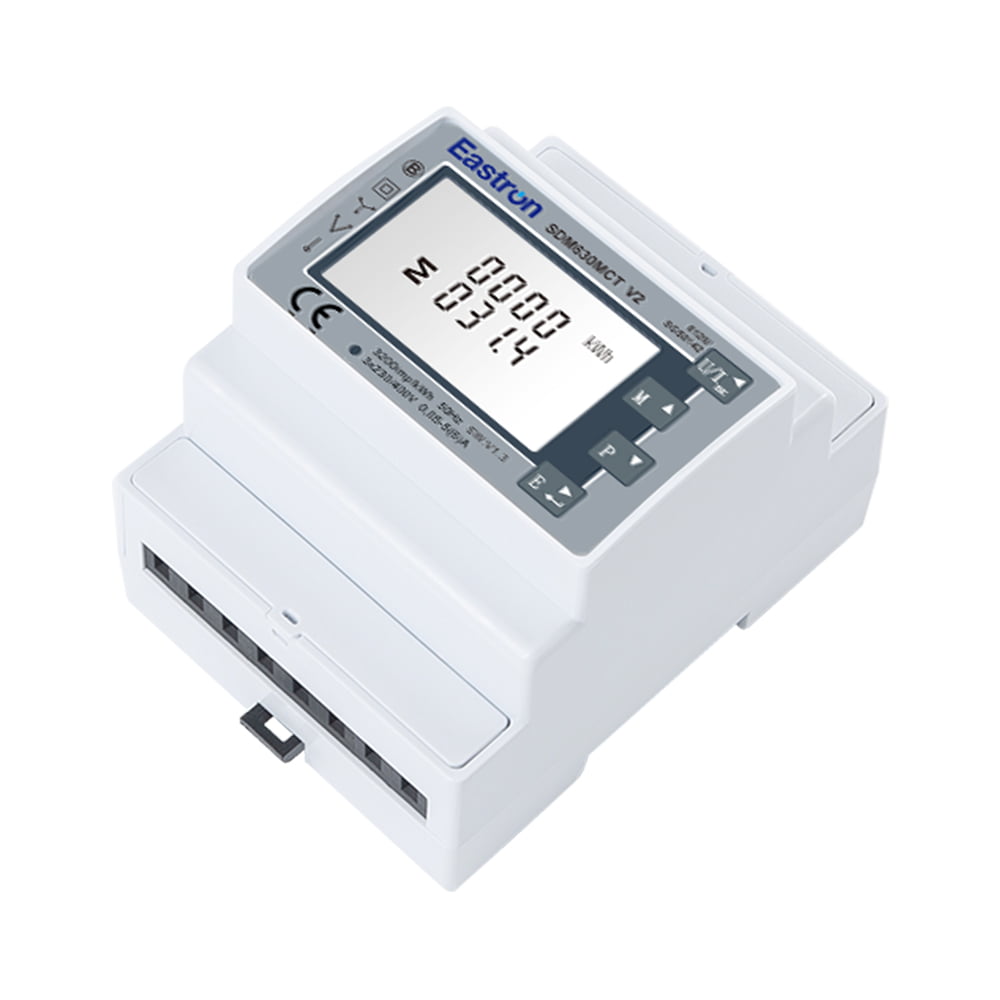

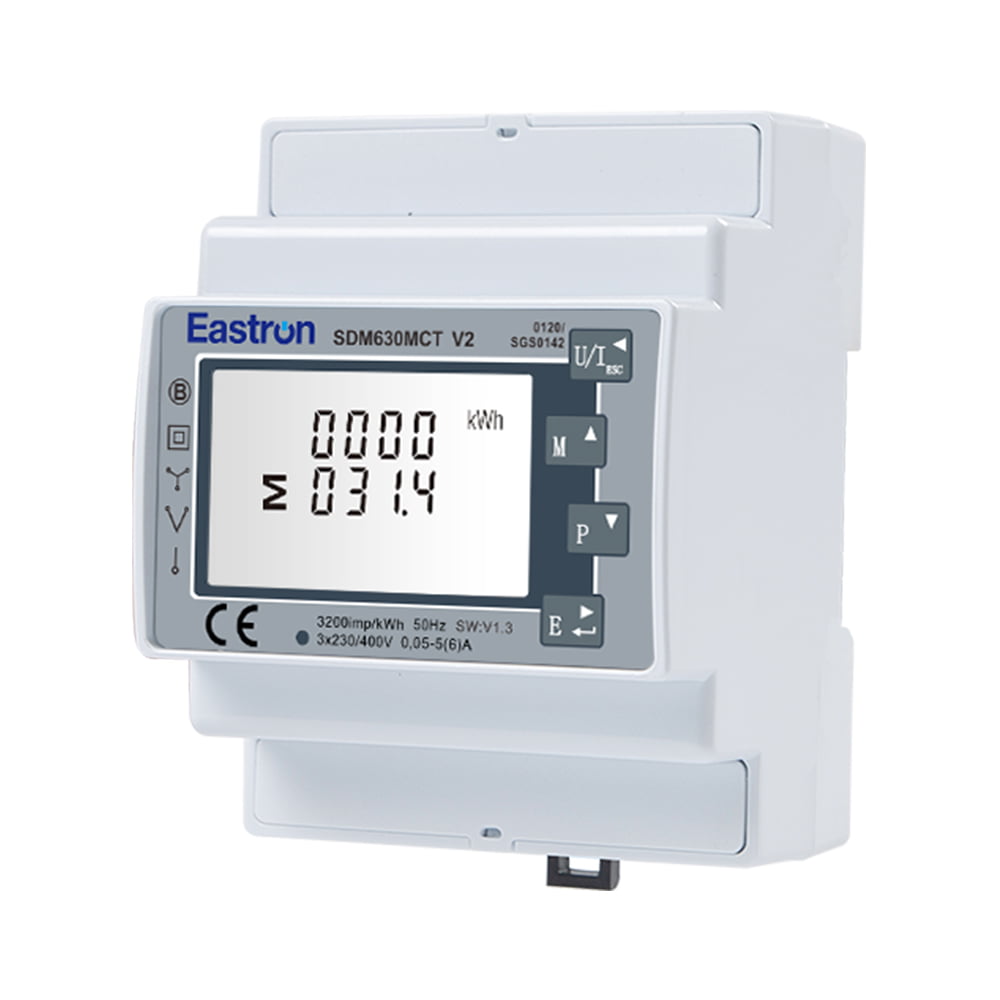

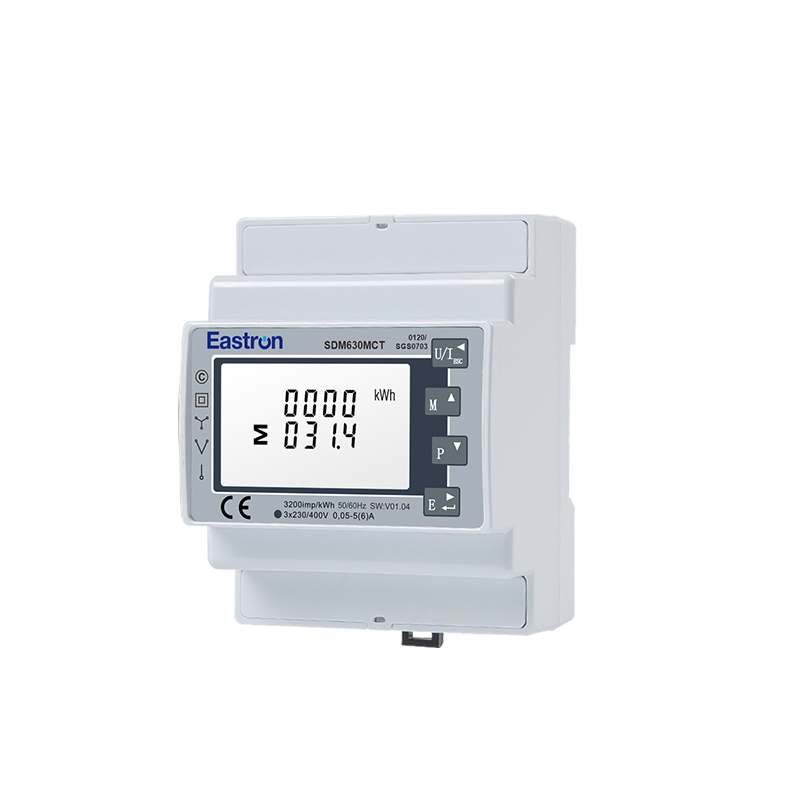

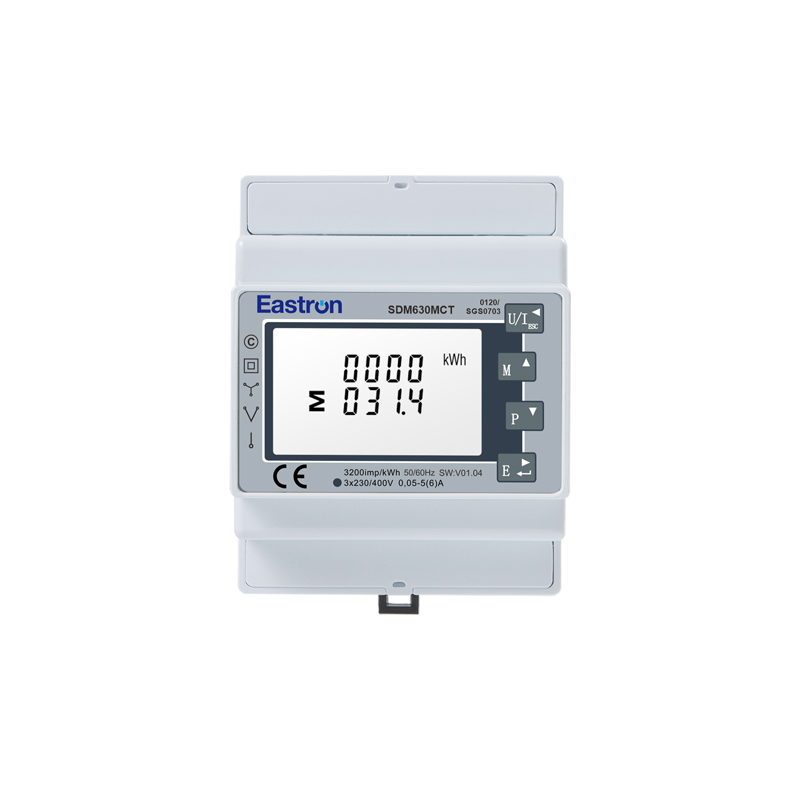

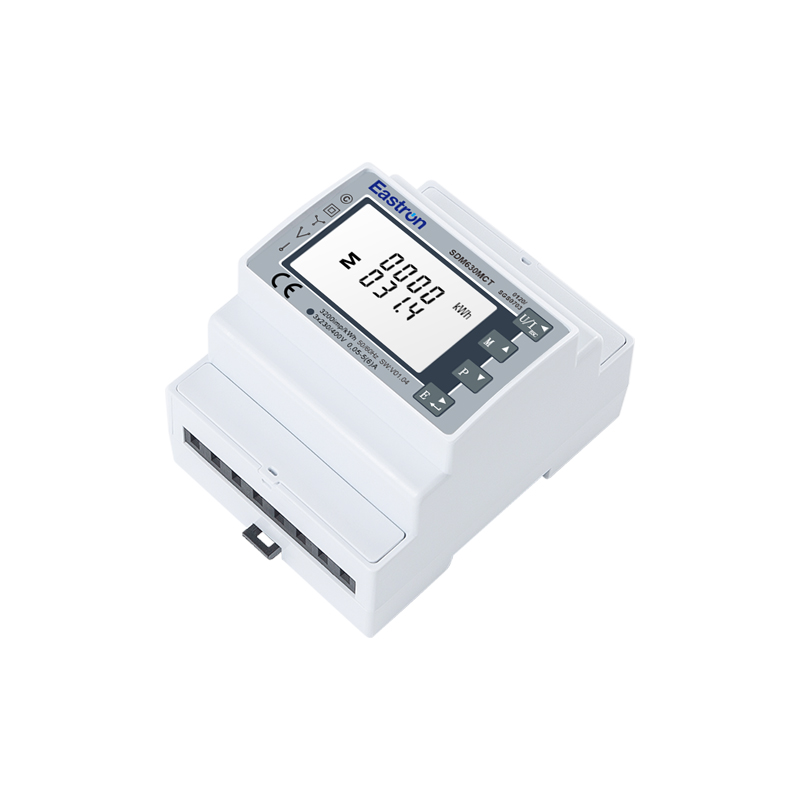

SDM630MCT V2

MID/ETL CT Type Din Rail Three Phase Multi-function Energy Meter for EV Charging Metering

  • CT & PT operated
  • Work with 3P4W/3P3W/1P2W
  • 4 Module 72mm wide
  • Multi-measurement:
  • kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
  • Bi-directional measurement
  • 2 Pulse outputs
  • RS485 Modbus
The SDM630MCT V2 is MID/ETL CT Type Din Rail Three Phase Multi-function Energy Meter for EV Charging Metering. Suitable for monitoring energy consumption and many other electrical parameters.The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 1A/5A input CTs. Build-in interface provides pulse and RS485 Modbus RTU outputs.
SDM630MCT V2 has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. The instrument traceable number is 0120/SGS0142.The meter is also ETL listed by intertek.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0

EN50470-1/3 Class B and C

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



CT Secondary

1A/5A

CT Primary

1-9999A

Min Current

0.25A

Starting Current

20mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630MCT/ MT

2 Pulse Outputs + RS485 Modbus

SDM630MCT-2T/ SDM630MCT-Mbus-2T

2 Pulse Outputs + RS485 Modbus + 2T (Dual Power Source)

SDM630MCT-Mbus

2 Pulse Outputs + M-bus EN13757

SDM630MCT-LoRa

2 Pulse Outputs + LoraWAN



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2



LoRaWAN Communications

Communication Frequency

EU868/ AS923/ AU915/ US915, etc.

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
