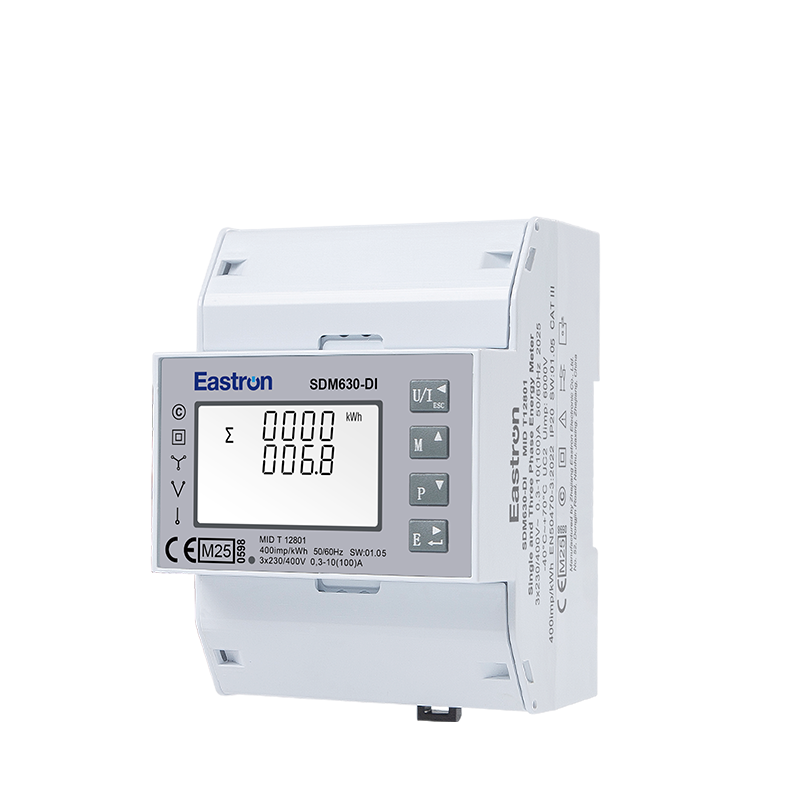

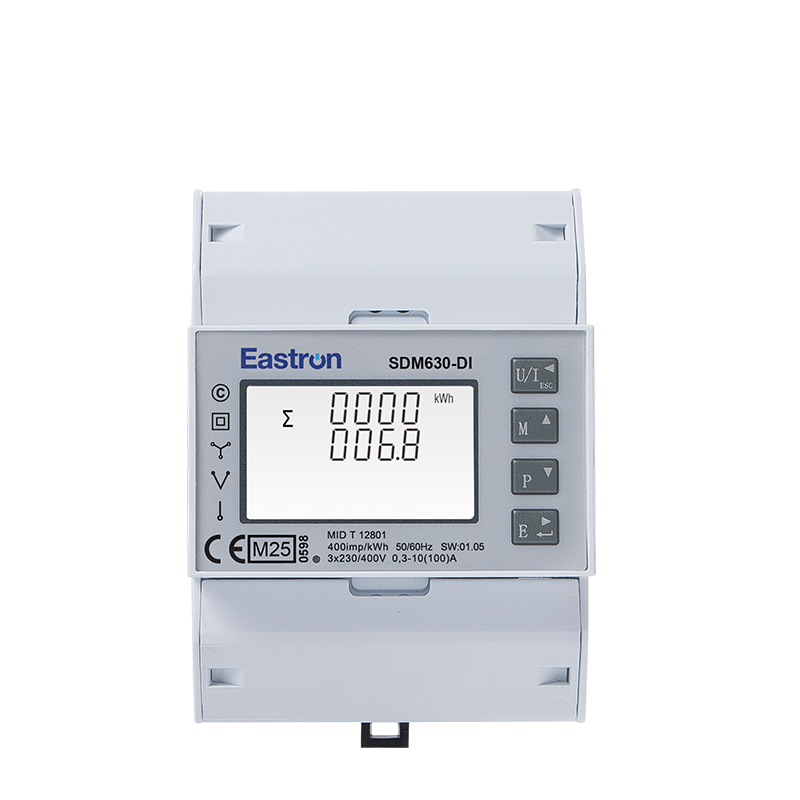

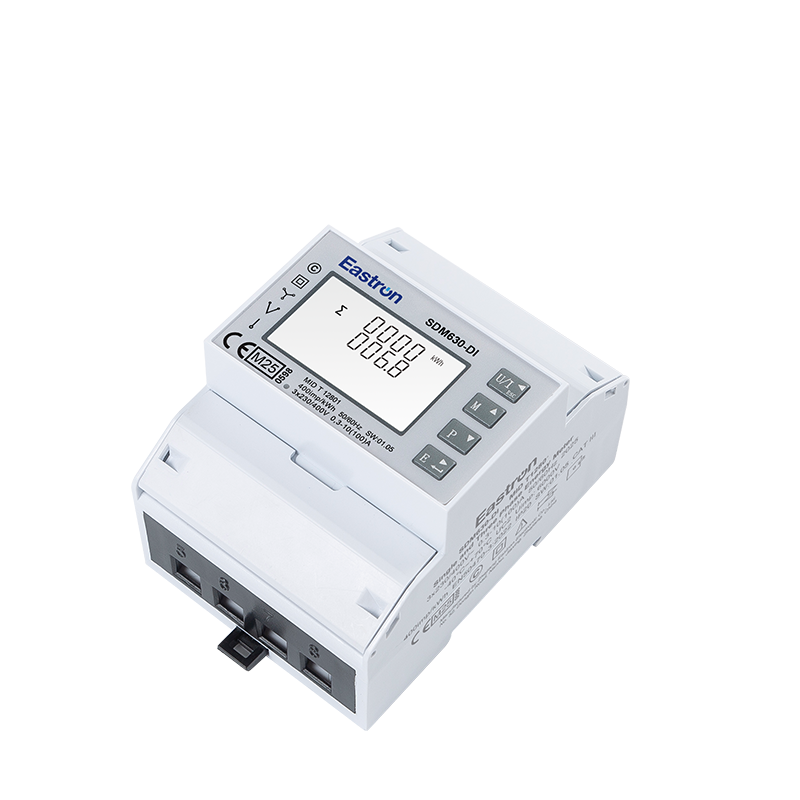

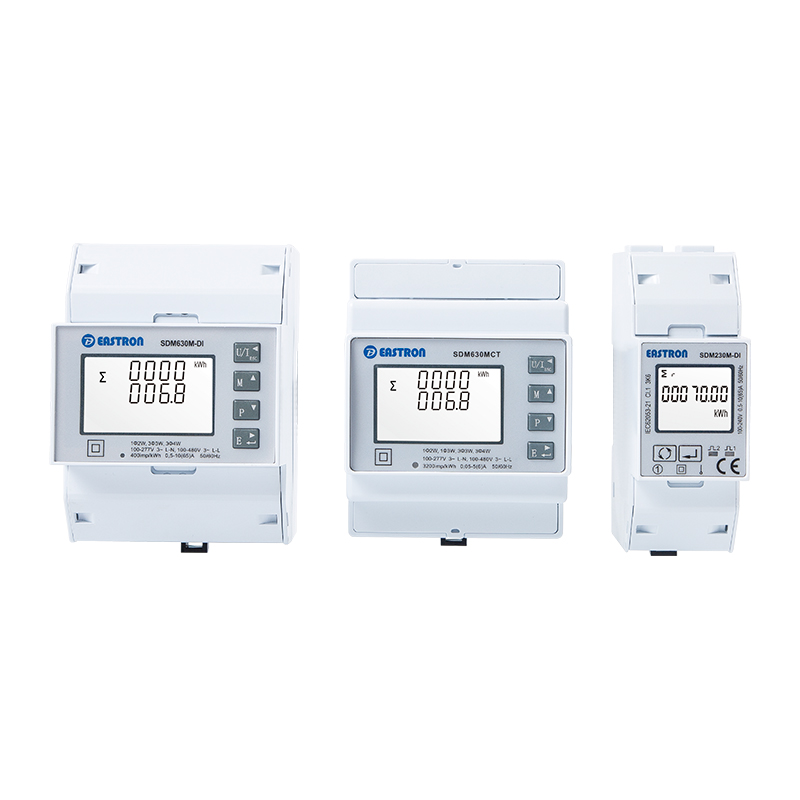

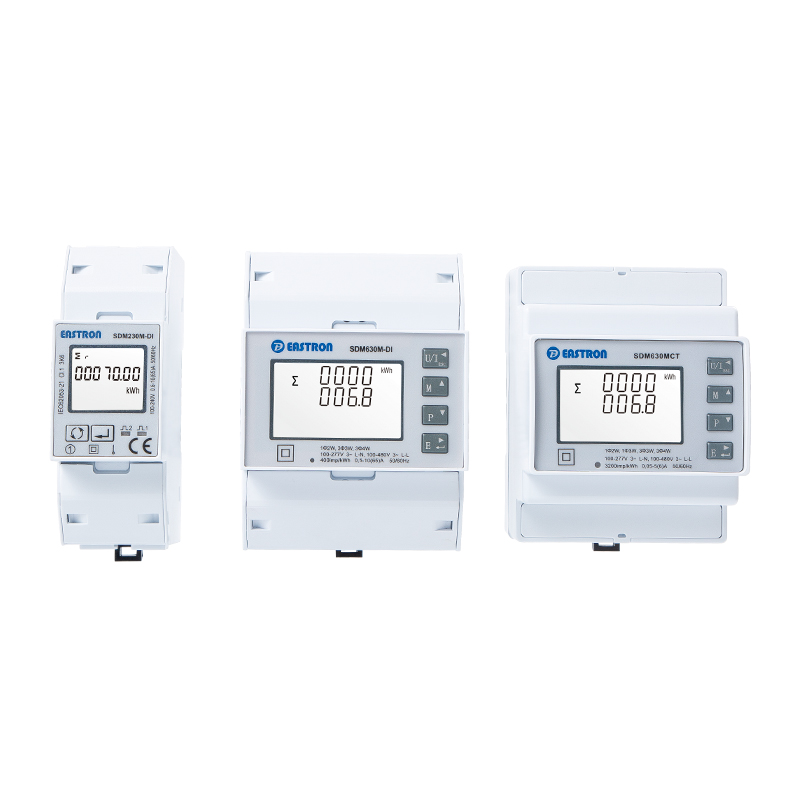

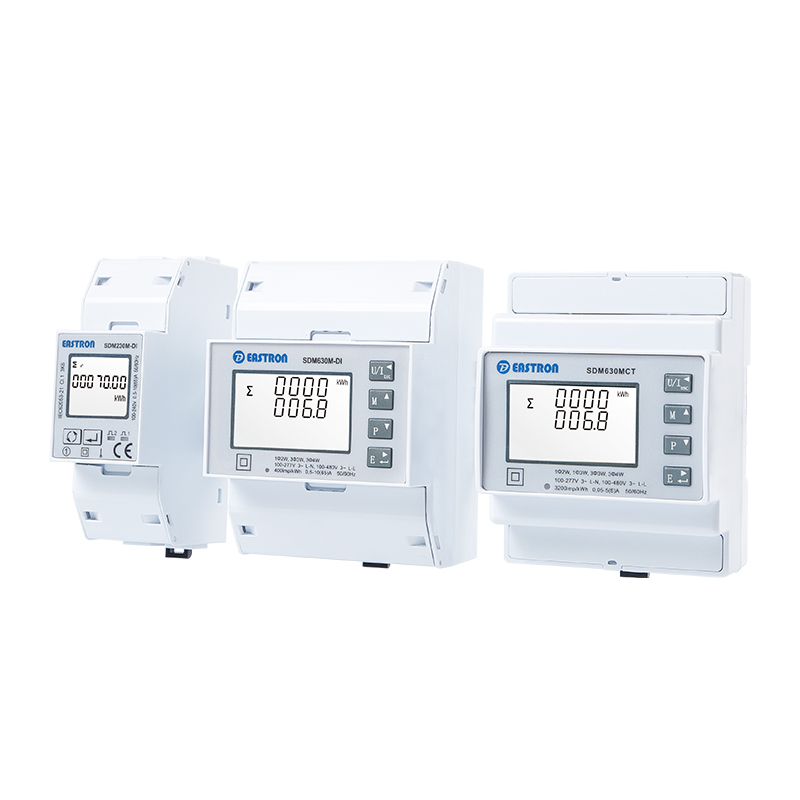

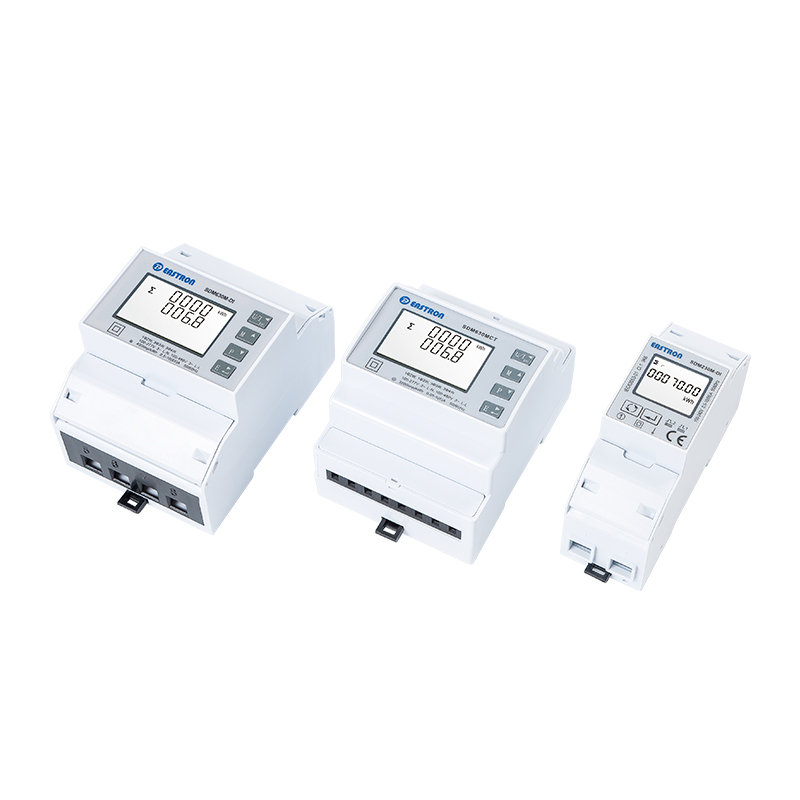

SDM630M-DI

ETL Approved Three Phase Din Rail Type Multi-function Energy Meter for EV Charging Metering

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • For 22kW or below AC EV Charging Piles
  • Digital Input + RS485 Modbus RTU
  • Max. 100A Direct Load
  • 4 Modules 72mm Width
  • ETL Approved by intertek
  • 1P2W/1P3W/3P3W/3P4W

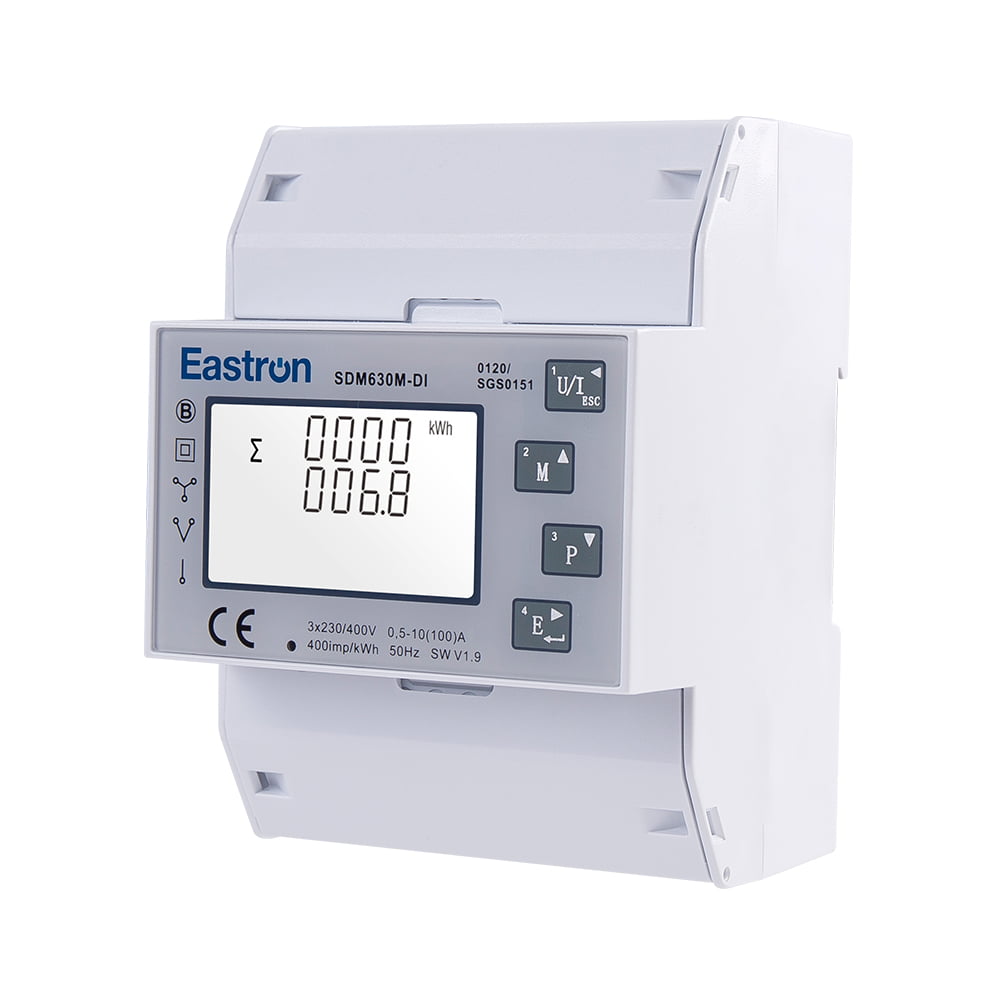

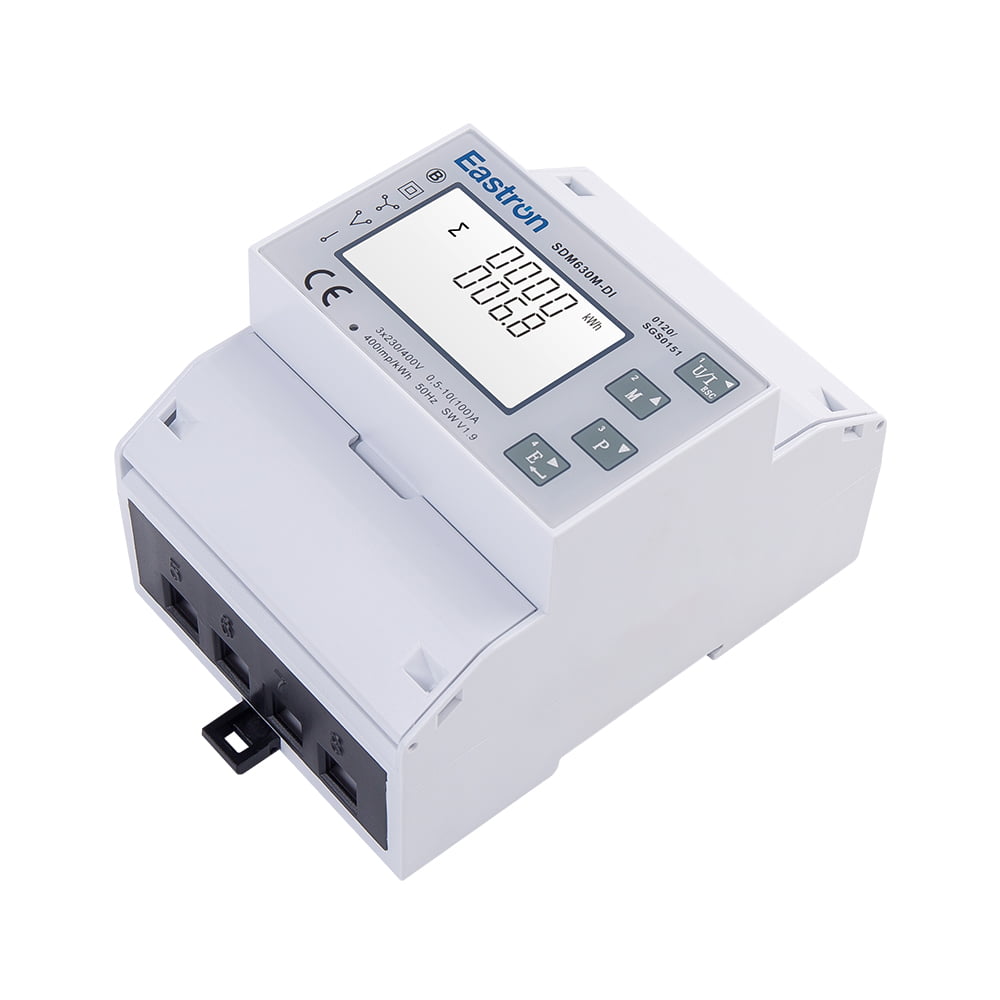

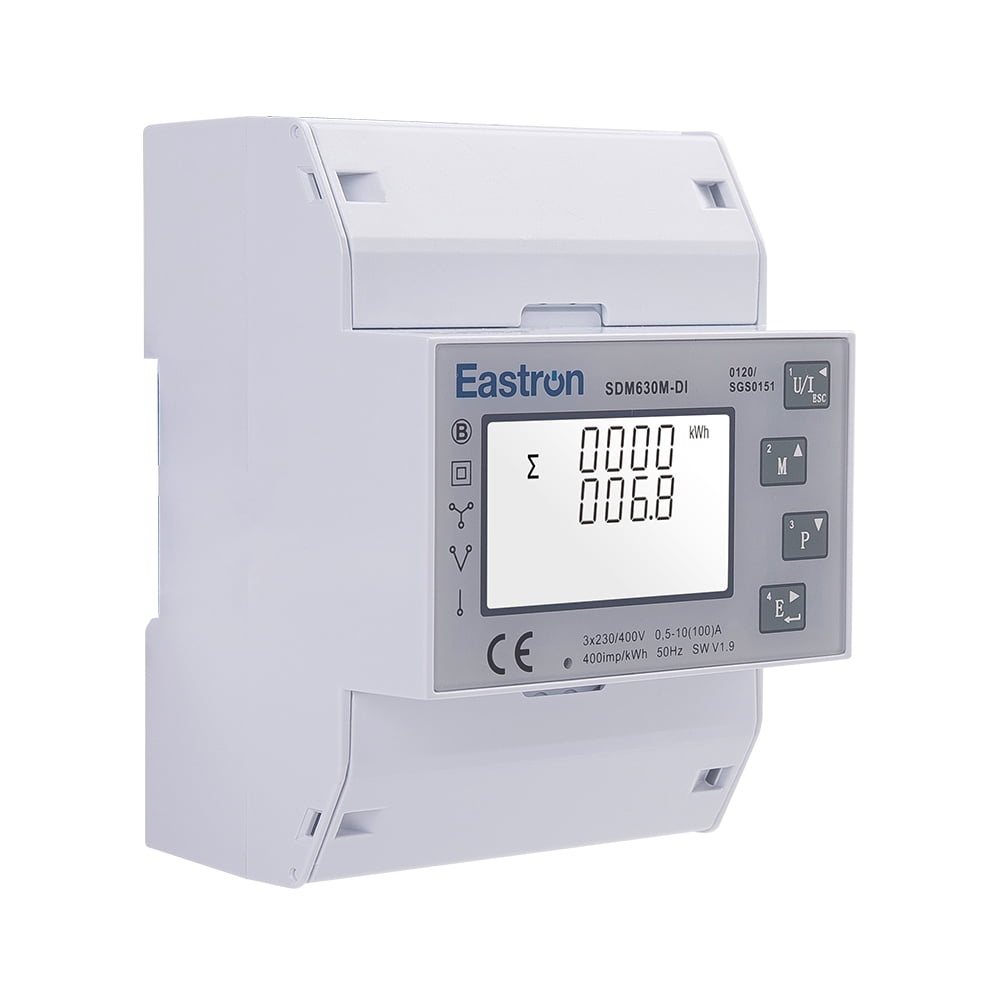

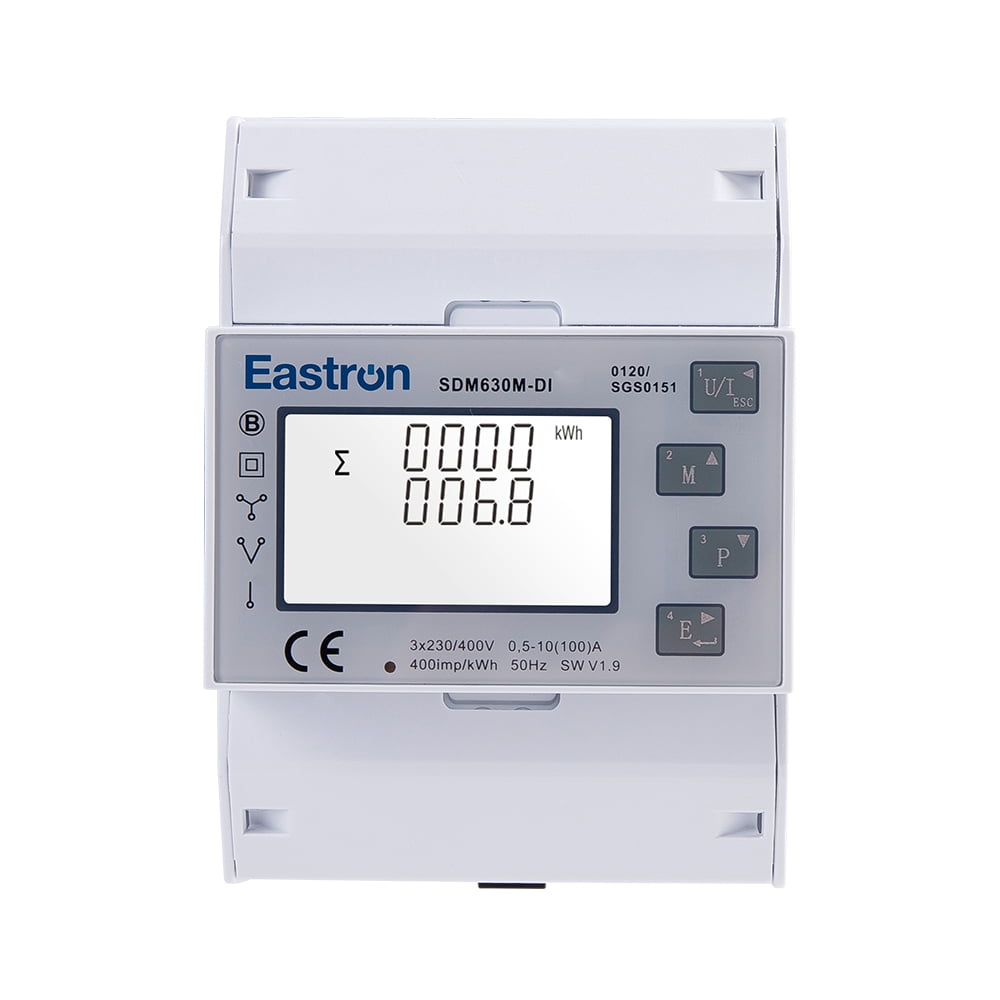

SDM630M-DI is a ETL Approved Three Phase Din Rail Type Multi-function Energy Meter for EV Charging Metering.
The model can measure and display the characteristics of 1p2w, 3p3w and 3p4w supplies, including voltage, current, power, active and reactive energy imported or exported. Energy is measured interims of kWh, Karh. demand maximal current can be measured over preset periods of up to 60 minutes.
lt can directly connect to Max.100A current, saving the cost to install external CT. Built-in interfaces provides digital inputs and RS485 Modbus RTU outputs.
The meter is widely used in applications like AC EV Charging Piles. It has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. and the ETL is approved by Intertek.

Electrical Characteristics

Type of Measurement

RMS including harmonics on three phase AC system (3P, 3P+N)

Measurement Accuracy

Power

0.5% of range maximum

Active Energy

IEC 62053-21 Class 1.0

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

65A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V L-N  / 120V L-N

Operational Voltage

80%~120% of Un

Output

SDM630M-DI

2 Pulse Outputs+ RS485 Modbus + Digital Input

SDM630-Modbus / MT

2 Pulse Outputs + RS485 Modbus

SDM630-Mbus

2 Pulse Outputs + M-bus EN13757

SDM630-2T

2 Pulse Outputs+ RS485 Modbus + 2 Tariffs (Dual Power Source)



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

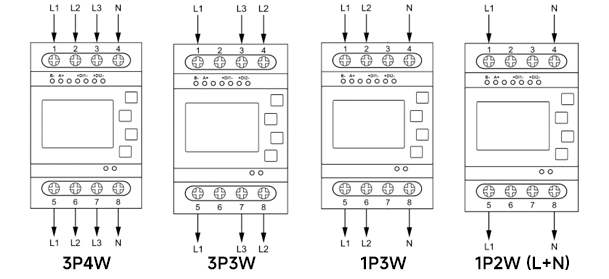

Wiring diagram

Wiring and Dimension [mm:]

Dimensions
