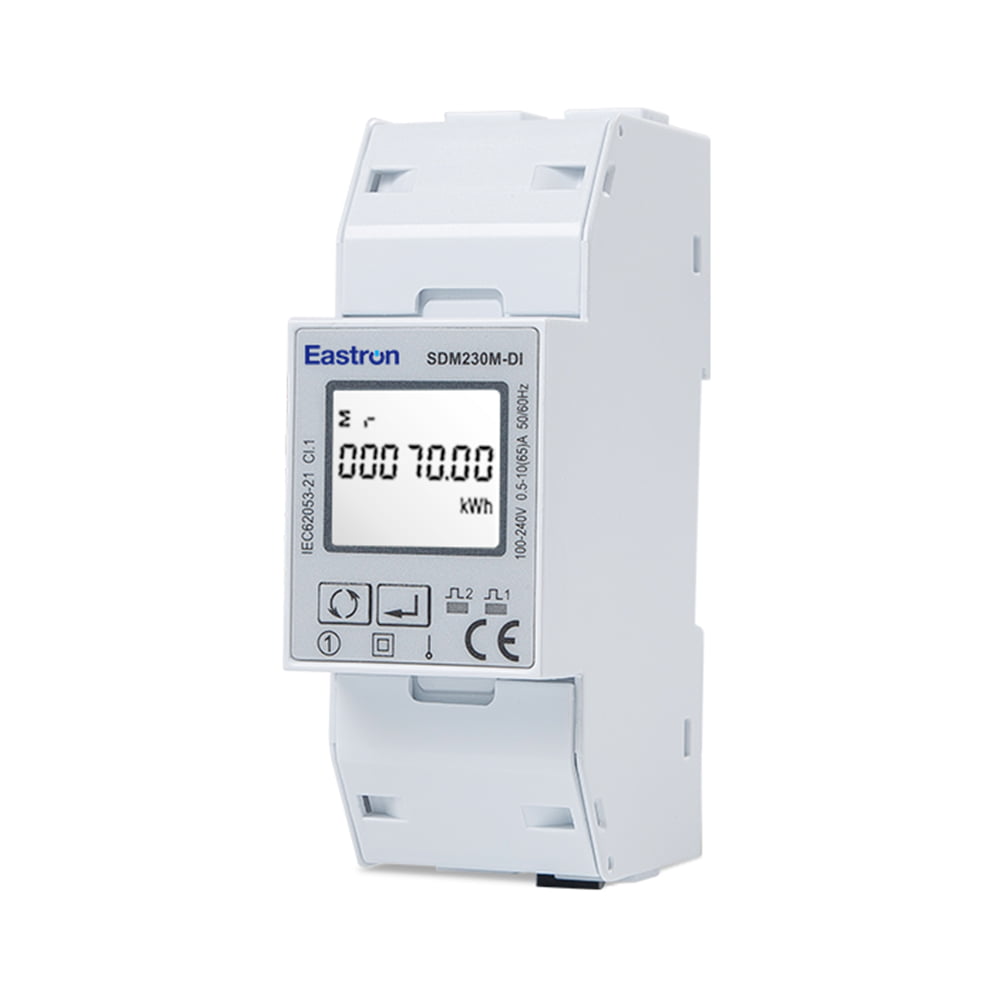

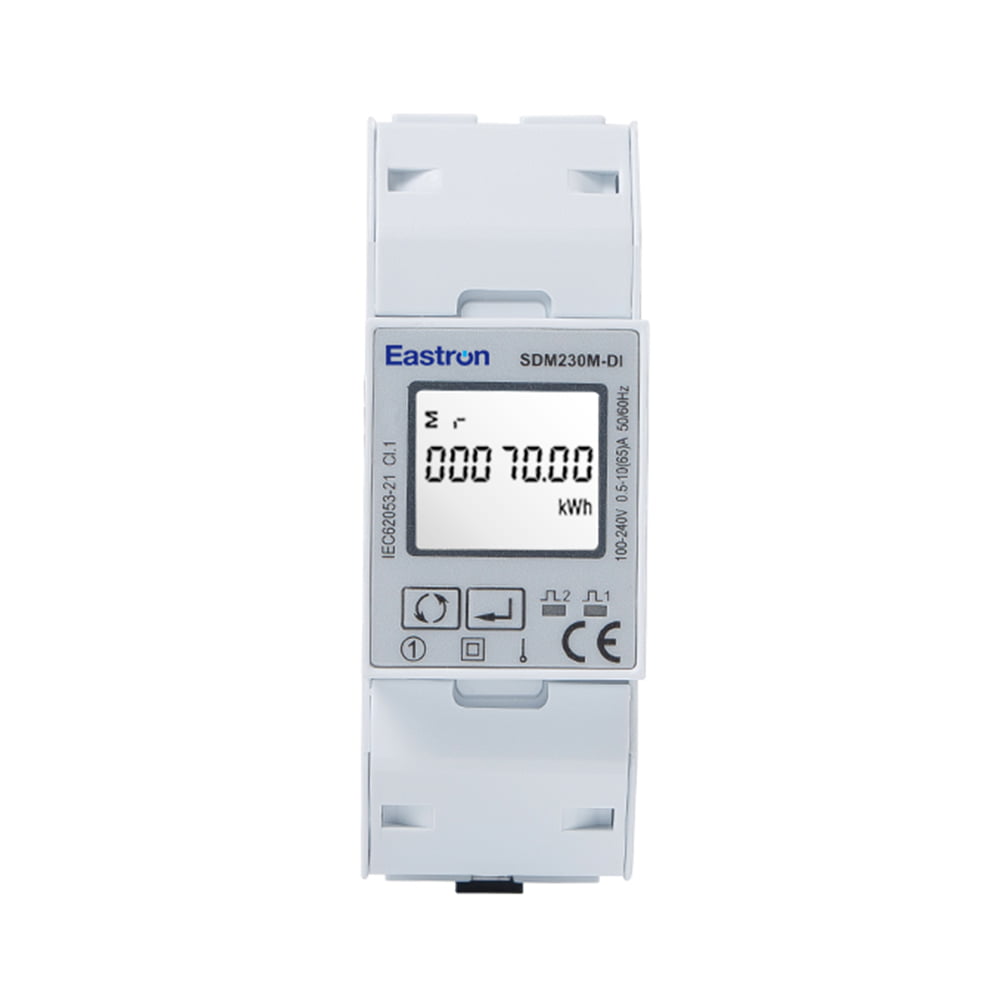

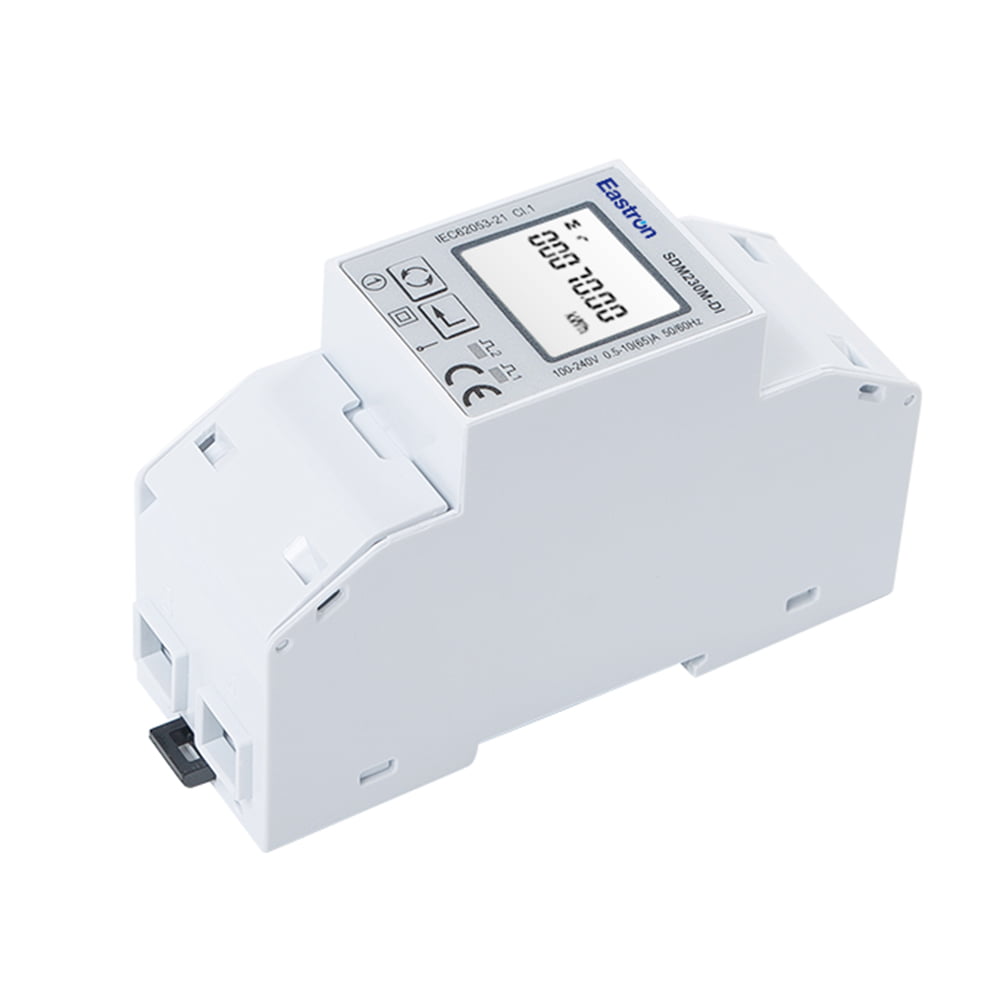

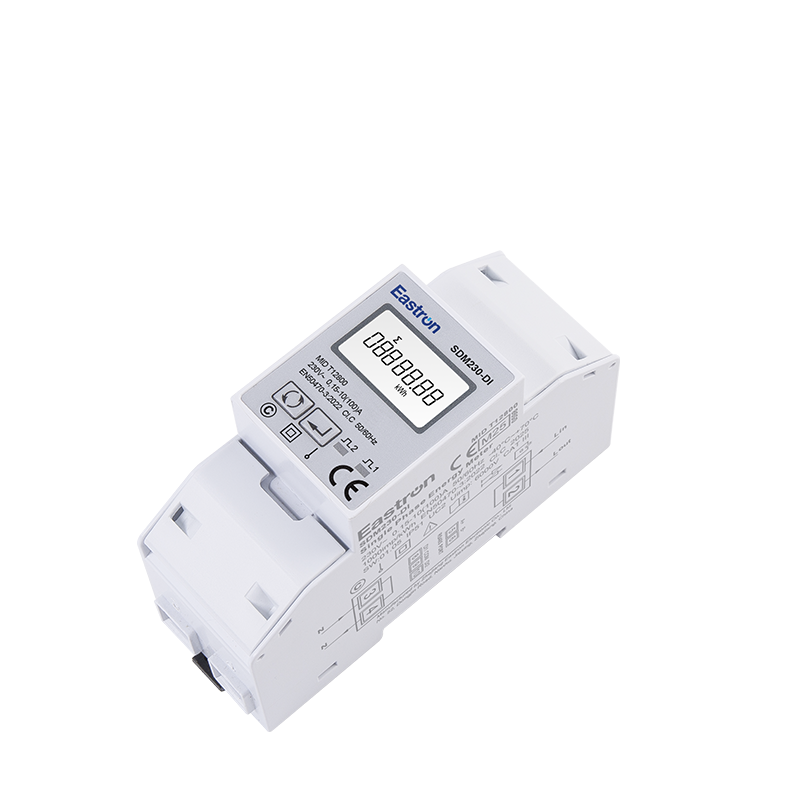

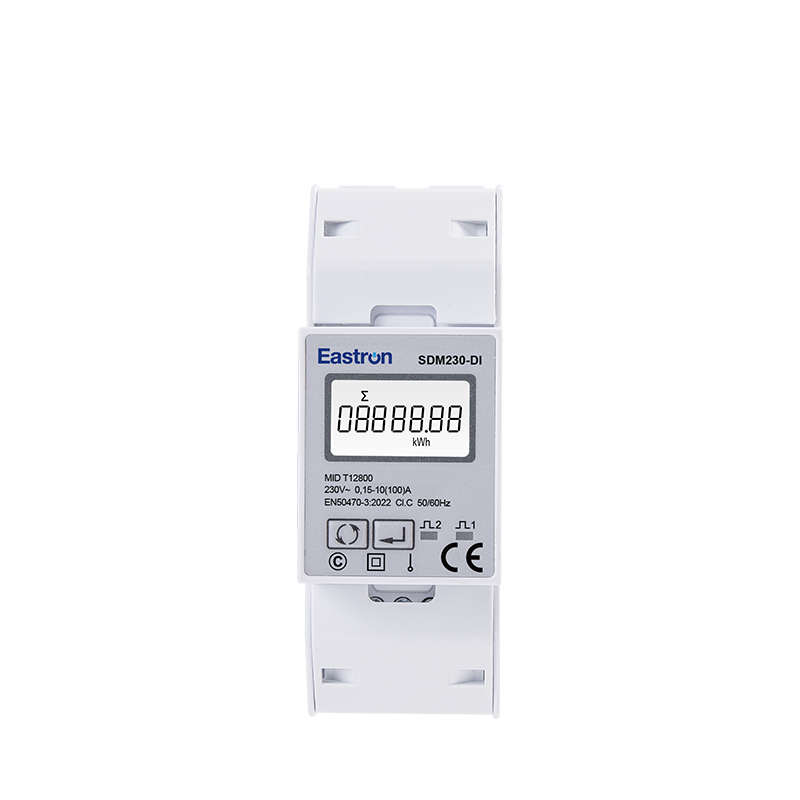

SDM230M-DI

ETL Approved Single Phase Din Rail Type Multi-function Energy Meter for EV Charging Metering

  • Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
  • For 7kW/11kW AC EV Charging Piles
  • Digital Input + RS485 Modbus RTU
  • Max. 100A Direct Load
  • 2 Module 36mm Width
  • ETL Approved by intertek
  • 1P2W
The SDM230M-DI is a ETL Approved Single Phase Din Rail Type Multi-function Energy Meter for EV Charging Metering. The model measures active energy, reactive energy, current, voltage, power, frequency, etc. It support Max. 100A direct connection, which is a perfect choice for 7kW or 11kW AC EV Charging Piles.
The meter support wide voltage range from 110V- 240V AC, besides a digital input port, it also provides a RS485 port for Modbus RTU communication.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Power

1% of range maximum

Active Energy

IEC62053-21 Class 1

Reactive Energy

IEC62053-23 Class 2

Frequency

0.2% of mid-frequency

Current

0.5% of range maximum

Voltage

0.5% of range maximum

Power Factor

1% of unity (0.01)



Input & Output

Input

Current



Rated Current (Ib/Iref)

10A

Max Current(Imax.)

65A

Min Current(Imin.)

0.5A

Starting Current

40mA

Voltage

Operation Voltage

100-240V

Output

SDM230-Pulse

2 Pulse Output for imp/exp. energy

SDM230-Modbus

2 Pulse Output + RS485 Modbus

SDM230-Mbus

2 Pulse Output + M-bus EN13757

SDM230-2T

2 Pulse Output + RS485 Modbus + 2 Tariffs (Dual Power Source)

SDM230M-DI

2 Pulse Output + RS485 Modbus + Digital Input



RS485 Modbus Communications

Communication Address

1~247

Transmission Distance

1000m Maximum

Transmission Speed

1200bps~38400bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Response Time

<100 mS



M-Bus EN13757-3 Communications

Communication Address

1~250

Transmission Distance

1000m Maximum

Baud Rate

300bps~9600bps

Parity

None (default), Odd, Even

Stop Bits

1 or 2

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

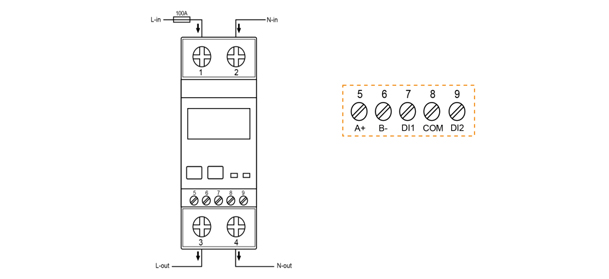

Wiring diagram

Wiring and Dimension [mm:]

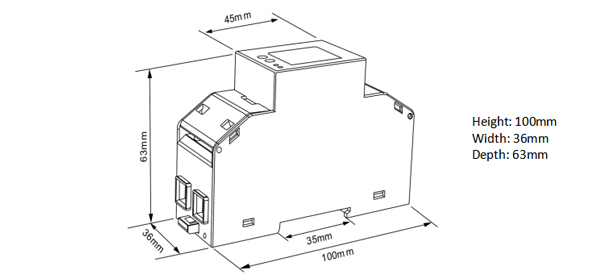

Dimensions
