1A / 5A CT Connection Three Phase Din Rail Multi-function Energy Meter for EV Charging Metering

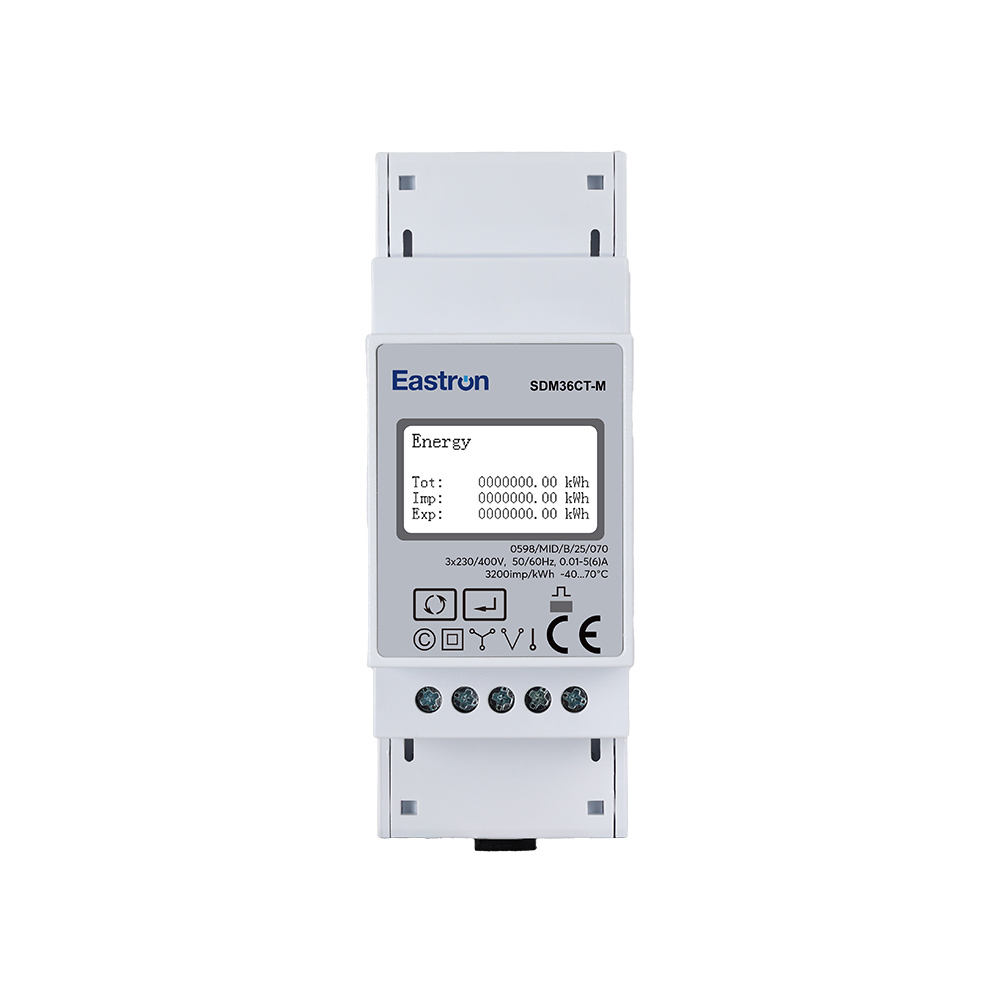

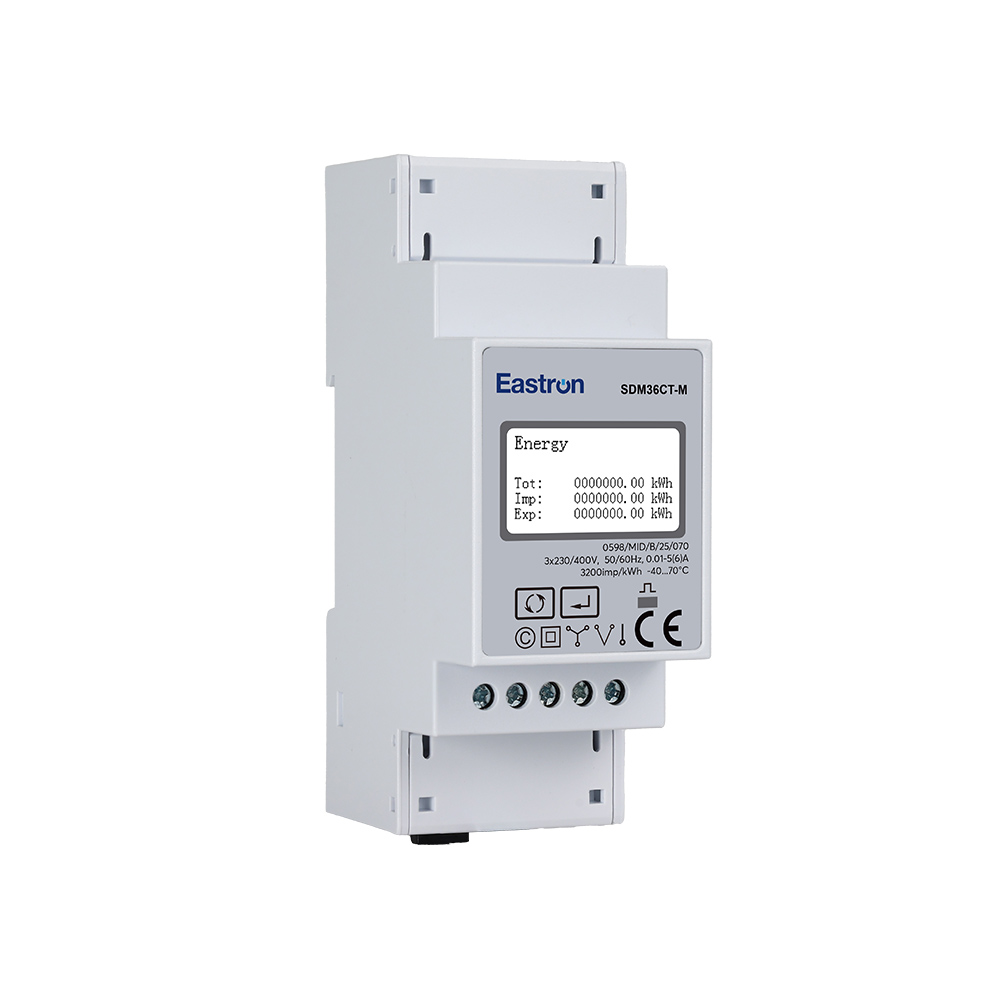

SDM36CT-M Series is Eastron's new-generation three-phase smart energy meter.
The SDM36CT-M Series can accurately measure and display various electrical parameters in single-phase two-wire, single-phase three-wire, three-phase three-wire, and three-phase four-wire power systems, including voltage, current, power, frequency, active energy, reactive energy, forward energy, reverse energy, and total harmonic distortion. Energy is measured in kWh and kVArh. It is suitable for real-time power monitoring systems, featuring multi-functionality, versatility, high stability, and long service life.

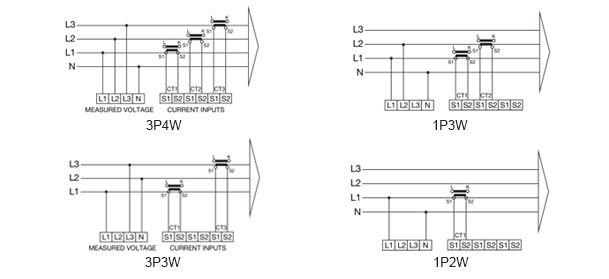

The meter uses external current transformers for connection, making it suitable for various high and low voltage power grids, with a maximum current of up to 9999 A and a maximum voltage of up to 500KV. The SDM36CT-M Series is equipped with an RS485 communication interface, supporting a maximum comunication rate of 115.2k
bps for remote data transmission. The minimum communication interval can be as short as 100 milliseconds, making it an ideal choice for power energy monitoring. Parameters can be set via touch buttons on the panel, offering easy operation with password protection.
The SDM36CT-M Series features two pulse outputs, with one output having configurable pulse constant, pulse width, and pulse type.
