Single Phase RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System

  • Single Phase  RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System
  • Single Phase  RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System
  • Single Phase  RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System
  • Single Phase  RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System
  • Single Phase  RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System
  • Single Phase  RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System
  • Single Phase  RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System
  • Single Phase  RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System

ESCT-RJ-1 Series

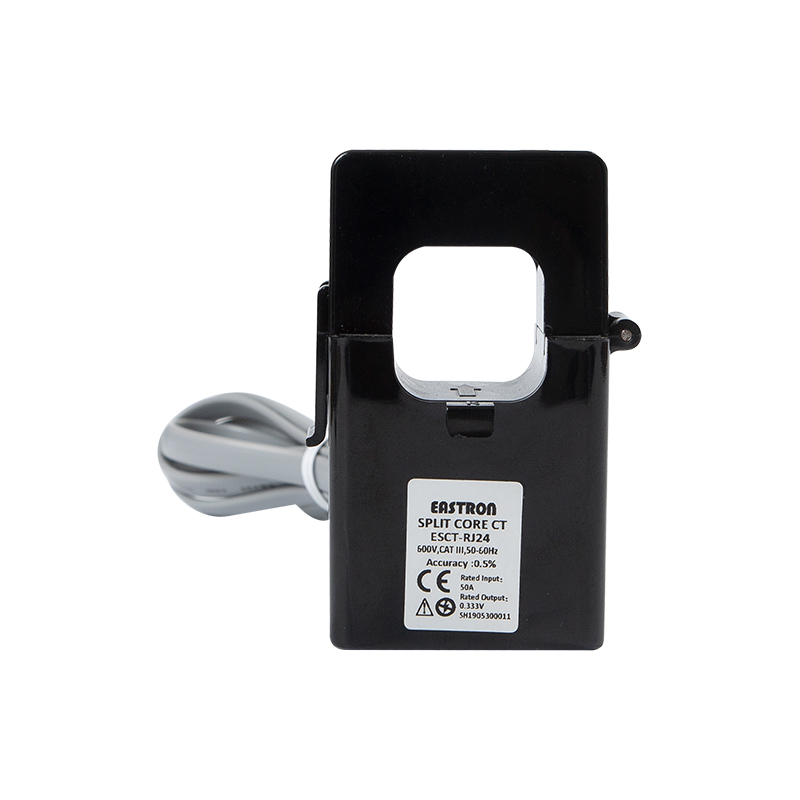

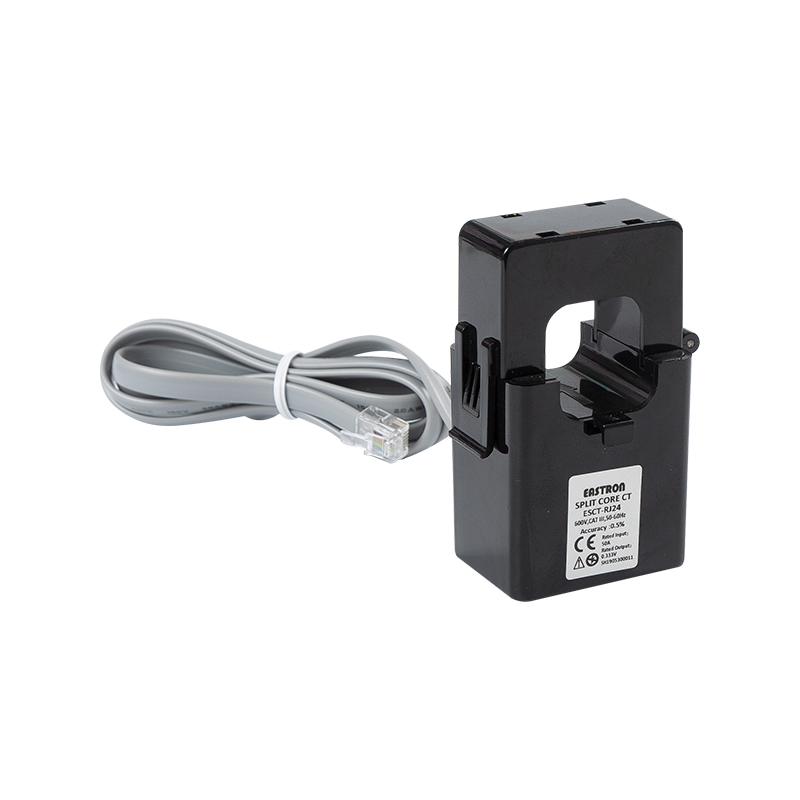

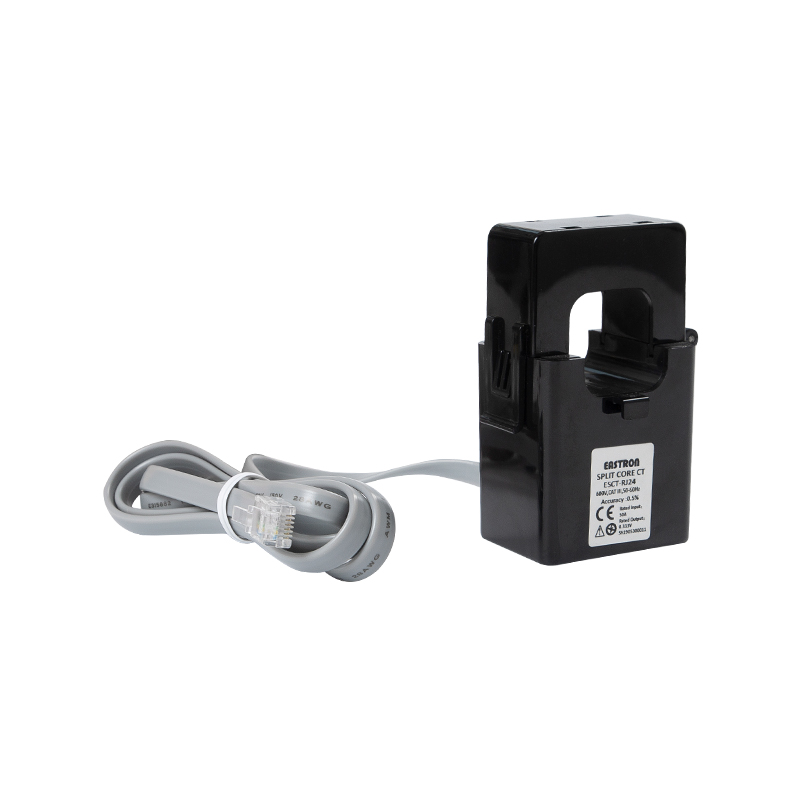

Single Phase RJ12-1 mV/mA output Split Core Current Sensor for Easy Click System

  • RJ12 plug in technology
  • Easy Installation & Error Free
  • Wide range of Primary Current

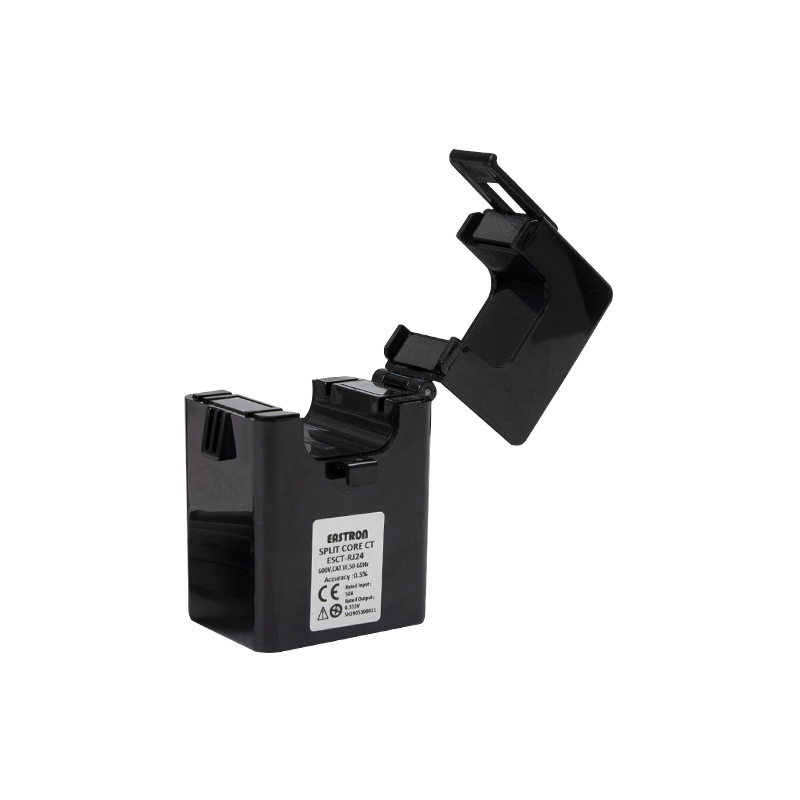

  • Split Core Type, without disconnecting wires

The Eastron ESCT-RJ-1 Series is single phase RJ12 mV/mA output split core Current Sensor for easy click system. It including 4 size of CTs, which are ESCT-RJ16, ESCT-RJ24, ESCT-RJ36 and ESCT-RJ50. Primary current range available from 50A to 1200A.

Compared with the traditional screw terminals, the ESCT-RJ-1 Series CTs are using RJ12 socket for quick connection and to eliminate wiring error, enables fast and easy installation.

Model Primary
Current
Secondary
Output
Accuracy
ESCT-RJ16 5A mV or mA 0.5 or 1
10A mV or mA 0.5 or 1
50A mV or mA 0.5 or 1
100A mV or mA 0.5 or 1
150A mV or mA 0.5 or 1
ESCT-RJ24 10A mV or mA 0.5 or 1
50A mV or mA 0.5 or 1
100A mV or mA 0.5 or 1
250A mV or mA 0.5 or 1
100A mV or mA 0.5 or 1
ESCT-RJ36 20A mV or mA 0.5 or 1
100A mV or mA 0.5 or 1
250A mV or mA 0.5 or 1
400A mV or mA 0.5 or 1
600A mV or mA 0.5 or 1
ESCT-RJ50 200A mV or mA 0.5 or 1
250A mV or mA 0.5 or 1
300A mV or mA 0.5 or 1
400A mV or mA 0.5 or 1
500A mV or mA 0.5 or 1
600A mV or mA 0.5 or 1
700A mV or mA 0.5 or 1
800A mV or mA 0.5 or 1
1000A mV or mA 0.5 or 1
1200A mV or mA 0.5 or 1

Model Primary
Current
Accuracy
ESCT-RJ325 60A Class 0.5 or 1
100A Class 0.5 or 1
120A Class 0.5 or 1
125A Class 0.5 or 1
150A Class 0.5 or 1
160A Class 0.5 or 1
200A Class 0.5 or 1
ESCT-RJ335 60A Class 0.5 or 1
125A Class 0.5 or 1
150A Class 0.5 or 1
200A Class 0.5 or 1
250A Class 0.5 or 1
ESCT-RJ345 250A Class 0.5 or 1
300A Class 0.5 or 1
400A Class 0.5 or 1
500A Class 0.5 or 1
600A Class 0.5 or 1
630A Class 0.5 or 1
ESCT-RJ370 600A Class 0.5 or 1
630A Class 0.5 or 1
800A Class 0.5 or 1
1000A Class 0.5 or 1
1200A Class 0.5 or 1

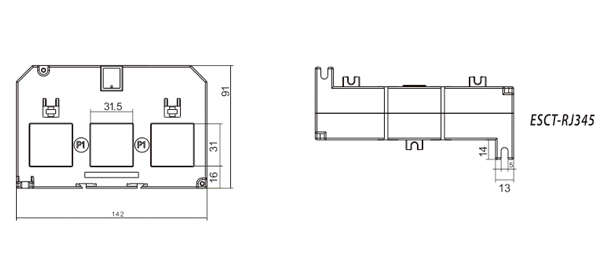

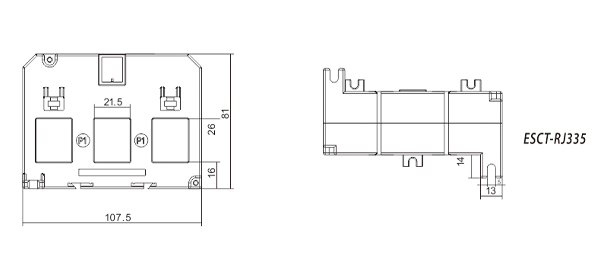

Wiring and Dimension [mm:]

Dimension [mm:]

Dimensions

Dimension [mm:]

Dimensions
