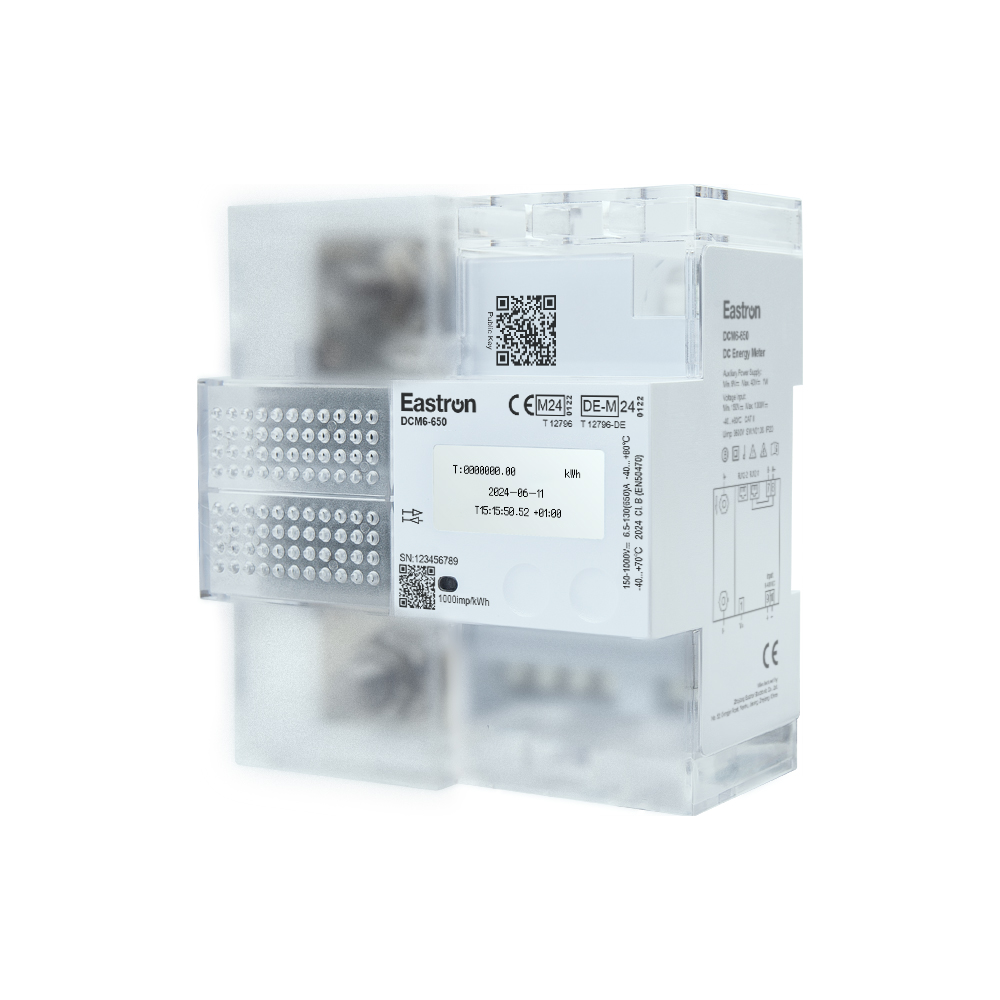

DCM6-650 belongs to the DCM6 Series. It is a PTB(Eichrecht) and MID approved DC energy meter designed for measurement within an EV Charger station. The meter support Max. 650A current load. It has a dedicated micro-controller for encryption function in order to comply with Eichrecht, the German Mess-EV regulation. Furthermore, all charging processes are stored within the internal data storage of the DC meter.
Another model in DCM6 Series is DCM6-200, which support Max. 200A current load.
| Voltage | |
| Umax | 1000V DC |
| Umin | 150V DC |
| Auxiliary power supply voltage | 9-40V DC |
| Current | |
| Ist (Starting current) | 0.52A |
| Imin(Minimum current) | 6.5A |
| Itr (Current) | 13A |
| Iref (Normal current) | 130A |
| Imax(Maximum current) | 650A |
| Accuracy | |
| Class | 1 |
| Display | |
| LCD | Dot Matrix |
| Life Cycle | >12 Years |
| Serial Output | |
| Type | 2xRS485 (RTU) |

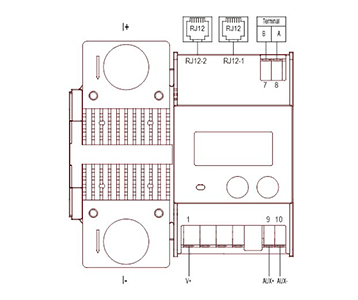

| Ports | 2 xRJ12+1 plug-in terminal |
| RS485 interface | |
| 4800~115200bps(19200bps default) 8N1(Settable) |
