External display module for DCM6/3 series meter

  • External display module for DCM6/3 series meter
  • External display module for DCM6/3 series meter
  • External display module for DCM6/3 series meter
  • External display module for DCM6/3 series meter

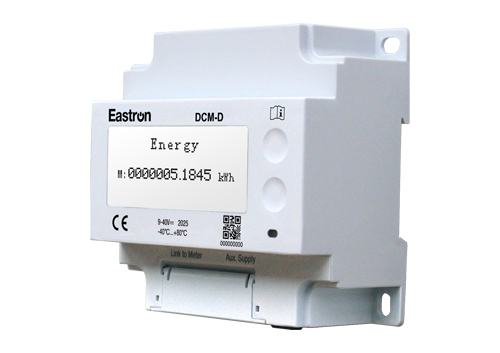

DCM-D

External display module for DCM6/3 series meter

  • Power Supply Input 9~40V DC
  • RJ12 Data Cable
  • Display the Energy Meter's Values

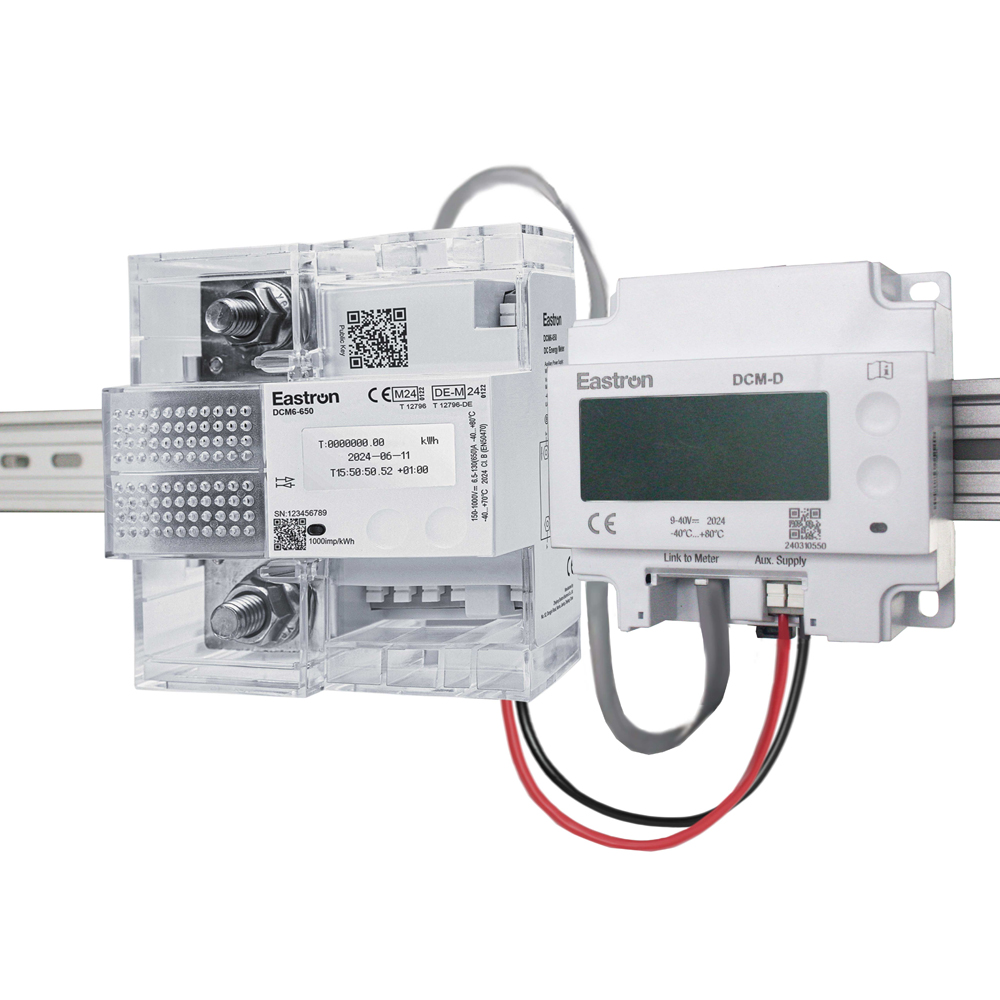

External display DCM-D is an additional device to display the energy meter’s values. It is connected to the DCM energy meter by a RJ12 data cable, which provide more flexibility for installation, and more convenience for operation. Billing relevant information are also available on the display. The display is dot matrix type with backlit. There are two buttons on front panel for data checking and configuration.

Technical parameters

Power supply

9~40V DC

Power consumption

<1.5W

Working temperature

-40℃ to +80℃

Communication port

RJ12, 115200bps, 8N1

Bluetooth

V5.1

Optional Communication

Ethernet Modbus TCP

Installation

Din rail mounted & Screw mounted

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

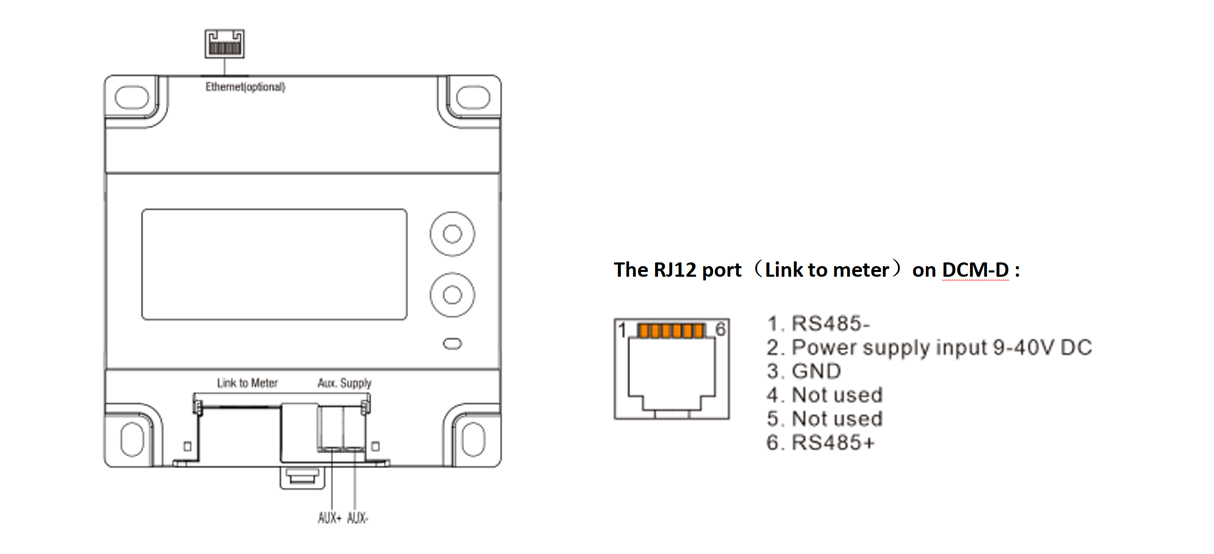

Wiring diagram

Wiring and Dimension [mm:]

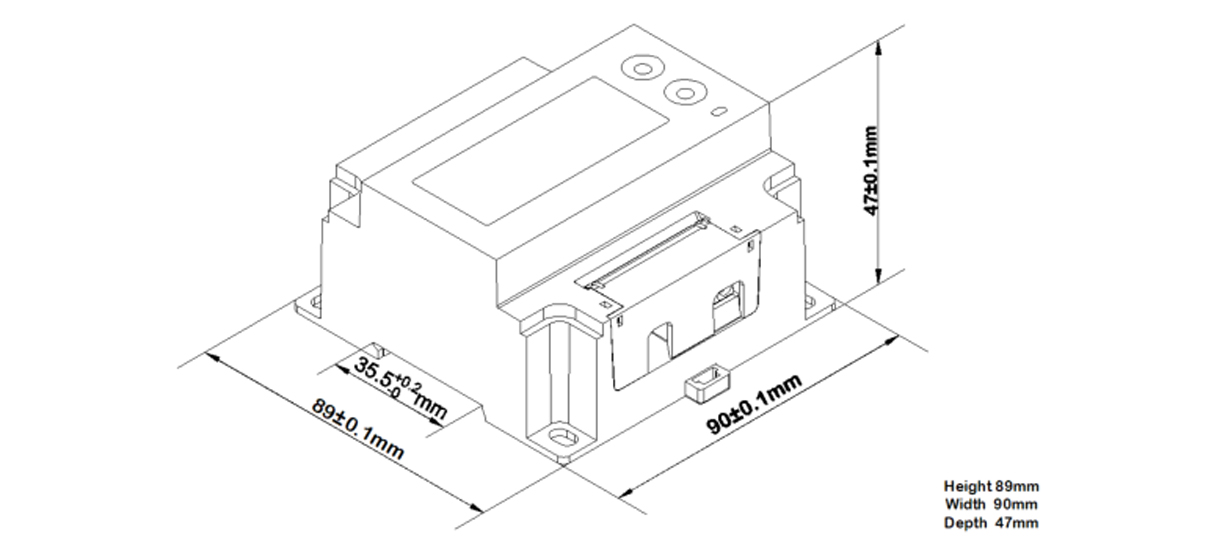

Dimensions
