We develop and produce high performance electricity meters, power analyzers, current sensors, communication modules and management systems. Display & Concentrator Module for MCS Solution Manufacturers and Factory
Data Display
Parameter Configuration
Communication Gateway
Built-in Website
+86-400-996-9296
MCS-D offers local data visualization for MCS-I (current), MCS-E (current) and MCS-U (voltage) modules. Functioning as a data concentrator, it collects and stores module data over MCS-BUS. With an Ethernet port, it acts as a gateway and serves as the control unit for parameter configuration of MCS-I, MCS-E and MCS-U.
|
Parameter |
Specification |
|
Power supply |
Powered by MCS- U module via MCS- BUS |
|
Dielectric strength |
2KV for 1 minute |
|
Mechanical Characteristics |
|
|
Weight |
≈265g |
|
IP Degree of Protection (IEC 60529) |
IP51 Front Display IP20 Whole Meter |
|

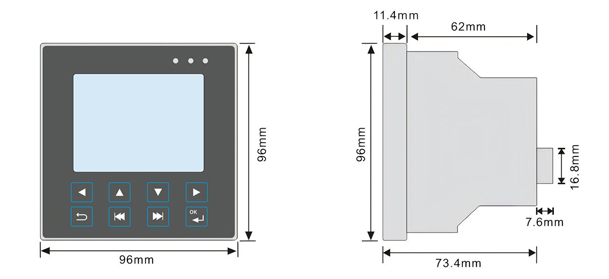

Dimensions (WxHxD) |
96 x 96 x 73.4 mm |
|

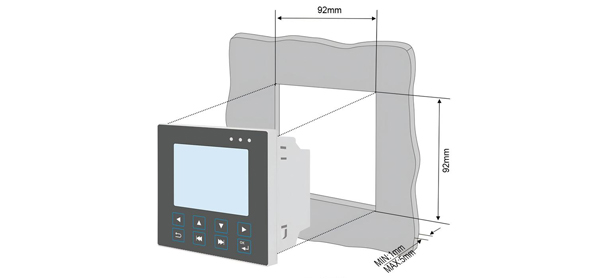

Mounting |
Vertical Panel Mounted |
|
Display |
TFT colour |
|
Material of Meter Case |
Self-extinguishing UL 94 V-0 |
|
Mechanical Environment |
M1 |
|
Electromagnetic environment |
E2 |
