Current/Power/Energy Measurement
RJ12 Interface for External CT
Over-current Alarm
1x3-phase or 3x1-phase loads
+86-400-996-9296

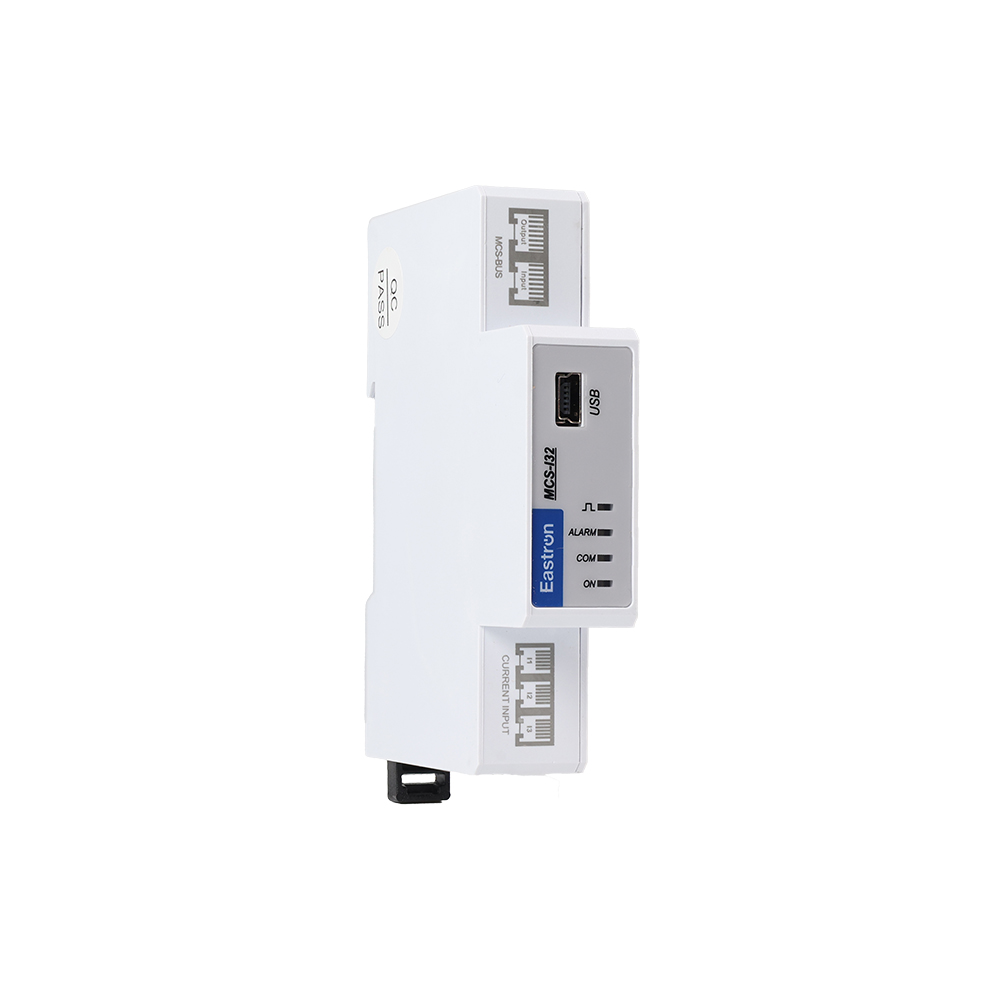

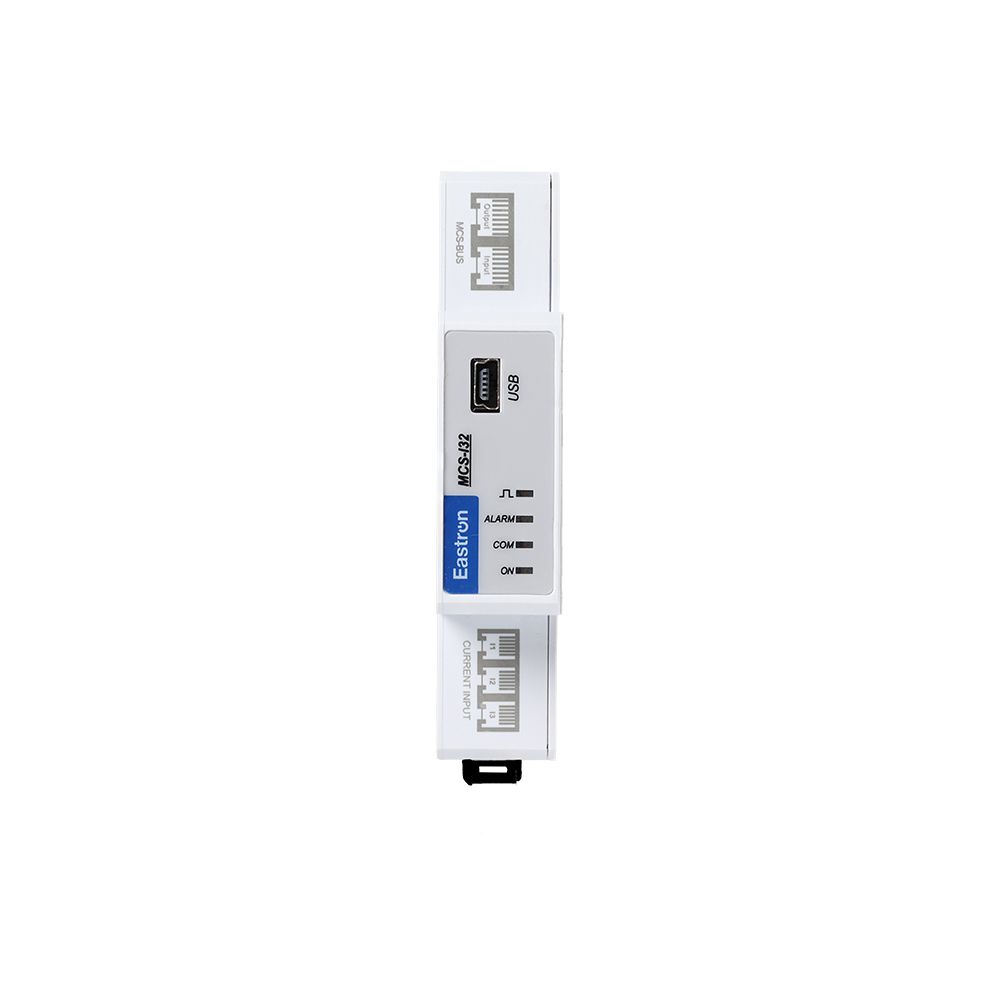

MCS-I is the current input module in the "Multi-click" solution. It measures current, power, energy consumption on single phase and three phase loads. It connects to the MCS-U and other MCS-I / MCS-E or MCS-F modules via RJ45 MCS-BUS, connects to current transformers via RJ12. Moreover, a Maximum of 32 units three phase or 96 units single phase circuits can be connected after by MCS-BUS.
|
Technical Parameters |
||
|
Accuracy |
Current |
±0.5% |
|
Active Power |
±1% (10%Ib~Imax) |
|
|
Reactive Power |
±2% (10%Ib~Imax) |
|
|
Apparent Power |
±1% (10%Ib~Imax) |
|
|
Active Energy |
Class 1 IEC 61557-12 |
|
|
Reactive Energy |
Class 2 IEC 61557-12 |
|
|
Input Current |
100mV |
|
|
Over Current Withstand |
30 Imax for 0.01s |
|
|
Pulse Output |
1000imp/kWh |
|
|
Insulation Capabilities |
AC Voltage Withstands |
3KV for 1 minute |
|
Impulse Voltage Withstands |
6kV – 1.2µS waveform |
|
|
Power Consupmtion |
≤ 2W/10VA |
|
|
Mechanical Characteristics |
|
|
Weight |
≈56g |
|
IP Degree of Protection (IEC 60529) |
IP20 Whole Meter |
|

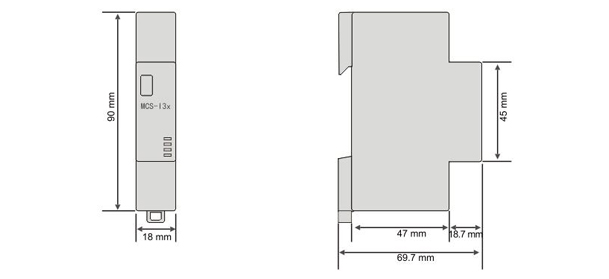

Dimensions (WxHxD) |
18 x 90 x 70 mm |
|
Mounting |
DIN Rail 35mm |
|
Material of Meter Case |
Self-extinguishing UL 94 V-0 |
|
Mechanical Environment |
M1 |
|
Electromagnetic environment |
E2 |
