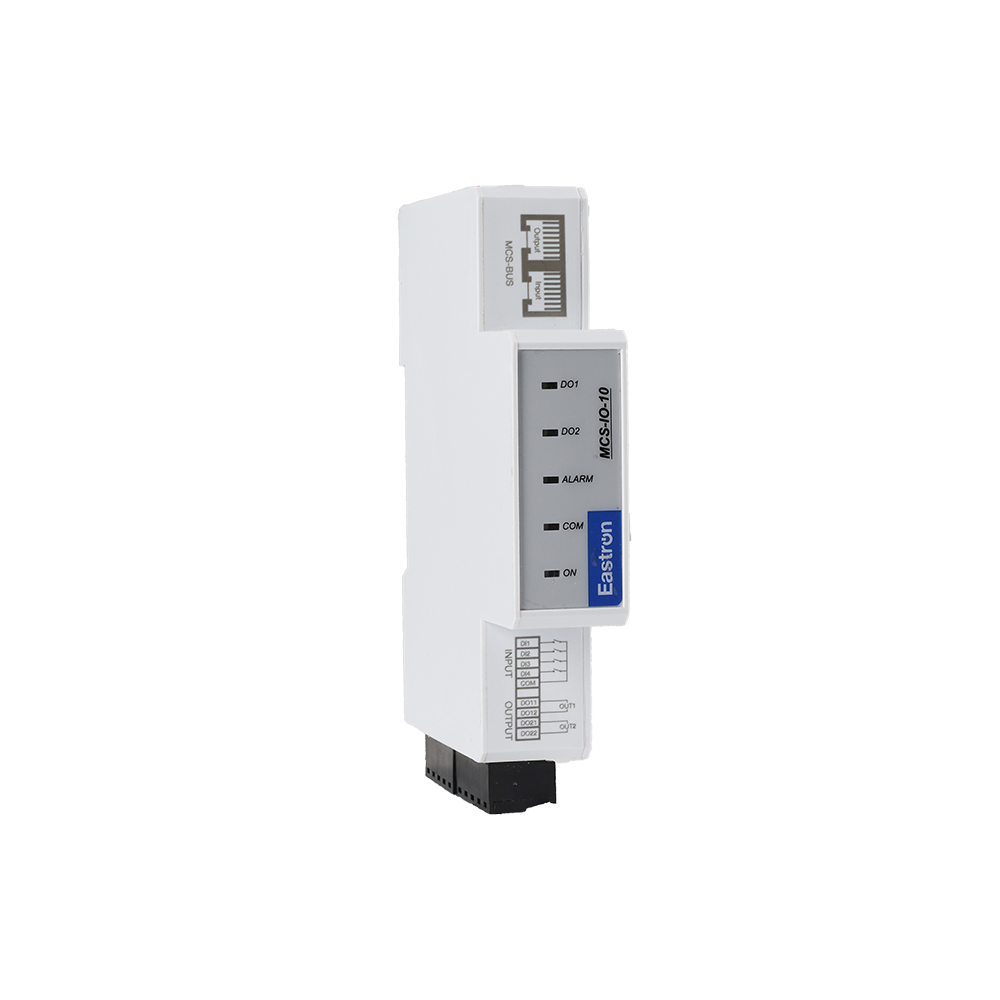

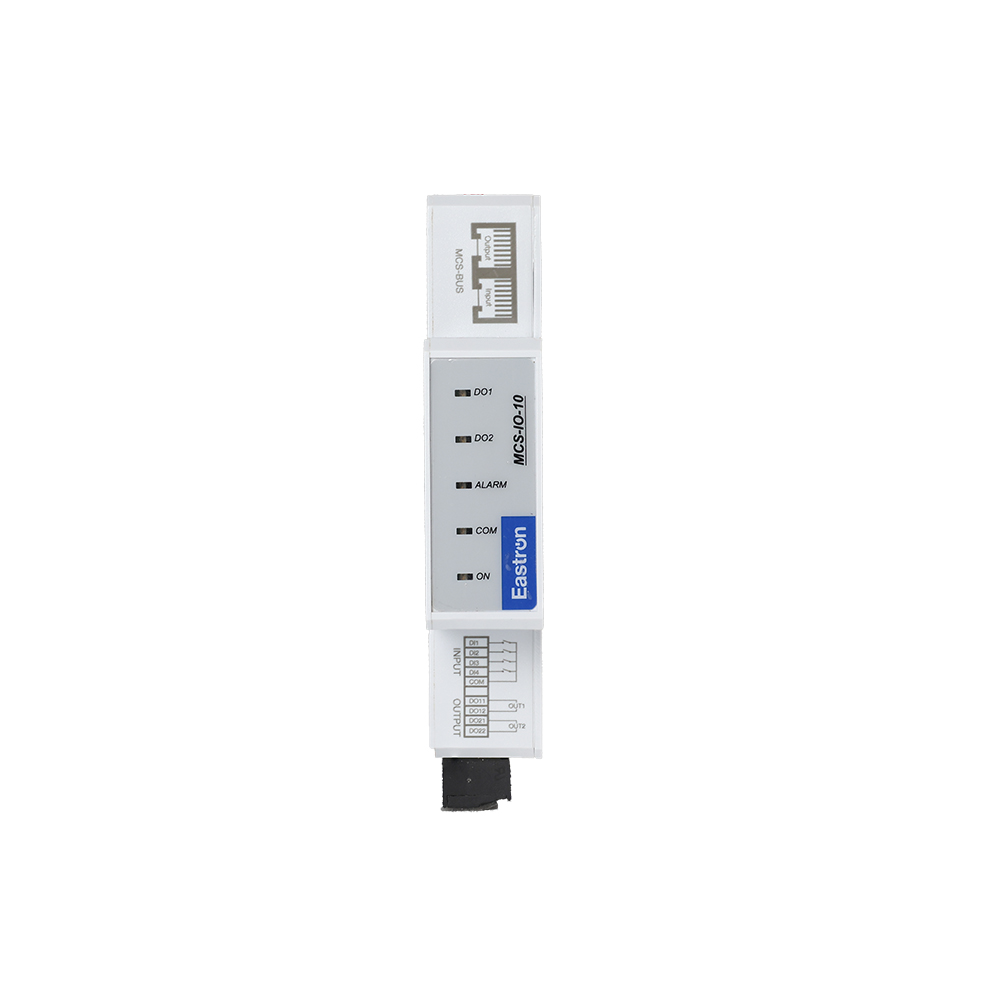

The MCS-IO is a functional module equipped with 4 Digital Inputs (DI) and 2 Digital Outputs (DO) or 2 analog inputs (AI). It connects to the MCS-U and other MCS-I current module via RJ45 MCS-BUS. The MCS-IO module requires an MCS-I module to operate its alarm functionality.
The MCS-IO has the functionality of alarms. Once the measured value of a selected parameter is over the limit of alarm level, the MCS-IO's alarm LED flashes and it will send alarm information to the display module. The alarm levels can be set through MSC-D module or through RS485 Modbus.
|
Type |
MCS-IO-10 |
MCS-IO-20 |
|
Product Name |
Digital I/O Module |
Analog Input Module |
|
Power consumption |
0.5W |
|
|
Mechanical Characteristics |
||
|
Type |
MCS-IO-10 |
MCS-IO-20 |
|
Weight |
≈61g |
≈54.5g |
|
IP Degree of Protection (IEC 60529) |
IP20 Whole Meter |
|
|

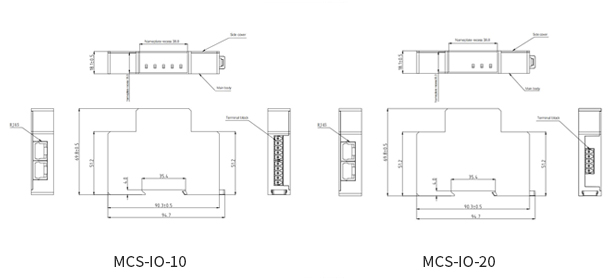

Dimensions (WxHxD) |
18 x 94.7 x 70 mm |
|
|
Mounting |
DIN Rail 35mm |
|
|
Material of Meter Case |
Self-extinguishing UL 94 V-0 |
|
|
Mechanical Environment |
M1 |
|
|
Electromagnetic environment |
E2 |
|
|
MCS-IO-10 Terminals |
||
|
Digital Output |
Quantity |
2 - Electromagnetic Relay |
|
Type/Power |
Dry Contact (Passive) Output, DC 24V |
|
|
Output Function |
Remote Control Logic Link/Latch Alarm Signals to Inputs (Threshold Exceeded, Status Change, etc.) |
|
|
Digital Input |
Quantity |
4 |
|
Type |
Isolated, with integrated 24 VDC supply, 3 mA max. |
|
|
Input Function |
Logical Status Circuit Breaker Status, Drawer Position (ON/OFF, Trip Counter) Pulse Counter |
|
|
MCS-IO-20 Terminals |
||
|
Analog Input |
Quantity |
2 Channels (AI1+, AI1- / AI2+, AI2-) |
|
Type |
0/4-20 mA Current Signal (Support 0-20mA or 4-20mA) |
|
|
Input Impedance |
≤200Ω |
|
