RJ12 terminal mV/mA output Three Phase 3-in-1 Current Sensor(CT)

View Products Contact Us
  • RJ12 terminal mV/mA output Three Phase 3-in-1 Current Sensor(CT)
  • RJ12 terminal mV/mA output Three Phase 3-in-1 Current Sensor(CT)
  • RJ12 terminal mV/mA output Three Phase 3-in-1 Current Sensor(CT)
  • RJ12 terminal mV/mA output Three Phase 3-in-1 Current Sensor(CT)

ESCT-3RJ Series (3-in-1)

RJ12 terminal mV/mA output Three Phase 3-in-1 Current Sensor(CT)

  • RJ12 plug in solution
  • Easy Installation & Error Free
  • Wide range of Primary Current
  • Cost effective three phase moulded case
Contact Us Inquiry PDF Download

400-996-9296

[email protected]

The Eastron ESCT-3RJ Series is three phase RJ12 terminal mV/mA output three phase 3-in-1 Current Sensor(CT). It including 4 type CT size: ESCT-RJ325, ESCT-RJ335, ESCT-RJ345 and ESCT-RJ370. Primary current range are from 60A to 1200A.
Compared with the traditional screw terminals, the ESCT-3RJ series CTs are using RJ12 socket for quick connection and to eliminate wiring error, enables fast and easy installation.
Model Primary Current Secondary Output Accuracy
ESCT-RJ325 60A 100mA / 100mV / 333mV Clase 0.5 or 1
100A 100mA / 100mV / 333mV Clase 0.5 or 1
120A 100mA / 100mV / 333mV Clase 0.5 or 1
125A 100mA / 100mV / 333mV Clase 0.5 or 1
150A 100mA / 100mV / 333mV Clase 0.5 or 1
160A 100mA / 100mV / 333mV Clase 0.5 or 1
200A 100mA / 100mV / 333mV Clase 0.5 or 1
ESCT-RJ335 60A 100mA / 100mV / 333mV Clase 0.5 or 1
125A 100mA / 100mV / 333mV Clase 0.5 or 1
150A 100mA / 100mV / 333mV Clase 0.5 or 1
200A 100mA / 100mV / 333mV Clase 0.5 or 1
250A 100mA / 100mV / 333mV Clase 0.5 or 1
ESCT-RJ345 250A 100mA / 100mV / 333mV Clase 0.5 or 1
300A 100mA / 100mV / 333mV Clase 0.5 or 1
400A 100mA / 100mV / 333mV Clase 0.5 or 1
500A 100mA / 100mV / 333mV Clase 0.5 or 1
600A 100mA / 100mV / 333mV Clase 0.5 or 1
630A 100mA / 100mV / 333mV Clase 0.5 or 1
ESCT-RJ370 600A 100mA / 100mV / 333mV Clase 0.5 or 1
630A 100mA / 100mV / 333mV Clase 0.5 or 1
800A 100mA / 100mV / 333mV Clase 0.5 or 1
1000A 100mA / 100mV / 333mV Clase 0.5 or 1
1200A 100mA / 100mV / 333mV Clase 0.5 or 1

Wiring and Dimension [mm:]

Dimension [mm:]

Dimensions

Dimension [mm:]

Dimensions
related products
Max. Current 600A Modbus Multi-function DC Energy Meter for EV Charging Metering

Max. Current 600A Modbus Multi-function DC Energy Meter for EV Charging Metering
MID/PTB/LNE Approved DC Electricity meter for DC EV Charging station

MID/PTB/LNE Approved DC Electricity meter for DC EV Charging station
MID Din Rail Three Phase Multi-function EV Meter for EV Charging Metering

MID Din Rail Three Phase Multi-function EV Meter for EV Charging Metering
MID Din Rail Three Phase Multi-function Energy Meter for EV Charging Metering

MID Din Rail Three Phase Multi-function Energy Meter for EV Charging Metering
MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering

MID Din Rail Type Single Phase Multi-function Energy Meter for EV Charging Metering

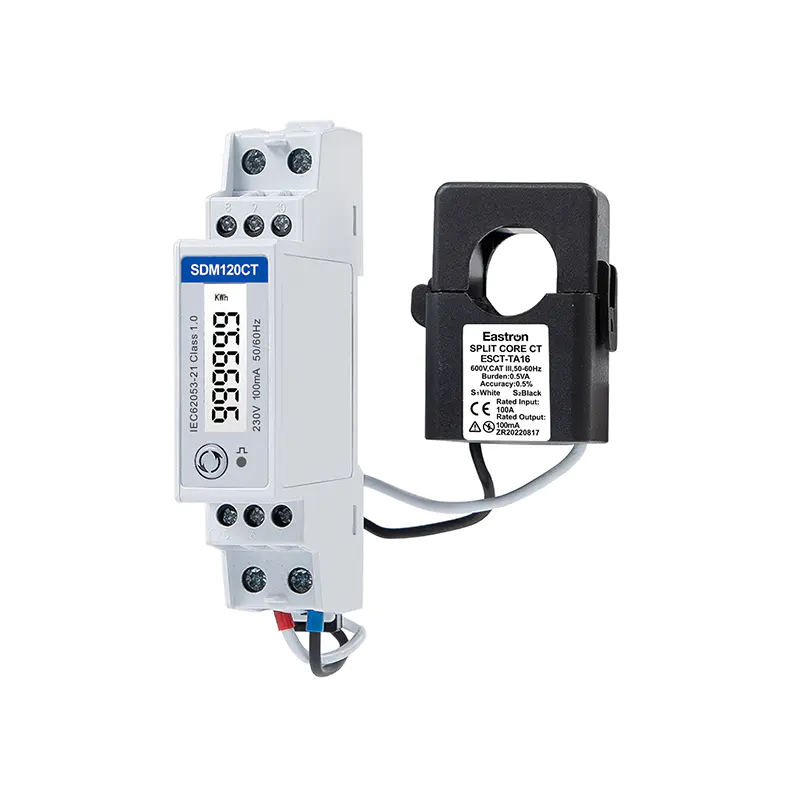

MID CT Type Din Rail Single Phase Multi-function EV Meter for EV Charging Metering
