What is a Current Transformer Meter?

In electrical power systems, accurate measurement of current is fundamental for monitoring energy consumption, ensuring operational safety, preventing equipment overload, and enabling efficient energy management. One of the most reliable devices for achieving this in high-current or high-voltage circuits is the current transformer (CT) meter. A CT meter is specifically designed to work with current transformers to measure large currents indirectly, offering a combination of safety, precision, and scalability.

Understanding Current Transformer Meters

A current transformer meter does not measure current directly like a standard ammeter. Instead, it relies on current transformers (CTs) to convert high current values into lower, more manageable levels that can be safely read by the meter.

For instance, a CT with a ratio of 500:5 steps down a primary current of 500 amperes to 5 amperes on the secondary side. The CT meter reads this reduced current and multiplies it by the ratio to display the actual current in the circuit. This setup allows accurate measurement without exposing the meter or operator to high current levels.

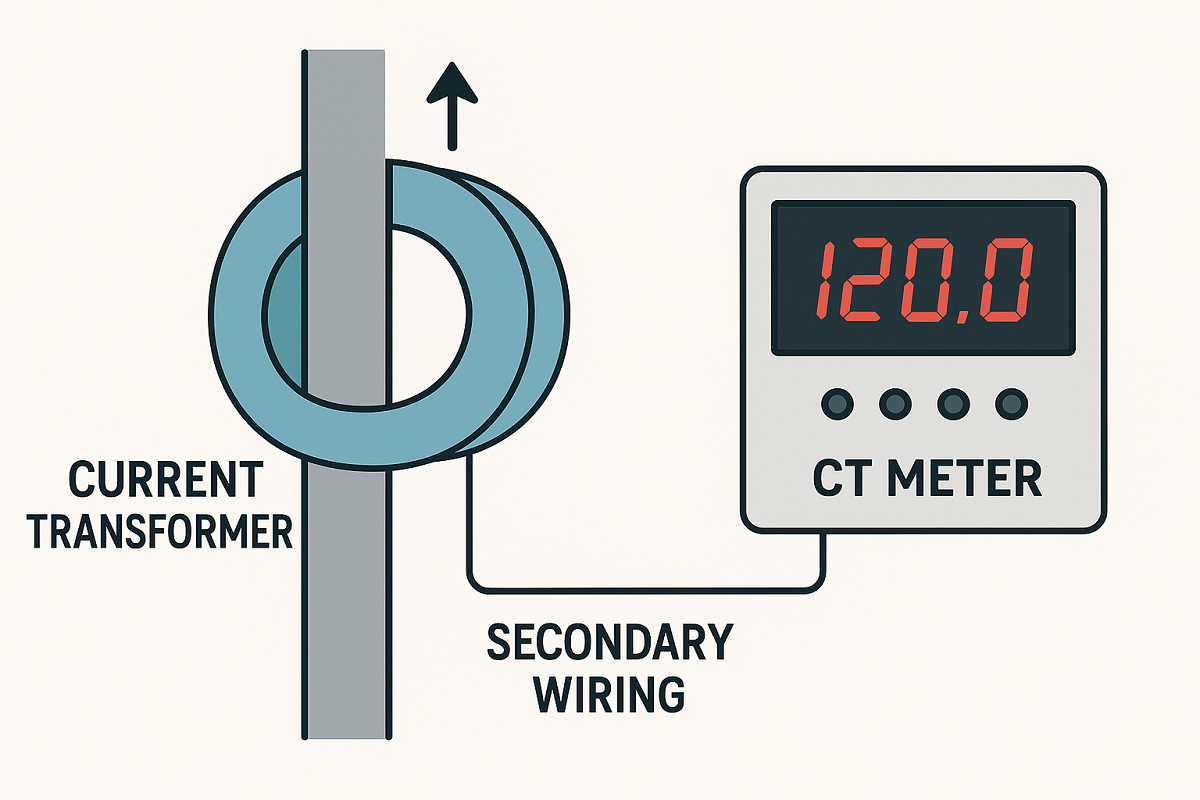

Core Components of a CT Meter System

A typical CT meter system comprises the following components:

1. Current Transformers (CTs)

   • Function: Step down high primary currents to a safe secondary current.
   • Structure: Typically a toroidal or split-core design surrounding the conductor.
   • Purpose: Provide electrical isolation between high-power circuits and measuring devices.

2. CT Meter

   • Receives the secondary current from CTs.
   • Calculates and displays real-time current, and often includes additional functions such as voltage, active power, reactive power, and energy consumption.
   • Modern digital CT meters may include communication modules for integration with SCADA systems or energy management platforms.

3. Secondary Wiring

   • Connects the CT secondary output to the meter.
   • Proper gauge and insulation are essential to maintain accuracy and safety.

How Current Transformer Meters Work

The operation of a CT meter involves several steps:

1. Current Flow in the Primary Circuit: High current flows through the main conductor.
2. Current Reduction via CT: The CT reduces the primary current proportionally based on its ratio.
3. Transmission to the Meter: The stepped-down current flows safely to the CT meter through secondary wiring.
4. Scaling and Display: The meter interprets the reduced current and multiplies it by the CT ratio to show the actual load current.
5. Additional Calculations: Modern CT meters can also compute power factor, total energy consumption, and demand peaks.

This method ensures accurate measurements while keeping personnel and equipment safe from high currents.

Advantages of Current Transformer Meters

Applications of CT Meters

Current transformer meters are used across a variety of sectors:

• Industrial Facilities: Monitor current in motors, transformers, generators, and large production equipment.
• Commercial Buildings: Track energy consumption for accurate billing and load management.
• Utility Companies: Measure electricity usage in medium- and high-voltage networks for distribution and billing.
• Renewable Energy Systems: Monitor output from solar panels, wind turbines, and hybrid energy systems.
• Data Centers: Track critical load currents to ensure system reliability and prevent overloads.
• Public Infrastructure: Substations, airports, and transportation hubs use CT meters for energy monitoring and safety control.

Accuracy Considerations

The accuracy of a CT meter depends on multiple factors:

1. CT Class and Rating: High-precision CTs provide more accurate measurements but may be more expensive.
2. Burden Rating: The load connected to the CT secondary must not exceed its rated burden, or measurement errors will occur.
3. Phase Angle Error: For reactive power calculations, phase displacement between primary and secondary currents must be minimal.
4. Installation Practices: Proper alignment, wiring, and grounding are essential to maintain accuracy and prevent safety hazards.

Common Types of CT Meters

1. Single-Phase CT Meters: For measuring current in single-phase systems.
2. Three-Phase CT Meters: For industrial or commercial three-phase systems, capable of measuring total active, reactive, and apparent power.
3. Smart CT Meters: Equipped with digital displays, data logging, and communication capabilities for integration with energy management systems.

Limitations and Precautions

• Dependence on CT Accuracy: Any error in the CT ratio directly affects the meter reading.
• Installation Sensitivity: Incorrect CT orientation or wiring can result in reversed or inaccurate measurements.
• Overloading: Using a CT rated for lower currents than the primary load can damage the device or produce errors.
• Environmental Considerations: Extreme temperatures or moisture can affect performance unless devices are properly rated.

Conclusion

A current transformer meter is an indispensable tool for measuring electrical currents safely and accurately in high-power systems. By using CTs to step down high currents, these meters ensure operator safety, precise monitoring, and cost-effective deployment.

Their applications span industrial plants, commercial buildings, utility networks, renewable energy systems, and data centers. With proper installation, maintenance, and selection of CT ratios, CT meters provide reliable and long-lasting performance, making them a cornerstone of modern electrical measurement and energy management.

For engineers, facility managers, and utility operators, understanding the principles, advantages, and limitations of CT meters is essential for maintaining safe, efficient, and reliable power systems.
