Eastron SEM-2L Dual-channel Smart Meter: The Top Choice for Balcony PV System

Seize Australia's Energy Storage Boom – Smart Meters Are Key

As Australia's energy storage market expands and the global energy transition accelerates, residential PV storage systems are becoming a standard feature in modern households. The Eastron SEM-2L series of dual-channel energy meters is the ideal solution for Australian balcony PV systems. It enables homeowners to maximize dual subsidies from federal and state governments while securely earning VPP revenue from surplus power, effectively addressing the limitations of traditional metering equipment.

Australia's Landmark PV Storage Subsidy Takes Effect

In 2025, Australia launched a landmark PV storage subsidy: the federal government allocated AU$2.3 billion to the "Cheaper Household Batteries Program", offering up to AU$372 per kWh. A 13.5kWh system alone saves households AU$5,000 upfront.

States offer additional incentives: South Australia’s VPP (Virtual Power Plant) rewards plus federal subsidies deliver up to AU$20,650, while Western Australia’s remote-area subsidy hits AU$7,500.

Policy impact has been striking: July saw 19,592 battery installations (26% of last year’s total), with 344.1MWh added. New South Wales and Queensland lead the "one household, one storage" trend, making balcony PV+storage a residential staple.

Four Core Metering Pain Points Behind the Boom

Driven by the subsidy policy, most households are facing the dilemma of installations being easy but metering complex. The following four issues cover the practical needs of 90% of installed users:

1. Inaccurate Metering Risks Subsidy Loss: Traditional electricity meters fail to measure PV generation and battery charge/discharge accurately, leading to errors in the settlement of federal STC subsidies. In South Australia, some users have even missed VPP incentives due to metering issues.
2. Delayed Response to Reverse Power Risks Grid Compliance: Australia's power grid mandates anti-reverse power protection. However, ordinary meters have a response delay of over two seconds, which can easily trigger grid alarms due to reverse power flow and jeopardize grid connection compliance.
3. Multiple Meters Increase Costs: The requirement for separate meters for PV panels and storage batteries not only complicates wiring but also adds extra equipment costs. For apartment users, space constraints further increase the installation difficulty.
4. Lack of Data Connectivity Causes Revenue Loss: Policies explicitly require energy storage systems to be "VPP-ready". However, traditional meters cannot support real-time data transmission, preventing users from earning revenue by selling power back to the grid.

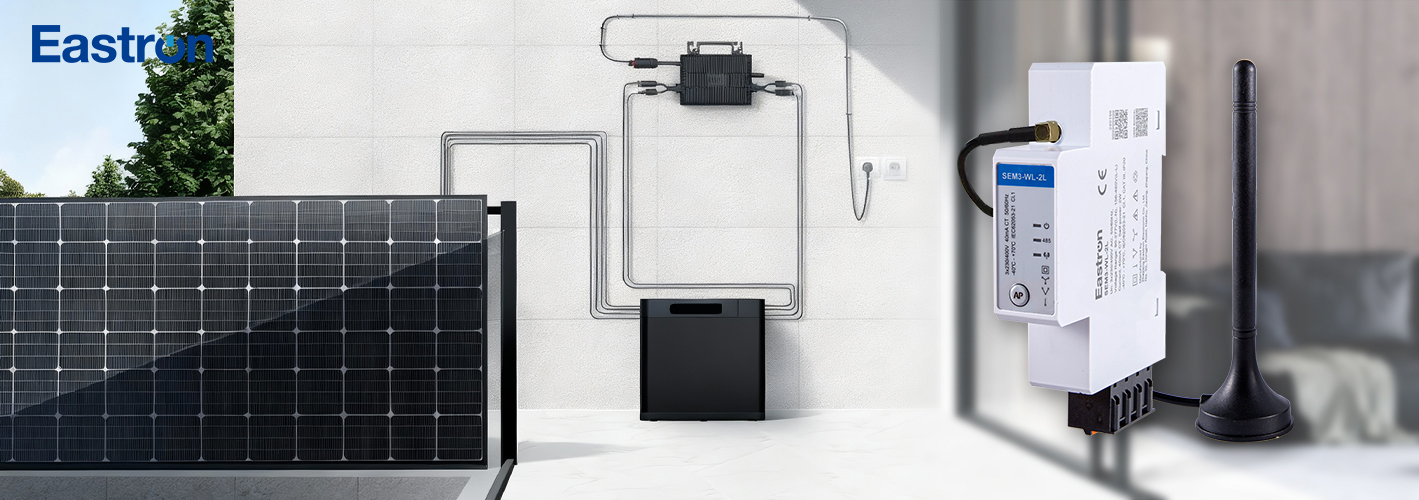

Eastron SEM-2L Dual-channel smart meter: The Energy Manager for Baconly PV System

Addressing metering challenges in Australian homes, Eastron's SEM-2L series dual-channel energy meters come in single-phase and three-phase models to suit various residential scenarios, from balcony PV to apartment energy storage:

Single-Phase Model: SEM1-M-2L & SEM1-WL-2L – Ideal for Basic Residential Use

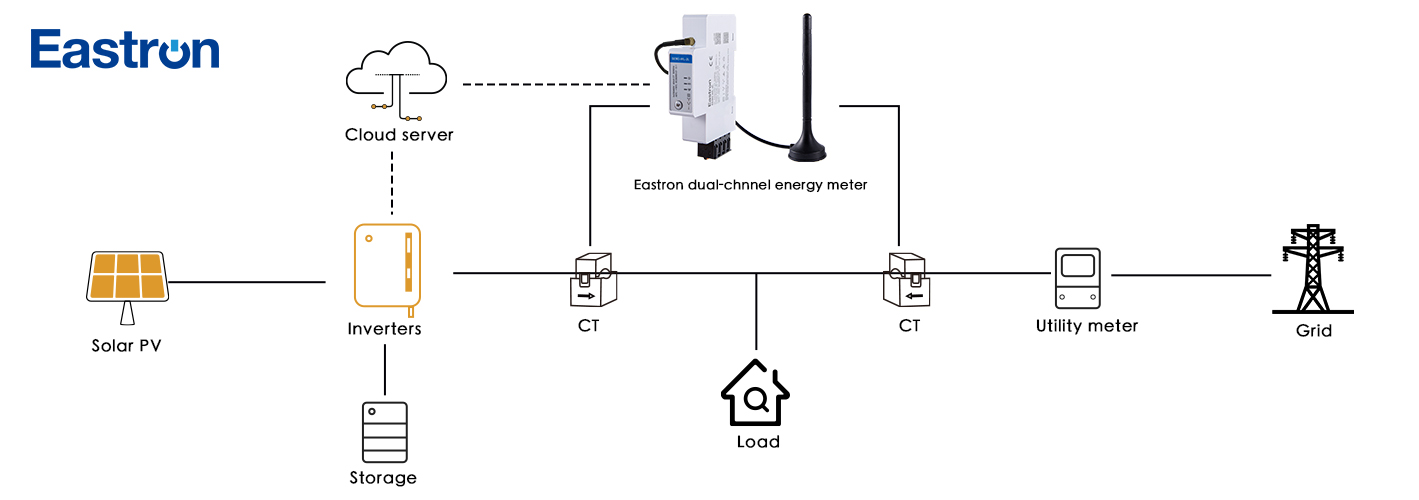

• Dual-Channel Monitoring: A single device can simultaneously monitor PV power generation and energy storage charging/discharging, eliminating the need for additional meters and reducing equipment investment by 50%.
• Compact Design: With an 18mm width, it takes up minimal space in a balcony installation or distribution box, making it ideal for small apartments and compact living spaces.

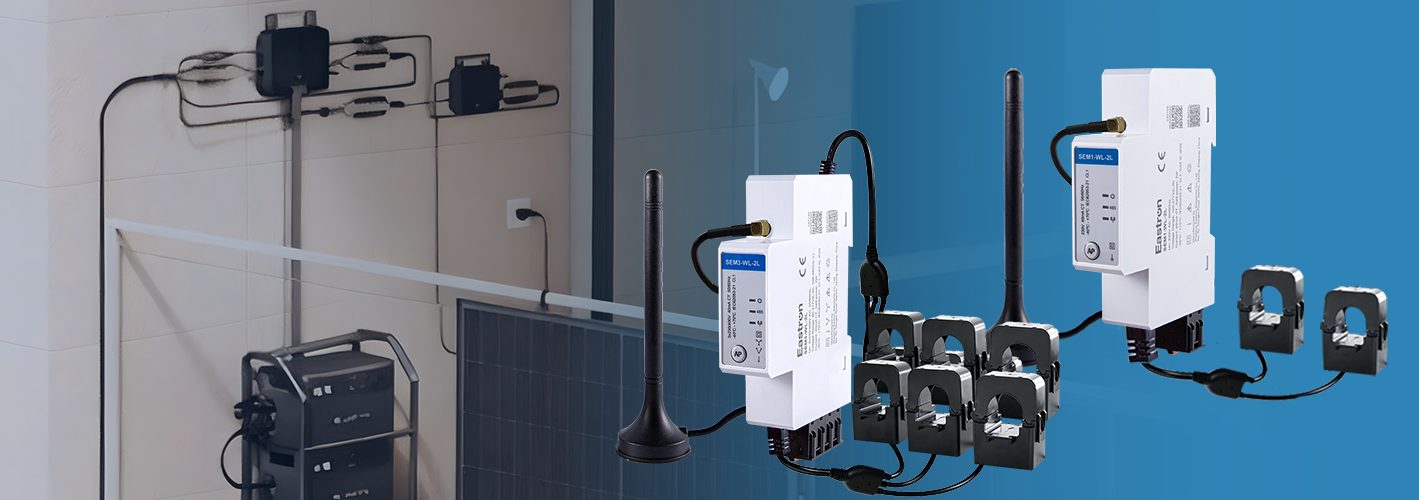

• CT Connection: Using a current transformer (CT) connection, installation can be completed without disconnecting the main circuit, reducing safety risks. It is compatible with existing residential PV storage systems without requiring shutdown or reconstruction.
• Accurate Measurement: With Class 1 accuracy, 50mS data update rate, and zero-delay anti-reverse power response, it has passed SAAcertification and meets Australian grid standards, ensuring zero errors in subsidy application data.
• Easy Installation: Featuring a plug-and-play design for simple and fast installation, it is equipped with Wi-Fi and RS485 connectivity for real-time energy consumption monitoring.

Three-Phase Model: SEM3-M-2L & SEM3-WL-2L – Suitable for Complex Residential Scenarios

• Versatile Application: Designed for apartments and larger residences, it supports multiple wiring modes (1P2W/3P3W/3P4W) and features a dedicated PV metering mode to accurately meet subsidy policy requirements.
• Space-Saving Design: With a slim 18mm width, it integrates easily into both communal apartment distribution boards and compact household boxes without encroaching on living space.
• Non-Intrusive CT Installation: Installation via Current Transformers (CTs) requires no modification to existing wiring. This is ideal for metering in shared scenarios like apartment building grids or multi-household energy storage systems, offering superior installation flexibility.
• Automatic Phase Sequence Detection: The built-in detection feature immediately triggers an alarm if a phase sequence error is found during installation. Corrective commands can be sent automatically, eliminating the need for manual adjustment and preventing rework.
• Seamless VPP Integration: Real-time data is transmitted directly to Virtual Power Plant (VPP) platforms, enabling accurate calculation of revenue from surplus power fed back to the grid. For example, users in Western Australia can additionally earn subsidies of AU$0.50–0.70 per kWh.

Learn more about Eastron SEM-2L series

SEM1-M-2L: Single phase dual-channel smart meter, RS485 Modbus RTU

SEM1-WL-2L: Single phase dual-channel smart meter, RS485 & Wi-Fi

SEM3-M-2L: Three phase dual-channel smart meter, RS485 Modbus RTU

SEM3-WL-2L: Three phase dual-channel smart meter, RS485 & Wi-Fi
