Smart X96-5S Series: The "Health Monitor" for Smart Microgrids

Addressing Microgrid Monitoring Pain Points

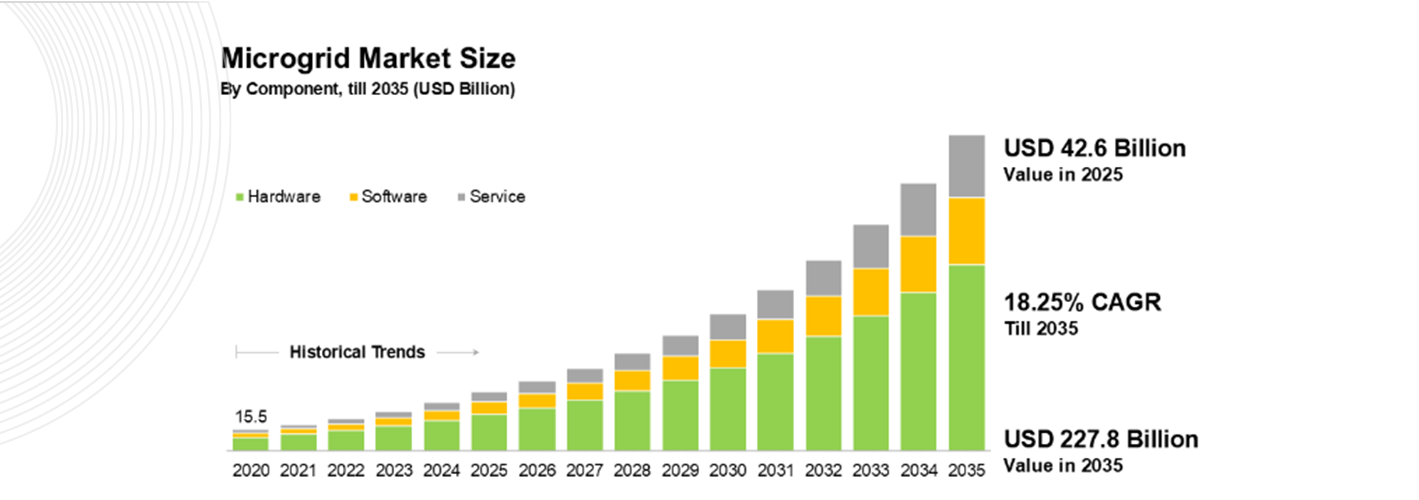

As industrial decarbonization accelerates globally, smart microgrids are becoming critical infrastructure for sustainable operations. According to Microgrid Market Report 2025-2035, the global microgrid market is projected to rise from USD 42.6 billion in 2025 and USD 227.8 billion by 2035, representing a CAGR of 18.25% during the forecast period. Yet key challenges persist:

• Rising harmonic distortion from distributed energy resources (DERs) like solar/storage
• Frequent voltage sags/swells compromising equipment safety
• Inadequate data granularity from conventional smart meters for energy optimization

Energy Monitor highlights that standard metering devices fail to deliver the deep power quality analytics required for modern microgrids – creating urgent demand for professional-grade monitoring solutions.

The Critical Role of Power Quality Analyzers

Power Quality Analyzers serve as the “health monitors” of electrical systems – fundamentally differing from basic smart meters. While conventional meters track consumption, PQAs perform comprehensive diagnostics:

• Pinpoint distortion sources through 63rd-order harmonic analysis
• Capture voltage/current transients (sags, swells, interruptions)
• Quantify critical parameters: THD (Total Harmonic Distortion), TDD (Total Demand Distortion), phase unbalance
• Enable predictive maintenance by identifying degradation patterns

These capabilities are essential for modern microgrids integrating renewables, where unstable power quality causes equipment damage, regulatory penalties, and energy waste.

Eastron Smart X96-5S Series Core Functions

Both Smart X96-5S and Smart X96-5S-L deliver three core capabilities essential for microgrid O&M scenarios, enabling enhanced safety and operational efficiency.

Precision Monitoring

• High-Accuracy Measurement: Class 0.5S/0.2S accuracy with industry-leading data reliability
• Harmonic Analysis: Supports monitoring of harmonic distortion up to the 63rd order for comprehensive power quality assessment
• Peak Value Capture: Automatically captures real-time peak values (max/min) of Current/Voltage, Active Power, Power Factor, Harmonic Parameters
• Waveform Recording: Captures waveforms of 3-phase voltages, 3-phase currents, providing critical evidence for fault diagnosis

Efficient Management

• Time-of-Use Energy Tracking: Configures multi-tariff profiles with 6 supported zones and 10 time slots, enabling cost optimization through dynamic tariff alignment
• Flexible Control: Implements DI/DO functions and triggers immediate alarms for critical events including phase loss or overcurrent faults

Maintenance Assurance

• Threshold Alarms: Monitors 24 input channels via configurable thresholds, responding to critical events, mitigating risks to equipment and personnel
• Event Tracing: Supports 30 SOE records, capturing critical operation/alarm chronologies to support root-cause diagnostics

Smart X96-5S-L: Enhanced Safety Functions

Upgraded protection beyond base model capabilities:

• Temperature Detection: Monitors temperature at defined critical points, triggers alarms for over-temperature conditions, and prevents equipment damage
• Leakage Current Monitoring: Dedicated leakage current transformer interfaces enabling leakage detection and alarms, reducing personnel shock risks

Precision Data-Driven Energy Management

Amidst rapid growth of the industrial smart microgrid equipment market, Eastron® Smart X96-5S Series Power Quality Analyzers deliver end-to-end capabilities — foundational monitoring, efficient management, and safety monitoring — empowering energy teams with complete solutions from data acquisition to decision support.

Whether deploying the base Smart X96-5S for routine monitoring or the advanced Smart X96-5S-L with reinforced safety features, both models precisely address critical pain points in microgrid operations, enabling enterprises to achieve energy conservation, consumption reduction, and data-optimized energy utilization.

Access professional resources: Explore power analyzer selection guides and smart microgrid solutions from Eastron!
