LCD Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output

  • LCD Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output
  • LCD Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output
  • LCD Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output
  • LCD Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output
  • LCD Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output
  • LCD Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output

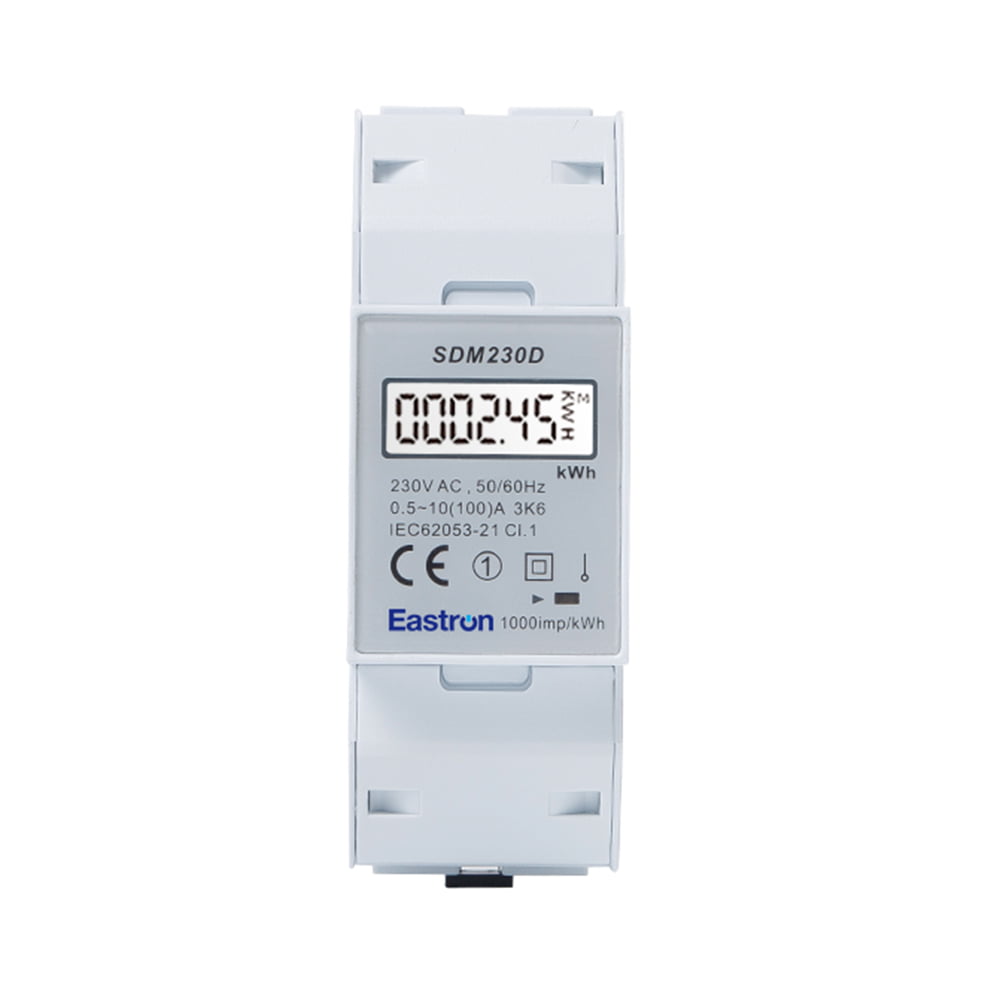

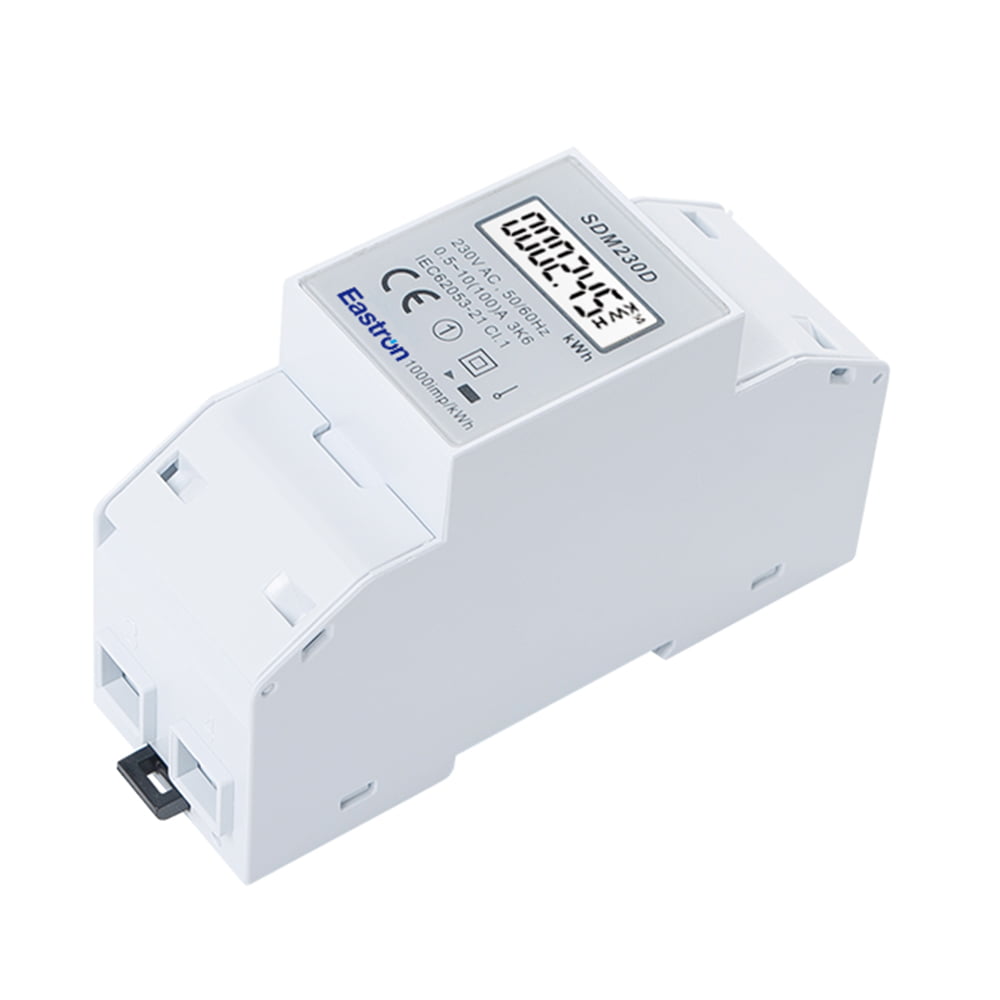

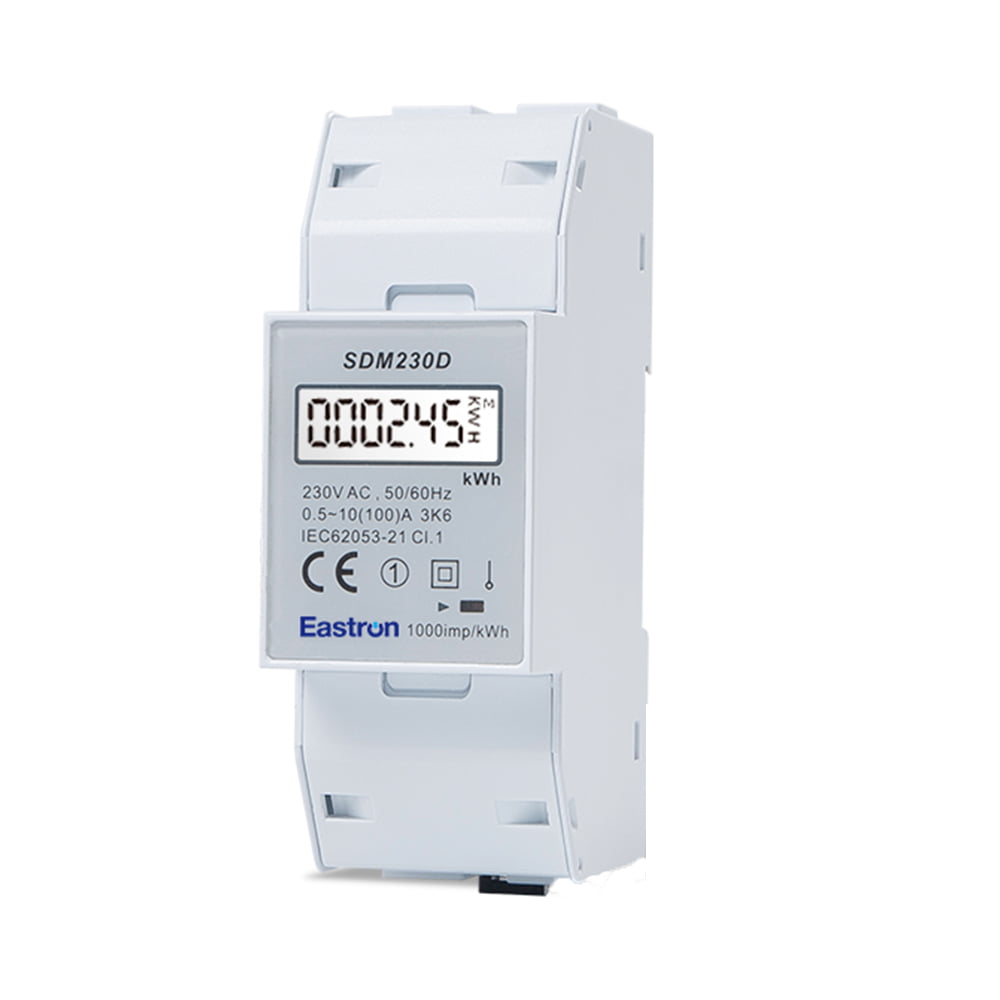

SDM230D

LCD Display 100A Din Rail Single Phase Electronic kWh meter with Pulse Output

  • Active Energy Measured
  • LCD display
  • Pulse Output
  • Max. 100A Direct Load
  • 2 Module 36mm Width
  • 1P2W

SDM230 A / D

SINGLE PHASE TWO WIRE KWH METER

The SDM230D is a Din Rail Single Phase Electronic kWh meter with Pulse Output and LCD Display.. It is a 2-(2 module 36mm width) kWh meter with Max.100A direct input. It also provides an uni-directional (anti-reverse) measurement version, which is widthly used in solar generation energy measurement.

Electrical Characteristics

Type of Measurement

RMS on single phase AC system (1P+N)

Measurement Accuracy

Energy

IEC 62053-21 Class 1.0/ EN50470-1/3 Class B





Input & Output

Input

Current

Rated Current (Ib)

10A

Max Current (Imax.)

100A

Min Current (Imin.)

0.5A

Starting Current

40mA

Voltage

Rated Voltage (Un)

230V

Operation Voltage

80% ~120% of Un

Output

SDM230A/ SDM230D

Pulse Output for active energy

Wiring and Dimension [mm:]

Wiring and Dimension [mm:]

Wiring diagram

Wiring and Dimension [mm:]

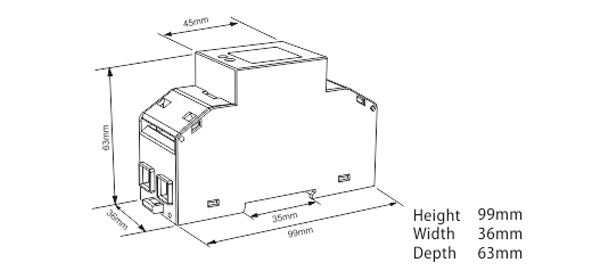

Dimensions
